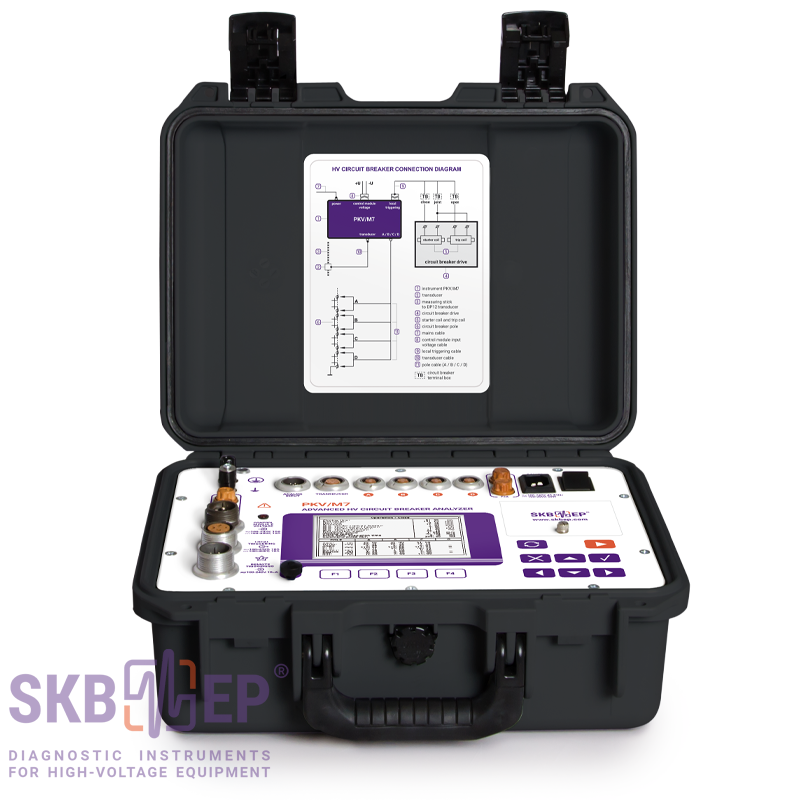

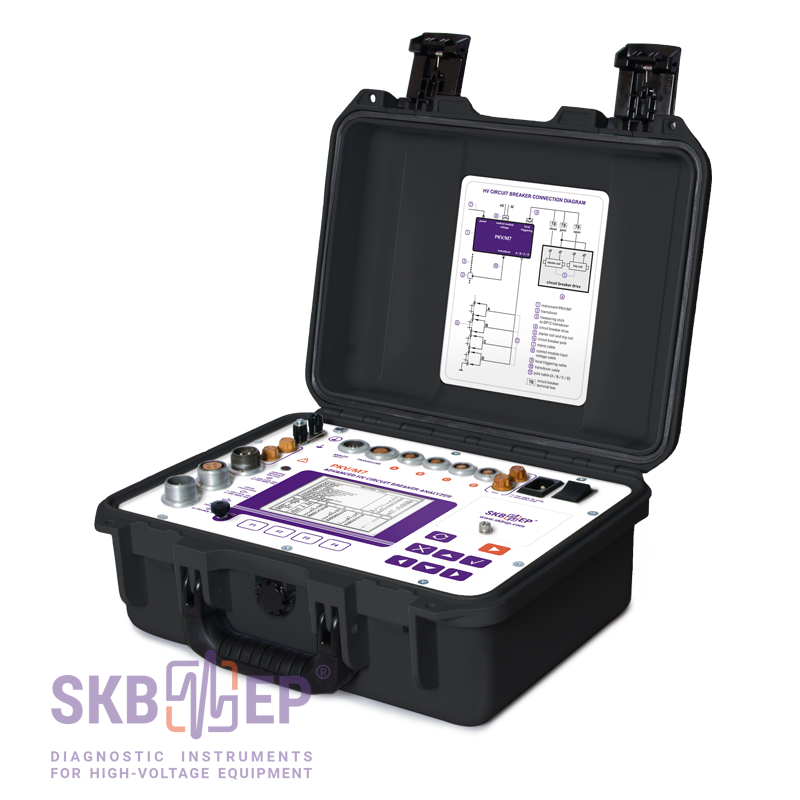

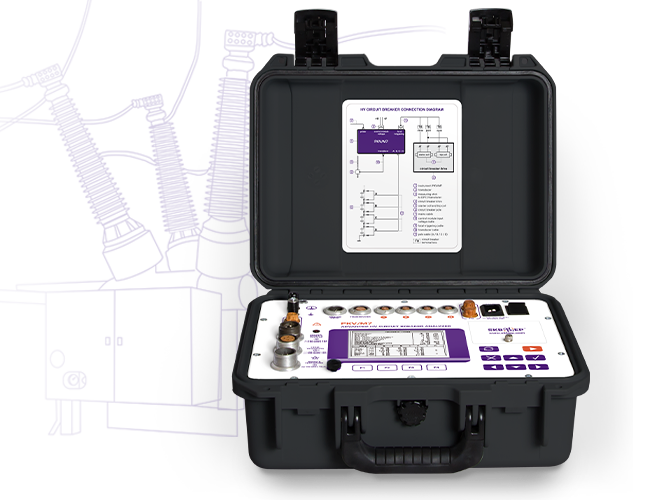

Advanced HV circuit breaker analyzer PKV/M7

Monitoring the technical condition of high-voltage circuit breakers up to 4 breaks

更多

Diagnostic of circuit breakers of all types

更多

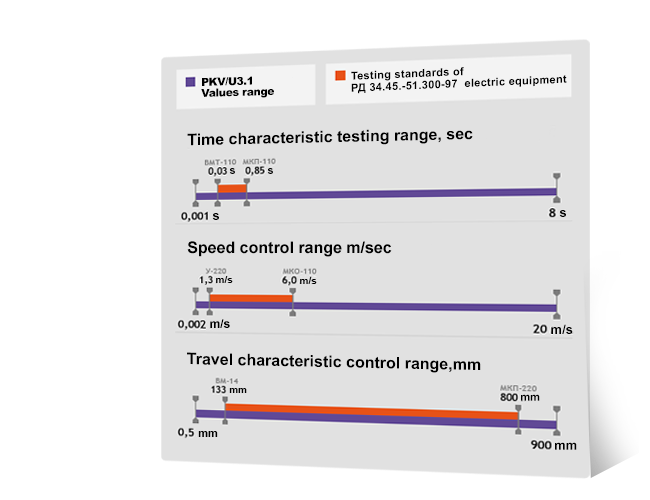

Sufficient measuring ranges for time (up to 5.2 s), speed (up to 20 m/s) and travel (up to 900 mm) intervals

更多

High measurement accuracy

更多

Table of measured values and automatic calculations

更多

Recorded graphs with detailed information on the status of the circuit breaker

更多

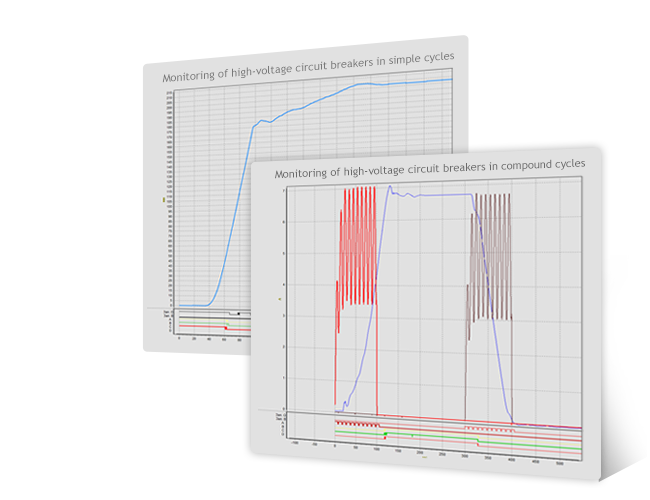

Monitoring of high-voltage circuit breakers in simple and complex cycles

更多

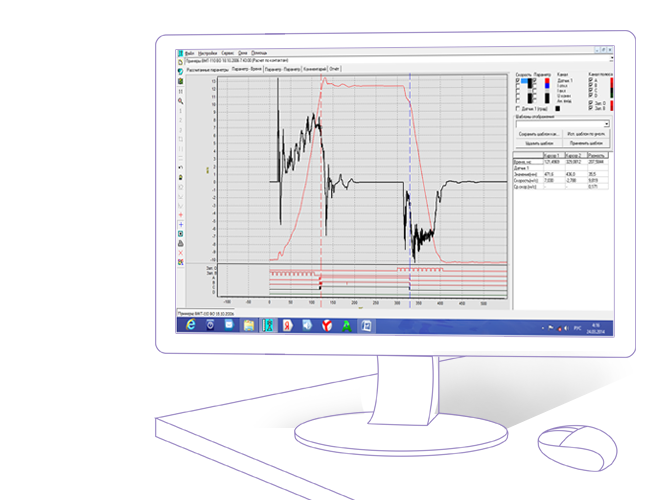

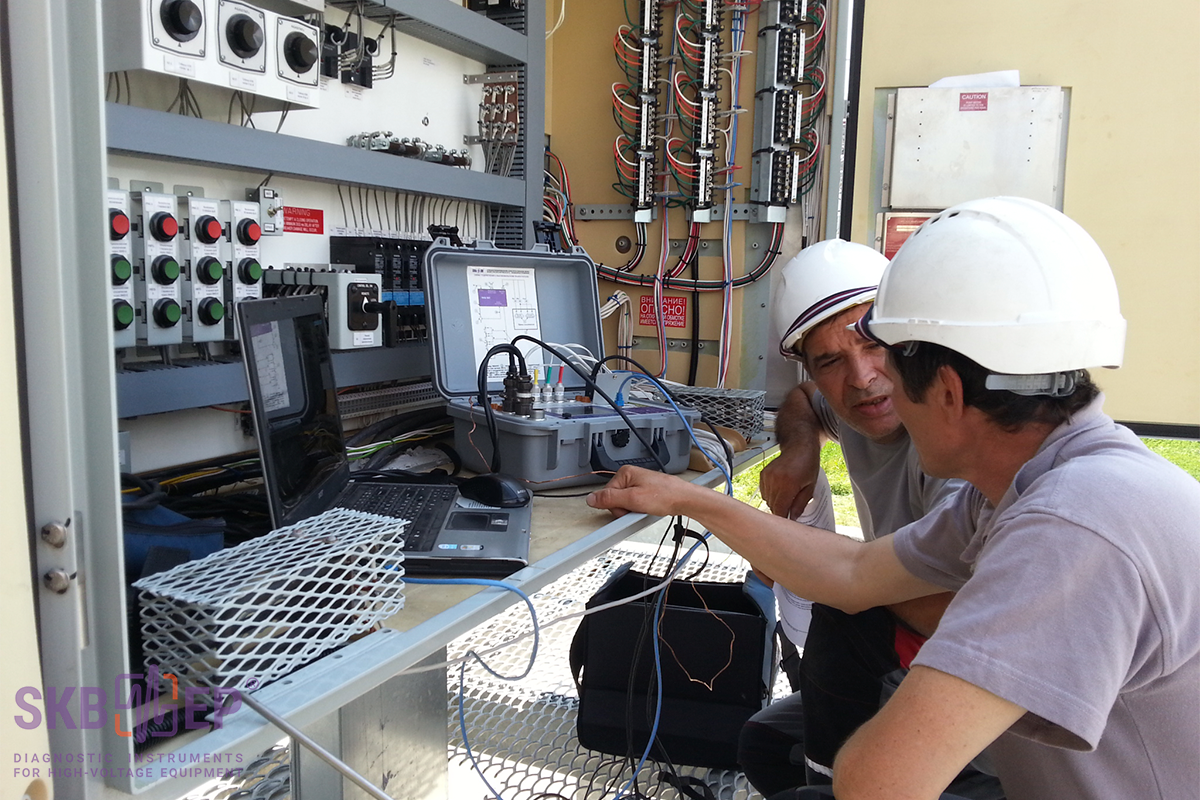

Work with diagnostic results, device control and data transfer on PC

更多

Proper operation in all weather conditions

更多

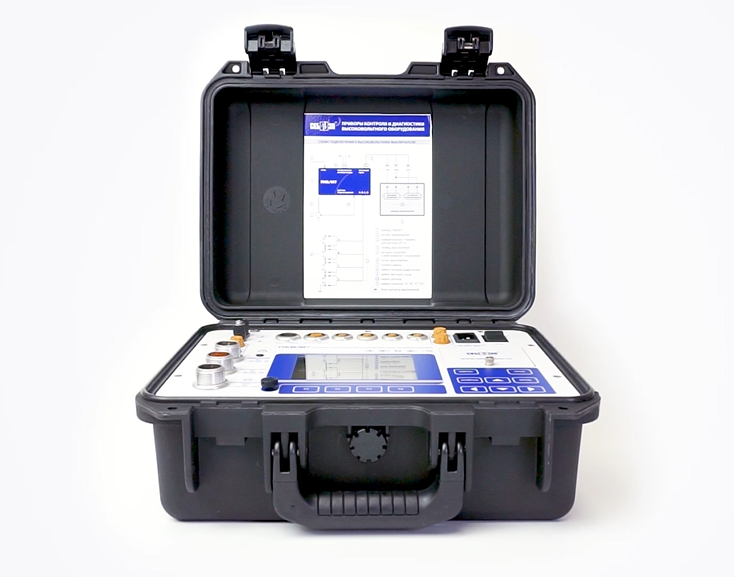

PKV/M7 is designed for monitoring time, travel, and speed parameters of moving parts of oil, vacuum, SF6, and magnetic-type circuit breakers of all types, as well as for monitoring time parameters of isolators and short-circuiting switches.

Additionally, PKV/M7 allows you to register instant values ​​of currents and voltages of control solenoid.

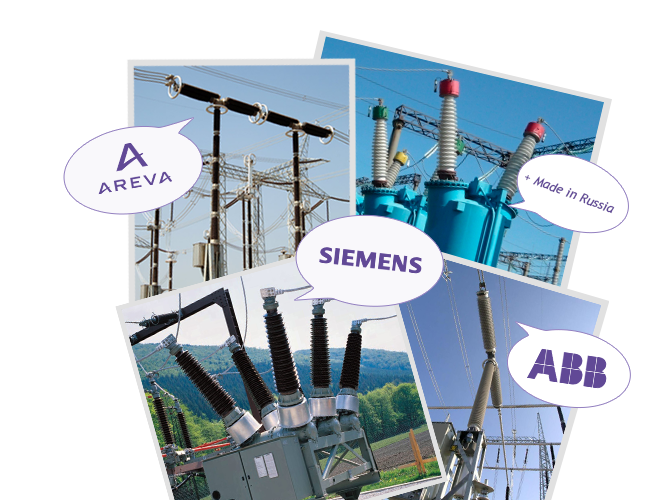

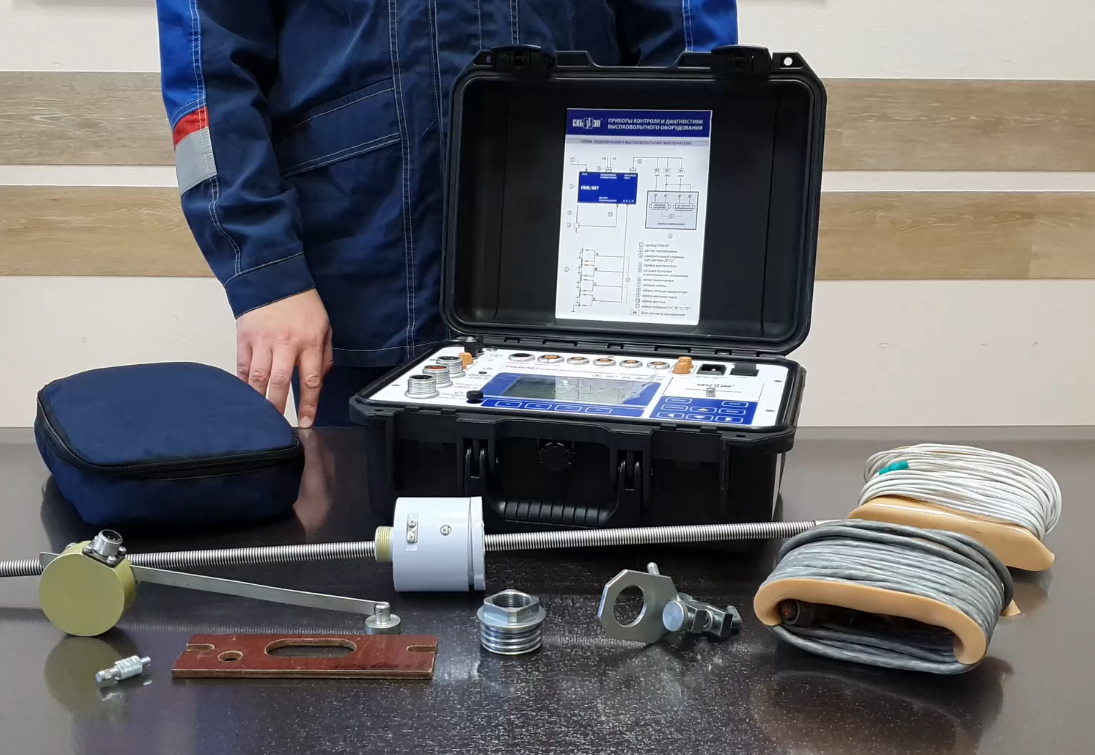

PKV/M7 instrument is complete with attachment devices for the installation of measuring transducers on all types of high-voltage circuit breakers (ABB, AREVA, ALSTOM, SIEMENS, Susol, etc.).

Adaptability of the instrument involves designing of transducer attachments to the circuit breakers and receiving of transfer function of movement from the shaft to the cross-arm. Transfer functions of kinematic chains of all circuit breakers are stored in the memory of the instrument. Adaptation work began with the first produced model of the instrument (PKV/М1) in 1995 and continues to this day.

For example, in similar devices, a shorter time range does not allow testing circuit breakers in complex cycles.

There are a lot of nuances when taking measurements on circuit breakers. It is easy to register time parameters for any type of circuit breakers, but special transducers are required to obtain travel and speed characteristics.

Incremental (discrete) type transducers are supplied together with the PKV/M7 device for measuring speed characteristics and travel parameters. They do not require adjustment or customization of conversion factors. Moreover, the transducers are accurate and easy to use.

For example, devices with cable-type transducers have a limit on the upper-speed value. The return spring does not have time to wind the cable onto the drum with rapid changes in speed. The measurement error increases. The use of laser movement transducers is not advisable because of the danger of eye damage from the laser beam during rough handling. In addition, the installation of the laser transducer is made approximately and without clamps. This leads to a high error of the measurements.

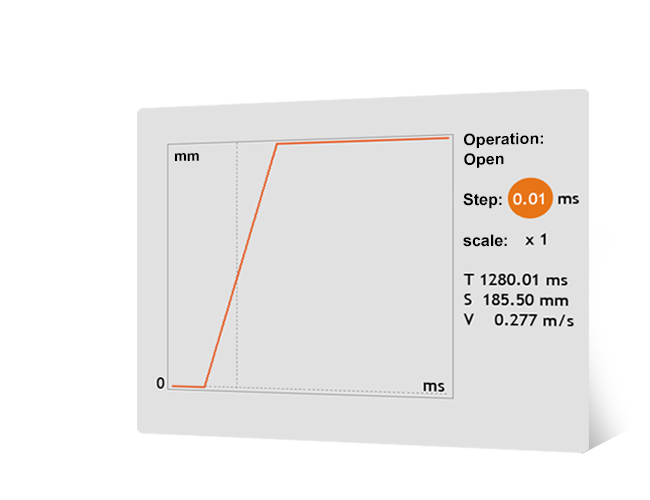

For measuring speed and travel parameters, high accuracy of measurements of time parameters (±0.1 ms), travel and speed characteristics is ensured with incremental (discrete) angular and linear movement transducers with a resolution of 0.09° and 0.5 mm.

Transducers that are often used in other devices (analogues of PKV/M7 device) are based on a potentiometer. And even under normal conditions they have a large error (up to ±1%). For example, with a maximum travel of 900 mm, such an error gives an uncertainty of ± 9 mm.

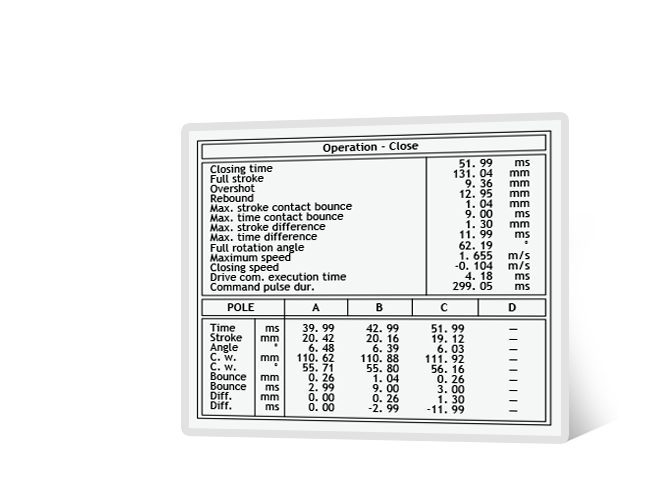

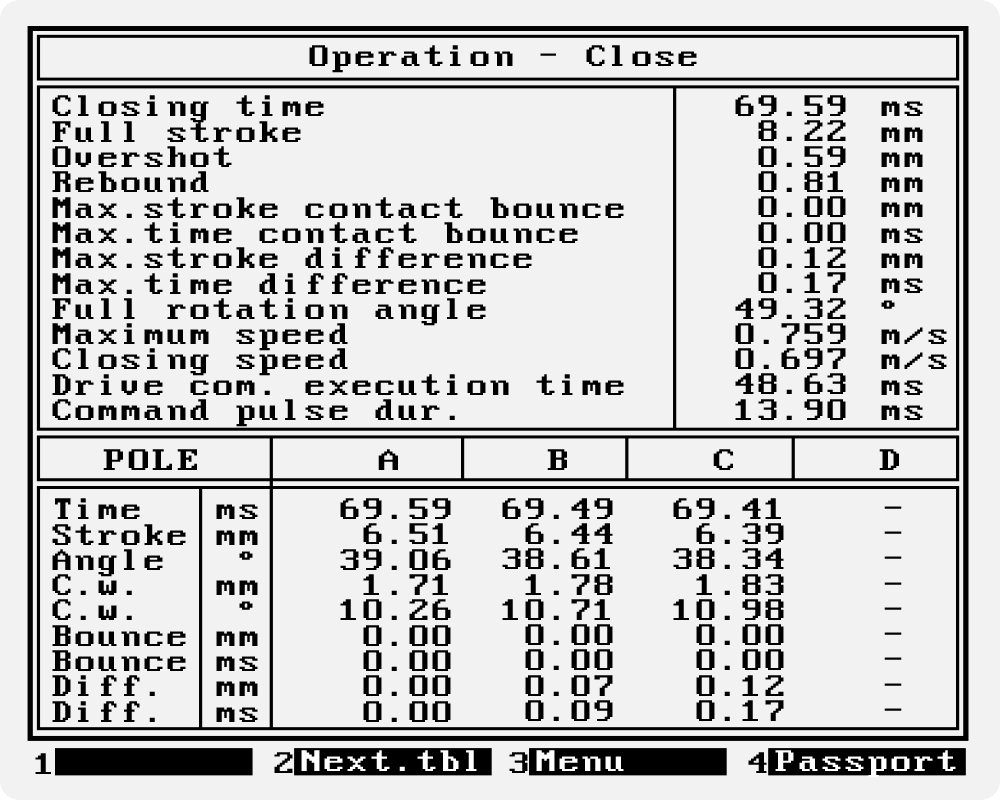

The diagnostic results ar­e displayed in a table with measured and calculated parameters for each cycle operation (when processing measurement results for complex cycles, the device automatically breaks down the cycle into sim­ple operations). The tables provide such data as:

  • Travel parameters (full travel, travel to contact closure, snatch gap, difference of operation in travel, bouncing in travel, overshot, rebound);
  • Time parameters (circuit breaker make time, circuit breaker closing time, pole closing time);
  • Speed ​​parameters (closing speed, time difference of contacts action, bouncing in time).

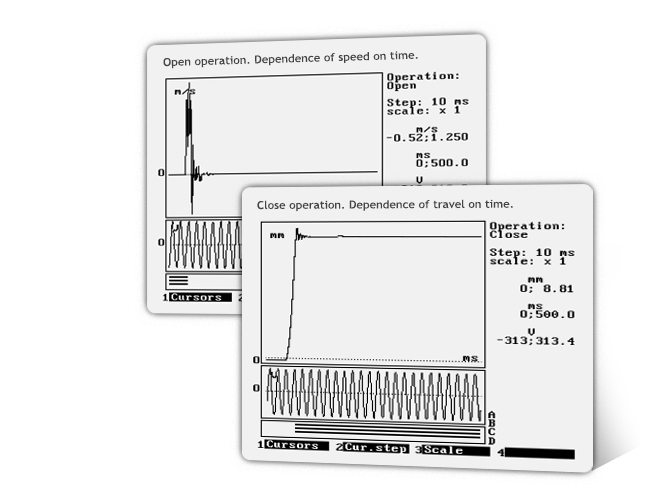

Apart from tables with measured parameters, more detailed information on circuit breaker status can be derived from recorded graphs that are navigated using cursors and scaling.

The instrument registers:

  • dependence of spe­ed on time and travel;
  • dependence of currents and voltages of electromagnets on time and travel;
  • diagrams of clo­sing / opening processes of the contacts.

The type of graphs is determined by the state of all links (levers, springs, rods, axes, traverses, dampers, etc.) of the kinematic chain of the mechanism that controls the closing / opening of the circuit breaker contacts. And the occurrence of a malfunction in at least one of the links (increase in play, loosening of the spring, increased friction, failure of the damper, etc.) changes the form of the graph from the normal form of a working circuit breaker immediately. It allows to identify its current or incipient malfunctions at an early stage by using a non-demountable method.

PKV/M7 is equipped with a power control module to control drives of switching devices both DC and AC, and enables to perform both simple operations and complex cycles, including life tests.

PKV/M7 is an independent device for diagnostic and data analysis, which does not require third-party equipment.

All settings, calculations and graphics can be performed on a graphic b/w LCD display (320 x 240 pixels).

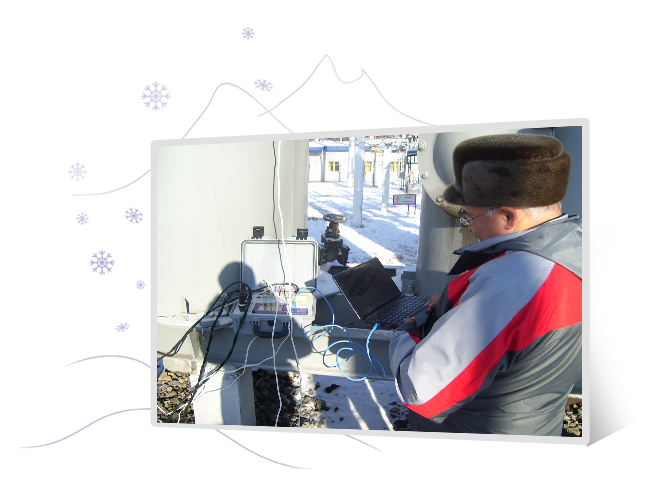

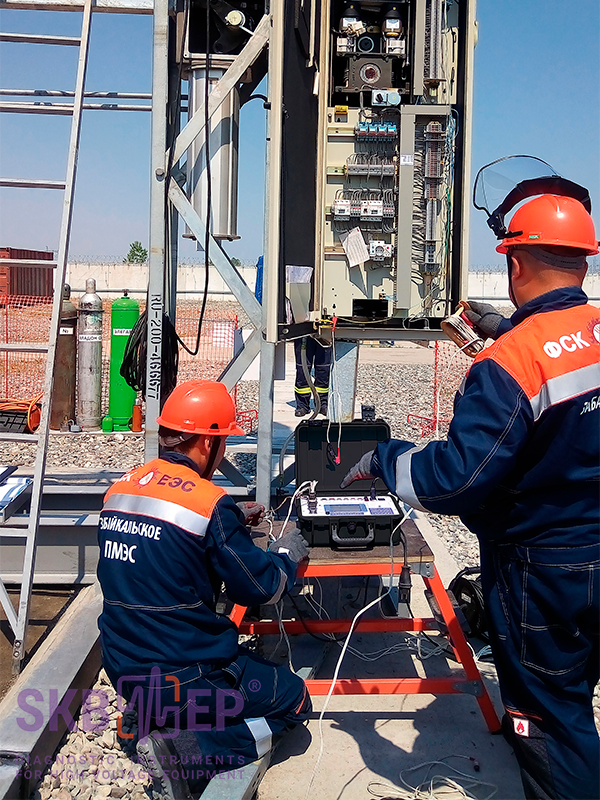

If you have to carry out diagnostic in difficult weather conditions you can be sure that PKV/M7 will provide you with the most accurate results as it operates properly in the temperature range from -15°С to +40°С.

规格

Additional complete set (on order)

照片 项目,索引 应用
Measuring stick
  • Measuring stick
  • SKB012.03.00.000
    SKB012.03.00.000-01
  • Measuring stick
  • SKB012.03.00.000
    SKB012.03.00.000-01

Measuring stick in a case. To be used together with linear movement transducer DP12 (length - 550 mm or 1,000 mm // 700 mm in standard complete set).

Transducer cable
  • Transducer cable
  • SKB010.06.00.000-02
  • Transducer cable
  • SKB010.06.00.000-02

For connecting linear (DP12) or angular (DP21) movement transducer to the instrument. Cable insulation – silicone (length – 12 m // in standard complete set – 7 m).

Cable for voltage measurement by
  • Cable for voltage measurement by "Analog input" channel
  • SKB026.19.00.000
  • Cable for voltage measurement by "Analog input" channel
  • SKB026.19.00.000

For measuring voltage in the range between 0 - 12 V and -6 - +6 V. Equipped with М5 screw end caps. Rubber insulation (length – 2.5 m).

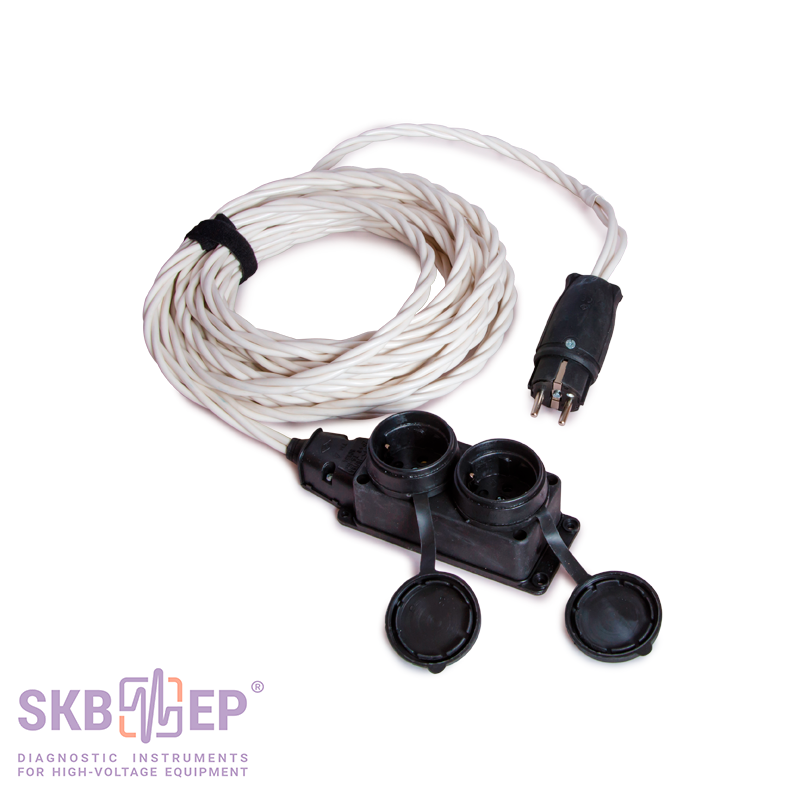

Power cable adapter
  • Power cable adapter
  • SKB010.25.00.000-01
    SKB010.25.00.000-02
  • Power cable adapter
  • SKB010.25.00.000-01
    SKB010.25.00.000-02

It is required for DC drive control of high-voltage circuit breaker at the local triggering. Power cable adapter with a rectifier up to 32 А (modification 2). Connecting to the network with a europlug. Temperature range: -25ºС - +40ºС (length – 5 m, 10 m).

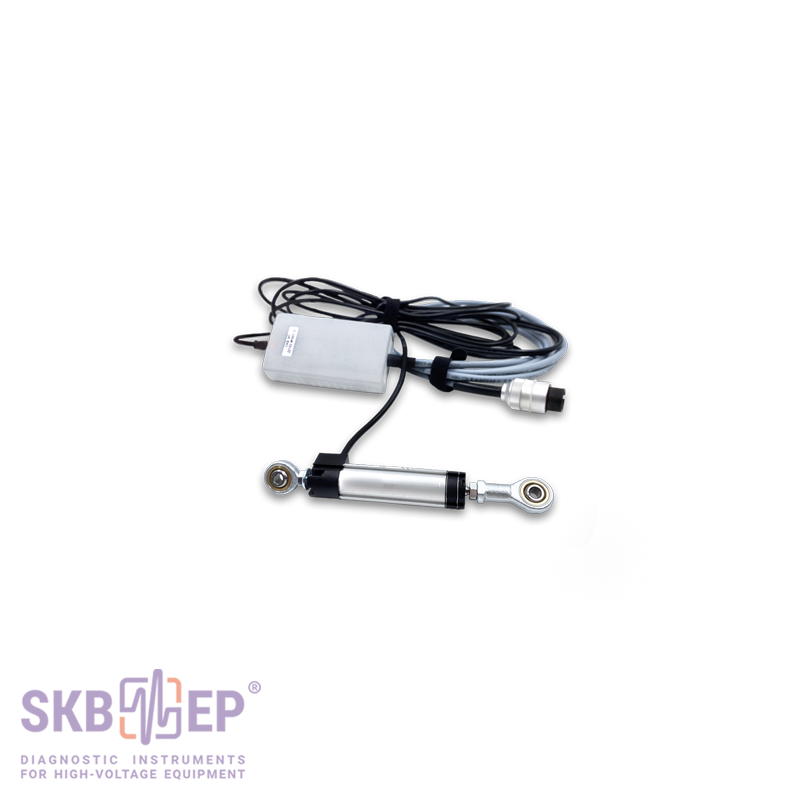

DP32.1 variable-resistance linear movement transducer
  • DP32.1 variable-resistance linear movement transducer
  • SKB026.22.00.000
  • DP32.1 variable-resistance linear movement transducer
  • SKB026.22.00.000

For measuring linear movements of moving parts of vacuum circuit breakers with open insulating housing in the range of 25 mm. Includes:
Fixing detail No.49 - for fixing of DP32.1 transducer position behind the movable contact of the arc extinguish chamber with diameter of up to 25 mm.
Pad No.2 - for fixing of DP32.1 transducer position behind the insulating frame of VVTE-M-10 vacuum circuit breaker pole.

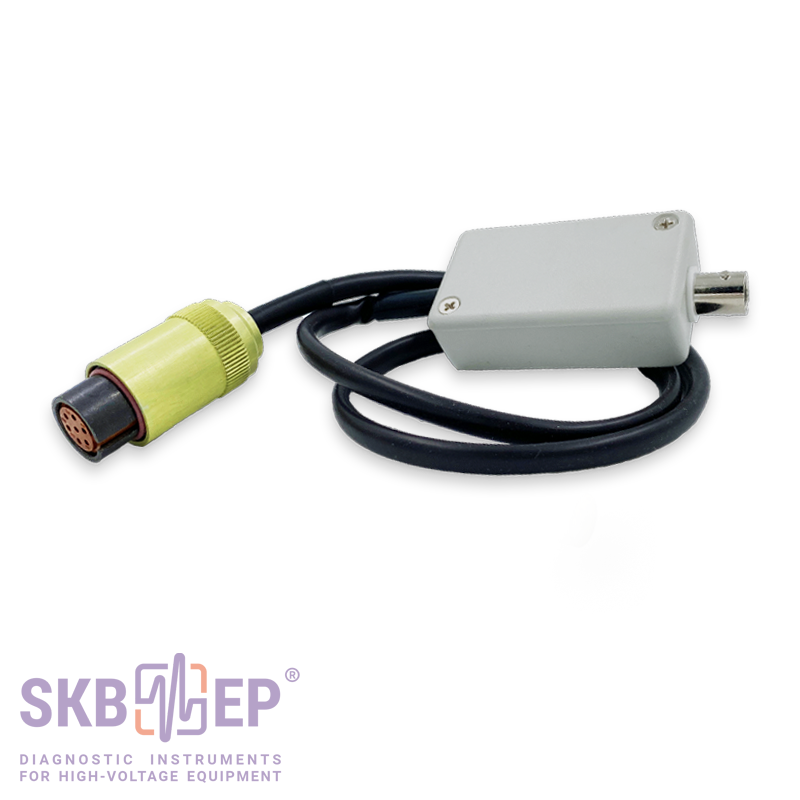

Current clamps
  • Current clamps
  • SKB026.21.00.000
  • Current clamps
  • SKB026.21.00.000

For measuring currents of electromagnets and solenoids. Supplied complete with a coupler. DC up to 600 A, AC up to 400 A (cable length – 2.5 m).

RS-232 cable
  • RS-232 cable
  • SKB024.25.00.000
  • RS-232 cable
  • SKB024.25.00.000

For connecting the instrument to the computer network or laptop (length - 1.5 m).

Laptop
  • Laptop
  • Laptop

For PKV/М7 control from computer as well as for measurement data processing in a special software.

Manipulating rod
  • Manipulating rod
  • SKB010.41.00.000
    SKB010.41.00.000-01
    SKB010.41.00.000-02
  • Manipulating rod
  • SKB010.41.00.000
    SKB010.41.00.000-01
    SKB010.41.00.000-02

Manipulating rod is designed for test cables connection from the ground or from the tank cover to the bushings of high-voltage circuit breakers, and to the structural elements of high-voltage disconnecting switches and earthing devices, without the use of ladders or elevated platforms.

The manipulating rod is completed with special extension cables. There is a Kelvin clamp with current and potential contacts to connect to the object on one side, and a contact pad on the other side. The device test cable is connected to the contact pad from the ground or a tank cover.

Manipulating rod extension cable is made according to a four-wire (Kelvin) scheme with the test current capacity of 100 A in the presence of a good contact.

Standard complete set

照片 项目,索引 应用

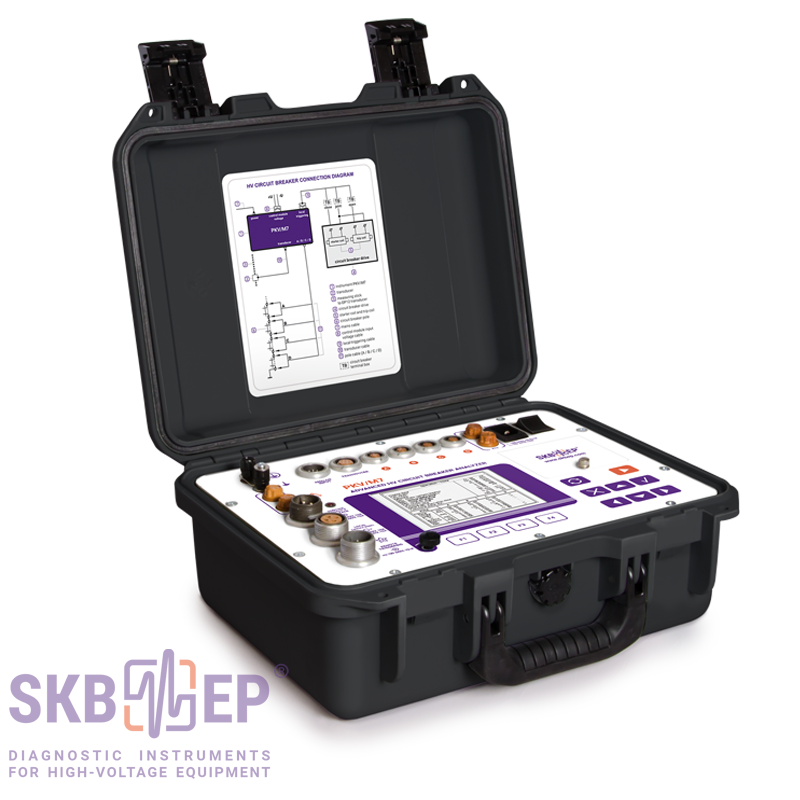

Main instrument PKV/М7
  • Main instrument PKV/М7
  • SKB026.00.00.000
  • Main instrument PKV/М7
  • SKB026.00.00.000

Instrument and accompanying documents: Calibration Certificate, User Manual, Log book, software.

Linear movement transducer DP12
  • Linear movement transducer DP12
  • SKB012.00.00.000-02
  • Linear movement transducer DP12
  • SKB012.00.00.000-02

For measuring the movement of moving parts in high-voltage circuit breakers. Range – 1 - 900 mm. Resolution – 0.5 mm. To be used together with a measuring stick.

Measuring stick
  • Measuring stick
  • SKB010.15.00.000-02
  • Measuring stick
  • SKB010.15.00.000-02

Measuring stick in a case. To be used together with linear movement transducer DP12 (length – 700 mm // on order – 550 mm and 1,000 mm).

Angular movement transducer DP21
  • Angular movement transducer DP21
  • SKB009.00.00.000
  • Angular movement transducer DP21
  • SKB009.00.00.000

For measuring the angle of shaft turn in high-voltage circuit breakers. Measuring range – 0.2 - 360°. Resolution – 0.09°.

Transducer cable
  • Transducer cable
  • SKB010.06.00.000-01
  • Transducer cable
  • SKB010.06.00.000-01

For connecting linear (DP12) or angular (DP21) movement transducer to the instrument. Cable insulation – silicone (length – 7 m // on order – 12 m).

А, В, C, D poles cables<br>(4 pcs.)
  • А, В, C, D poles cables
    (4 pcs.)
  • SKB010.05.00.000
    SKB010.05.00.000-01
    SKB010.05.00.000-02
    SKB010.05.00.000-06
  • А, В, C, D poles cables
    (4 pcs.)
  • SKB010.05.00.000
    SKB010.05.00.000-01
    SKB010.05.00.000-02
    SKB010.05.00.000-06

For connecting to the pole of high-voltage circuit breaker. Equipped with crocodile clamps. Cable insulation – silicone. Jaw Ø - 30 mm (length – 11 m).

Remote triggering cable
  • Remote triggering cable
  • SKB021.26.00.000
  • Remote triggering cable
  • SKB021.26.00.000

For remote triggering of measuring processes of the instrument. Cable should be connected to the drives of high-voltage circuit breaker electromagnet. Rubber insulation (length – 5 m).

Local triggering cable
  • Local triggering cable
  • SKB026.16.00.000
  • Local triggering cable
  • SKB026.16.00.000

For connecting to the high-voltage circuit breaker drive. Equipped with crocodile clamps. Nominal test current – 50 А. Cable insulation – silicone (length – 5 m).

Control module input voltage cable
  • Control module input voltage cable
  • SKB026.15.00.000
  • Control module input voltage cable
  • SKB026.15.00.000

For commutated voltage supply. Nominal test current – 50 А. Cable insulation – silicone (length – 2 m).

Resistance measuring cable
  • Resistance measuring cable
  • SKB026.18.00.000
  • Resistance measuring cable
  • SKB026.18.00.000

For measuring resistance in the range between 0 - 240 Ω and 0 - 2.5 kΩ. Equipped with M5 screw end caps (length – 2.5 m).

Mains cable
  • Mains cable
  • SKB018.09.00.000
  • Mains cable
  • SKB018.09.00.000

For connecting the instrument to the power supply. Temperature range – -25°С – +45°С. Rubber insulation (length – 2 m).

Ground cable
  • Ground cable
  • SKB010.01.00.000
  • Ground cable
  • SKB010.01.00.000

For PKV/M7 case grounding. Equipped with a ground clamp and screw end cap. Nominal test current – 50 А (length – 2 m).

LAN cable
  • LAN cable
  • SKB024.26.00.000
  • LAN cable
  • SKB024.26.00.000

For connecting the instrument to the computer network or laptop (length – 2 m).

Cable end caps for M5 screws<br>(8 pcs)
  • Cable end caps for M5 screws
    (8 pcs)
  • SKB021.26.00.003
  • Cable end caps for M5 screws
    (8 pcs)
  • SKB021.26.00.003

For connecting to the drive of the high-voltage circuit breaker in case it is not convenient to connect to the screws of the drive strip with crocodile clamps.

Fuses (4 pcs.)
  • Fuses (4 pcs.)
  • Fuses (4 pcs.)

Type: VP2B-1V-2А (2 pcs.) / VP2B-1V-10А (2 pcs.). For the power source protection.

Attachment devices set kit
  • Attachment devices set kit
  • SKB126.06.02.000
  • Attachment devices set kit
  • SKB126.06.02.000

Tool bag
  • Tool bag
  • SKB126.06.00.000
  • Tool bag
  • SKB126.06.00.000

Convenient, robust, wear proof bag for transportation of cables, documentation and other accessories to PKV/M7 instrument.
Weight 0.6 kg.
