Oxide films on the object's surface interfere with the measurement of contact resistance. To eliminate this effect the IEC 62271-1 requires measuring the resistance of a high-voltage circuit breaker's main circuit with a current ranging from 50 A to the nominal value. Foreign circuit breakers usually recommend a test current of 100 A or 200 A.

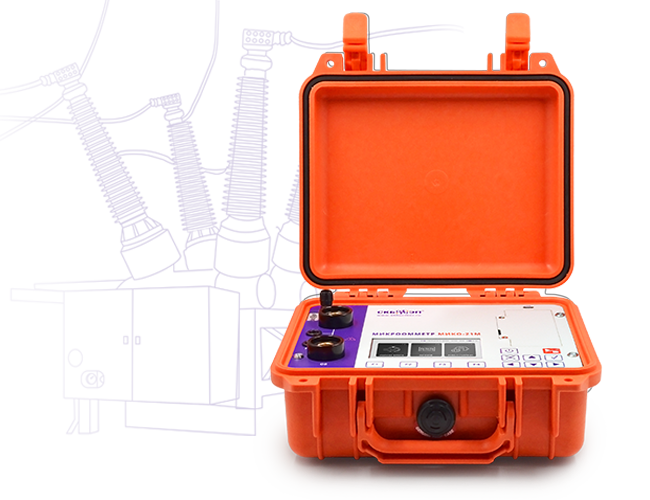

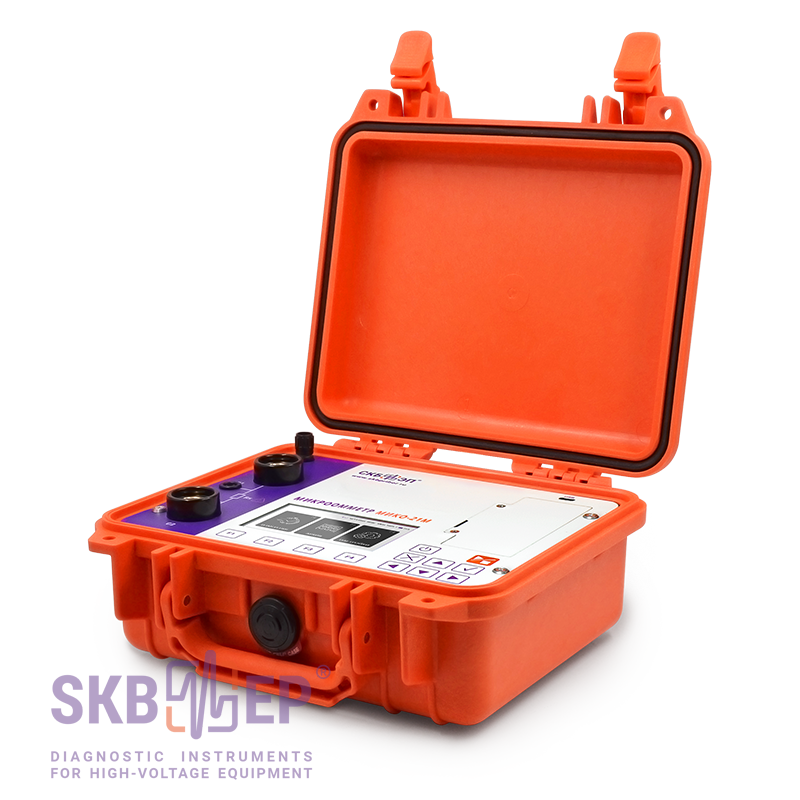

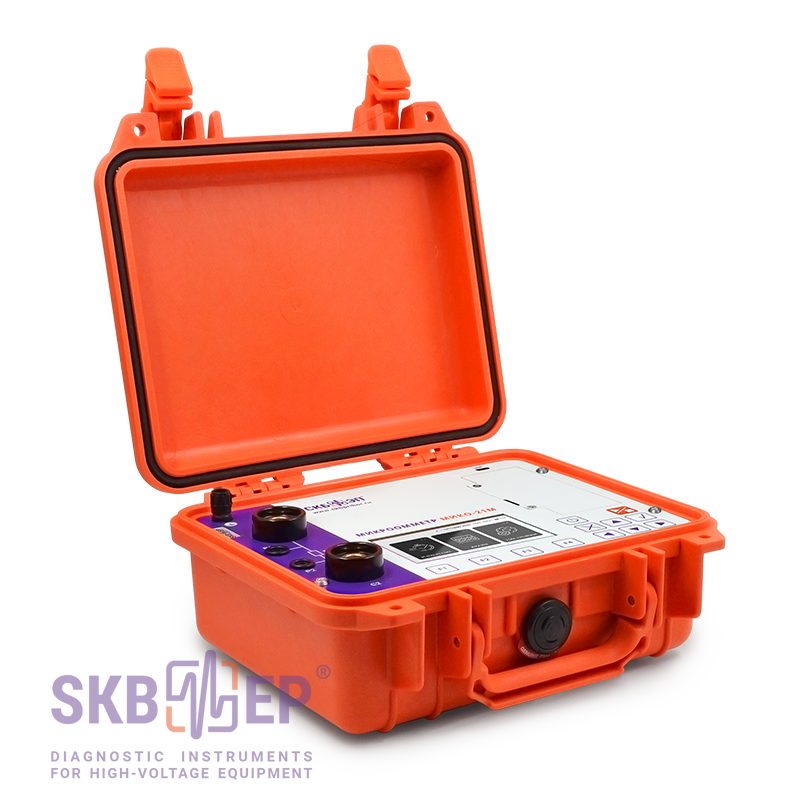

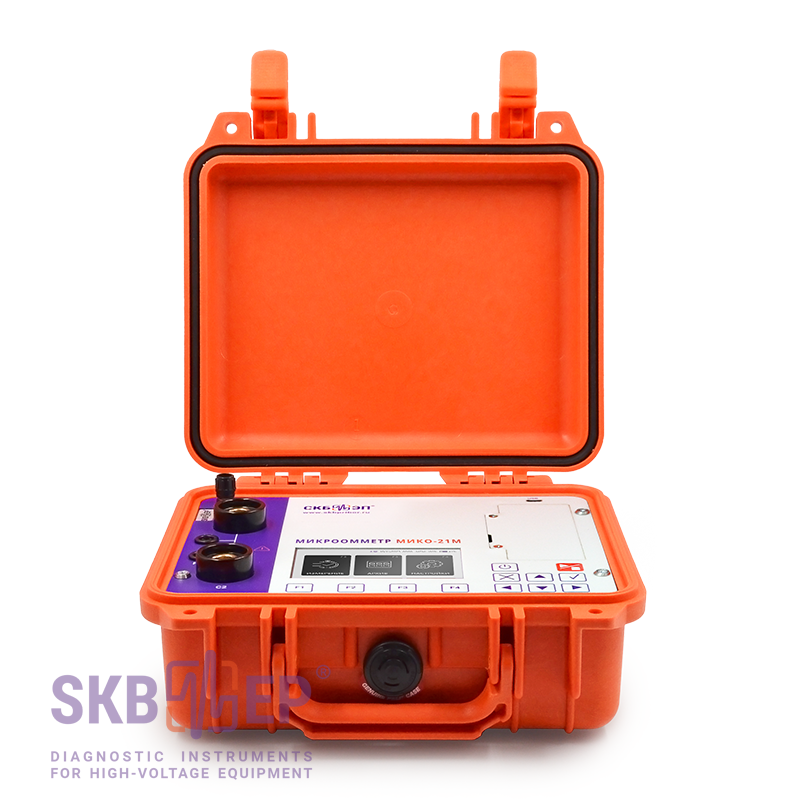

MIKO-21M measures resistance using a test current of up to 200 A, automatically selecting it depending on the object’s resistance.
Additionally, the current can be set manually by selecting it from a set of preset values.
The device is programmed with 3 modes for starting the measurement:
Single is started once the cable clamps are contacted to the tested object and followed by pressing the START button.
Periodic is used for measurements at specified intervals. After pressing the START button, the device automatically begins taking measurements at the set interval without user intervention. This mode is useful when the user’s hands are occupied with connecting cables, or when it is necessary to monitor how parameters change over time.
Periodic circuit
combines automatic activation with periodic operation upon closure of the tested circuit. After pressing the START button, the device waits for the contacts to close in order to start the measurement. The measurements continue until the user stops the process.
SKB EP micro-ohmmeters enable to measure contact resistance in high-voltage circuit breakers with built-in CT using special automatic modes:
CT eco mode enables to operate measurements in the circuits with CT with minimal battery power consumption;
CT max mode enables to operate measurement in the circuits with CT using 100 A or 200 A test current (set by a user) without saving battery power.
The user can add or remove nominal values for the measured object. Once the measured value exceeds the nominal value, the device emits a warning signal and displays an indication that the reading is above/below the set value.
MIKO-21M is equipped with a built-in rechargeable battery, which enhances its mobility and ease of use. The built-in battery ensures continuous operation throughout the entire workday without recharging, even across a large area of a substation or workshop. An optional battery pack allows users to extend the operating time and replace the battery once the main battery has reached the end of its service life.
MIKO-21M features a high-brightness color graphic touch-screen and an intuitive interface for easy use.
Special PC software (currently under development) allows users to control the device and transfer measurement results via USB.
To facilitate connection to the object, test cables of various lengths and with different types of clamps and attachment devices have been developed:
Test set with 200 A Kelvin clamp test cable 2 x 2 m (standard complete set) for high-voltage circuit breakers rated up to 10 kV;
Test set with 200 A Kelvin double hand spike test cable 2 x 1.5 m, for measurements in busbars and arc-extinguish chambers;
Test set with 200 A Kelvin C-clamp test cable 2 x 4.5 m / 6 m for circuit breakers rated from 10 kV to 220 kV;
Test set with various types of clamps – 200 A Kelvin clamp and 200 A Kelvin C-clamp – length 3 m, 6 m, and 9 m for circuit breakers rated from 220 kV to 750 kV.
The operating temperature range from -20 °C to +55 °C allows the device to operate in harsh weather conditions while providing the stated accuracy of results.
Specifications
Value
Resolution
0.1 µΩ
Accuracy
±0.05%
Test current range
1 – 200 A
Number of digits in the output of the measurement result
5
Single mode
≤2 sec
CT eco mode
30 sec
CT max mode
15 sec
Battery type
Li-Ion
Battery recharge time
<2 hrs
Battery lifetime (in continuous operation)
8 hrs
Built-in memory
Cyclic, 256 measurements
PC communication
USB
Display
Color graphic display, touch-screen, 480 x 272 pix
Instrument and additional documents: Calibration Certificate, User Manual, Log Book.
Test cable
039.27.00.000
Test cable
039.27.00.000
200 A Kelvin clamp test cables 2 x 2 m (1.12 kg) with jaw up to 50 mm. Include a current wire and a potential wire.
Ground cable
010.01.00.000
Ground cable
010.01.00.000
Ground cable 1 x 2 m for instrument grounding. The cable is equipped with a C-clamp and a screw end cap. Rated current is 50 А.
Battery charger
Battery charger
Mains adapter for charging the built-in battery.
USB Type-A, USB Type-C Cables
USB Type-A, USB Type-C Cables
For computer connection and data transfer.
Tool bag
126.06.00.000
Tool bag
126.06.00.000
Convenient, robust, wear proof bag for transportation of cables, documentation and other accessories.
Test cables (on order)
Item, Index
Application
Set No. 1
039.19.00.000
Set No. 1
039.19.00.000
Kelvin double hand spike test cable 2 x 1.5 m (0.87 kg) with spring-loaded spike contacts. Include a current wire and a potential wire. Convenient for measurements in busbars and arc extinguish chambers.
Set No. 2
039.35.00.000
Set No. 2
039.35.00.000
Kelvin clamp test cables 2 x 10 m (7.32 kg) with jaw up to 50 mm. Include a current wire and a potential wire.
Set No. 3
039.25.00.000
Set No. 3
039.25.00.000
Kelvin C-clamp test cables 2 x 4.5 m (3.79 kg) with jaw up to 80 mm. Include a current wire and a potential wire.
Set No. 4
039.26.00.000
Set No. 4
039.26.00.000
Kelvin C-clamp test cables 2 x 6 m (5.12 kg) with jaw up to 80 mm. Include a current wire and a potential wire.
Set No. 4
039.38.00.000
Set No. 4
039.38.00.000
Kelvin C-clamp test cables 2 x 10 m (16 kg) with jaw up to 80 mm. Include a current wire and a potential wire.
Test cable for sets No. 2, No. 3, No. 4
39.24.00.000 39.24.00.000-01 39.24.00.000-02
Test cable for sets No. 2, No. 3, No. 4
39.24.00.000 39.24.00.000-01 39.24.00.000-02
Optional potential test cable with crocodile clips A25C (2 pcs.) and probes (2 pcs.) for precise measurements and for measurements on the sections of the electric circuit, to the end points of which the test current is applied.
For Set No. 2 – Length: 2 m (039.24.00.000) Weight: 0.068 kg
For Set No. 3 – Length: 4.5 m (039.24.00.000-01) Weight: 0.151 kg.
For Set No. 4 – Length: 6 m (039.24.00.000-02) Weight: 0.201 kg.
The cable can be used for specific resistance measurements of cables.
039.20.00.000 039.21.00.000-01 039.21.00.000-02
039.20.00.000 039.21.00.000-01 039.21.00.000-02
Kelvin clamp test cable 1 x 1 m (0.5 kg) with jaw up to 50 mm. Includes a current wire and a potential wire.
Kelvin C-clamp test cable with jaw up to 80 mm. Includes a current wire and a potential wire. The following lengths are available:
Length: 3 m (039.21.00.000) Weight: 1.34 kg.
Length: 6 m (039.21.00.000-01) Weight: 2.0 kg.
Length: 9 m (039.21.00.000-02) Weight: 4.0 kg.
Potential spring-loaded contact
023.21.00.000 023.21.00.000-01
Potential spring-loaded contact
023.21.00.000 023.21.00.000-01
To be used together with test cables to eliminate high contact resistance between the input stud and the terminal. Applicable with Sets No. 2 - No. 5.
Potential probe
023.22.00.000 023.22.00.000-01
Potential probe
023.22.00.000 023.22.00.000-01
To be used together with test cables to eliminate high contact resistance between the input stud and the terminal. Applicable with Sets No. 2 - No. 5.
Test cable
039.37.00.000
Test cable
039.37.00.000
Kelvin C-clamp test cables 2 x 15 m (30.68 kg) with jaw up to 80 mm. The cable clamp has a socket for connecting a remote potential contact.
Test set
039.43.00.000
Test set
039.43.00.000
Kelvin clamp test cables 2 x 10 m (7.9 kg) with jaw up to 70 mm.
Test cable
039.44.00.000
Test cable
039.44.00.000
Kelvin clamp test cables 2 x 13 m (16.53 kg) with jaw up to 70 mm.
Test cables for aviation diagnostics (on order)
Item, Index
Application
Test set
039.33.00.000 039.33.00.000-01
Test set
039.33.00.000 039.33.00.000-01
100 A Kelvin double hand spike test cable 2 x 1.5 m (0.471 kg) with spring-loaded contacts. One probe is equipped with a control button for measurement start-up.
Recommended for contact resistance measurement in hard-to-reach places of objects with painted surfaces; in aviation: for contact resistance measurement of aircraft equipment and helicopter fuselage.
Test set
039.31.00.000 039.31.00.000-01
Test set
039.31.00.000 039.31.00.000-01
50 A Kelvin test cable with crocodile clips 2 x 1.5 m (0.163 kg) with jaw up to 20 mm.
Recommended for resistance measurements in hard-to-reach places; in aviation: for resistance measurement of various elements of the aircraft.
Additional complete set (on order)
Item, Index
Application
Battery unit
055.04.00.000
Battery unit
055.04.00.000
Battery unit for the device's autonomous operation. 7800 mAh. Set includes 1 pc.
Shunt SV75-0075A-D-02
060.02.18.000
Shunt SV75-0075A-D-02
060.02.18.000
For checking the operability of the device. Manufactured by SKB EP.
Adapter for a reference coil
Adapter for a reference coil
For testing laboratories: inspection / calibration of the instrument, 2 x 0.025 m + 0.16 m (0.04 kg).
Recommended accessories (on order)
Item, Index
Application
Manipulating rod
010.41.00.000 010.41.00.000-01 010.41.00.000-02
Manipulating rod
010.41.00.000 010.41.00.000-01 010.41.00.000-02
Manipulating rod is designed for test cables connection from the ground or from the tank cover to the bushings of high-voltage circuit breakers, and to the structural elements of high-voltage disconnecting switches and earthing devices, without the use of ladders or elevated platforms.
The manipulating rod is completed with special extension cables 3.3 m. There is a Kelvin clamp with current and potential contacts to connect to the object on one side, and a contact pad on the other side. The device test cable is connected to the contact pad from the ground or a tank cover.
Manipulating rod extension cable is made according to a four-wire (Kelvin) scheme with the test current capacity of 100 A in the presence of a good contact.
Manipulating rod - 2.2 (length 2.2 m / weight as an assembled set 3.4 kg);
Manipulating rod - 3.7 (length 3.7 m / weight as an assembled set 4.0 kg);
Manipulating rod - 5.1 (length 5.1 m / weight as an assembled set 4.6 kg).
Extension cable set (2 pcs.)
010.41.08.000
Extension cable set (2 pcs.)
010.41.08.000
An additional extension cable set for the manipulating rod's standard complete set, designed for simultaneous connection to 4 high-voltage object bushings. Weight: 1.72 kg.
Extension cable set (4 pcs.)
010.41.08.000
Extension cable set (4 pcs.)
010.41.08.000
An additional extension cable set for the manipulating rod's standard complete set, designed for simultaneous connection to 6 high-voltage object bushings. Weight: 3.44 kg.
Official reviews from customers based on the results of operating SKB EP instruments are available upon request. Please, fill out the form on the website.
