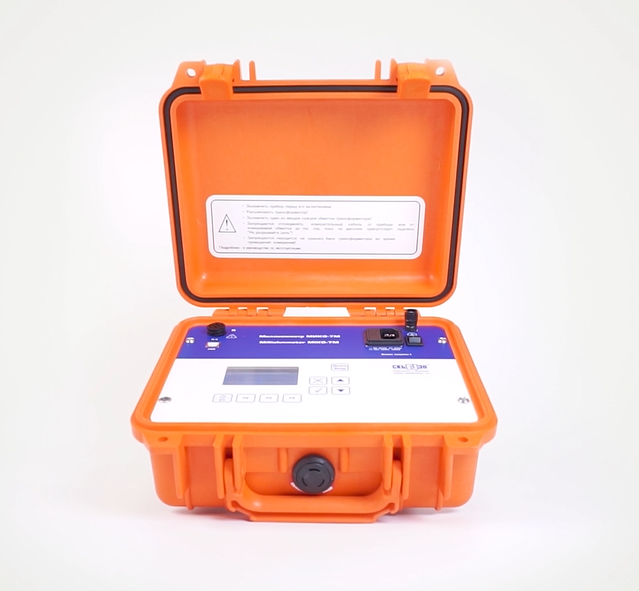

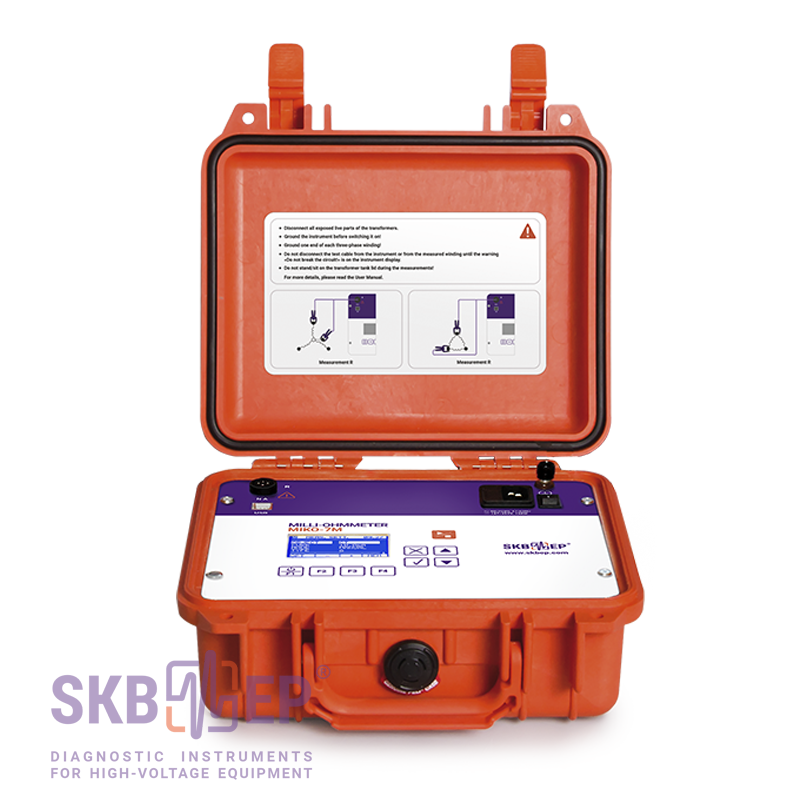

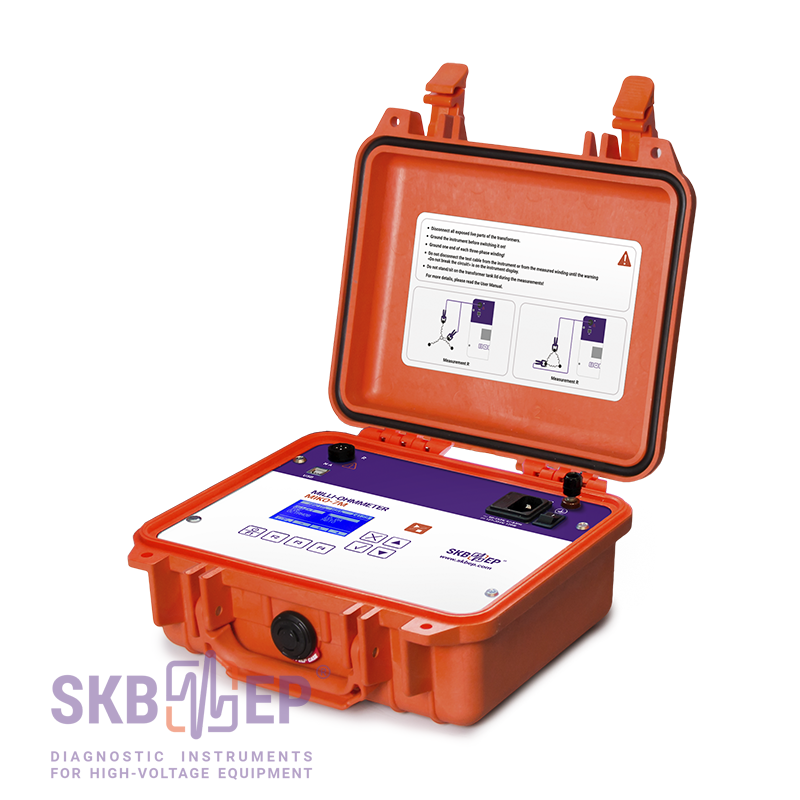

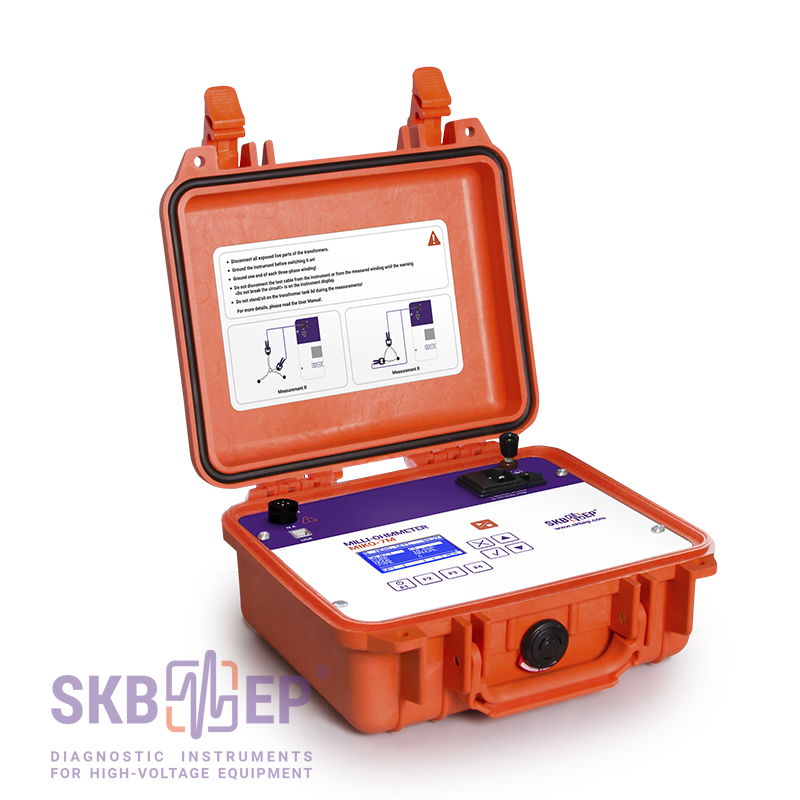

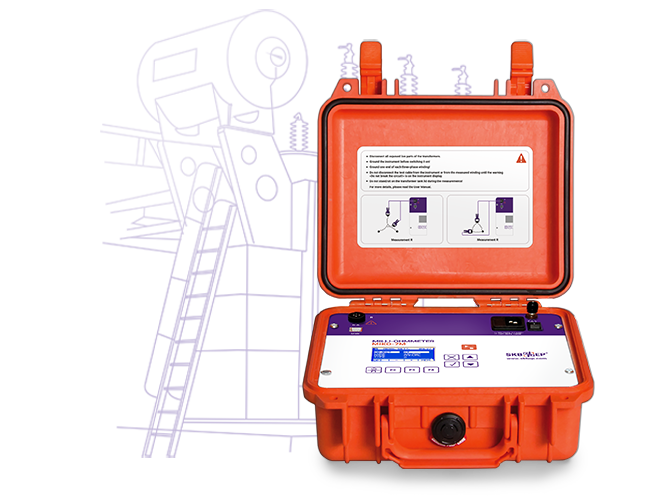

Milli-ohmmeter MIKO-7M(A) new version

Certificates

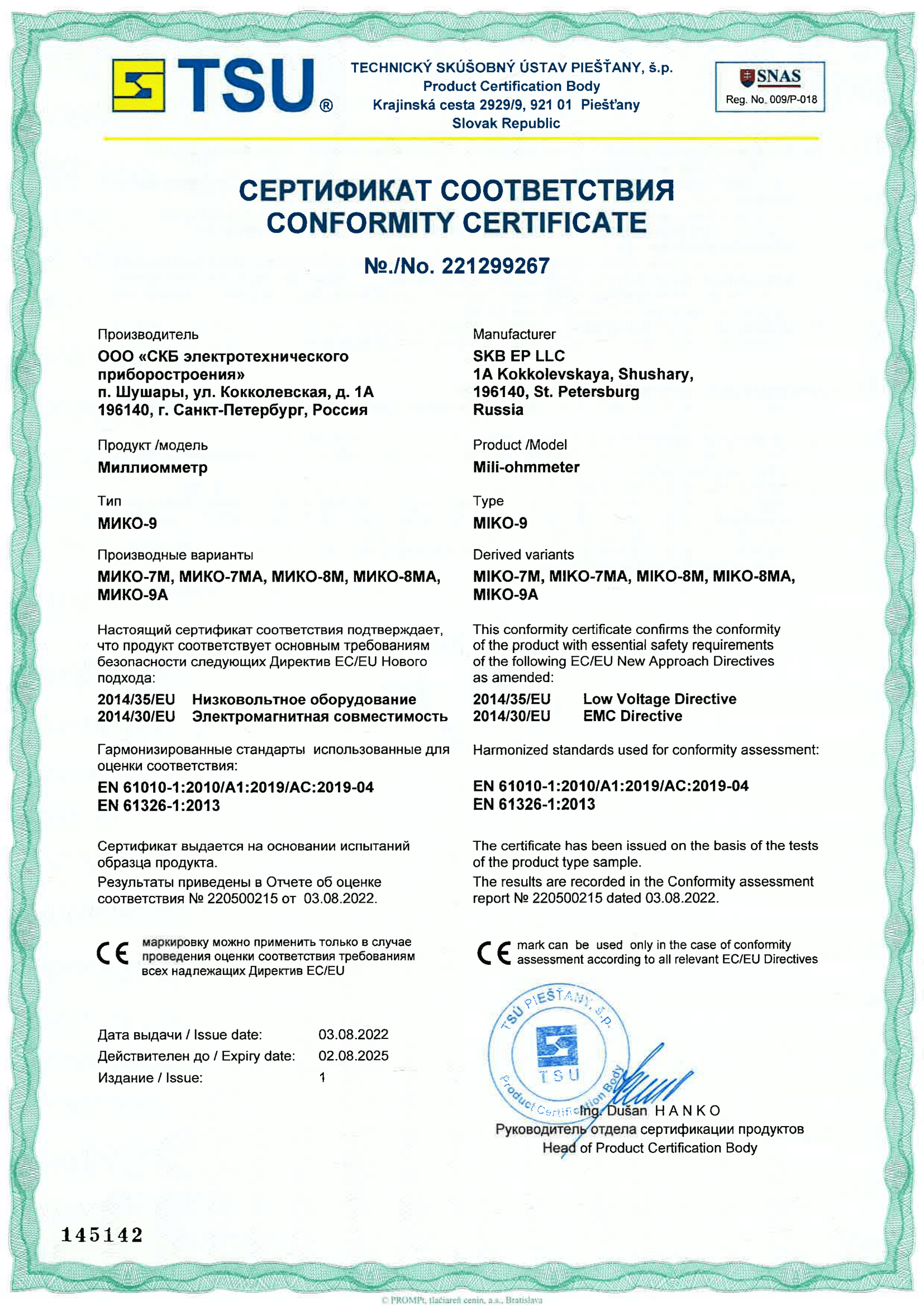

  • Safety Test Certificate IEC 61010-1:2001
  • Conformity certificate with safety requirements EC/EU

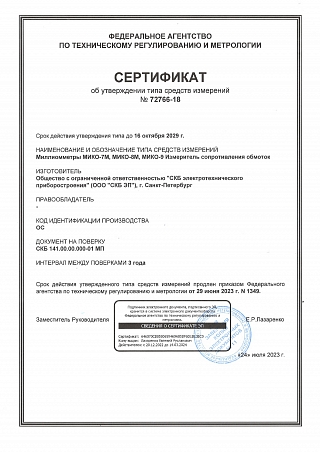

  • Russian State Register Certificates

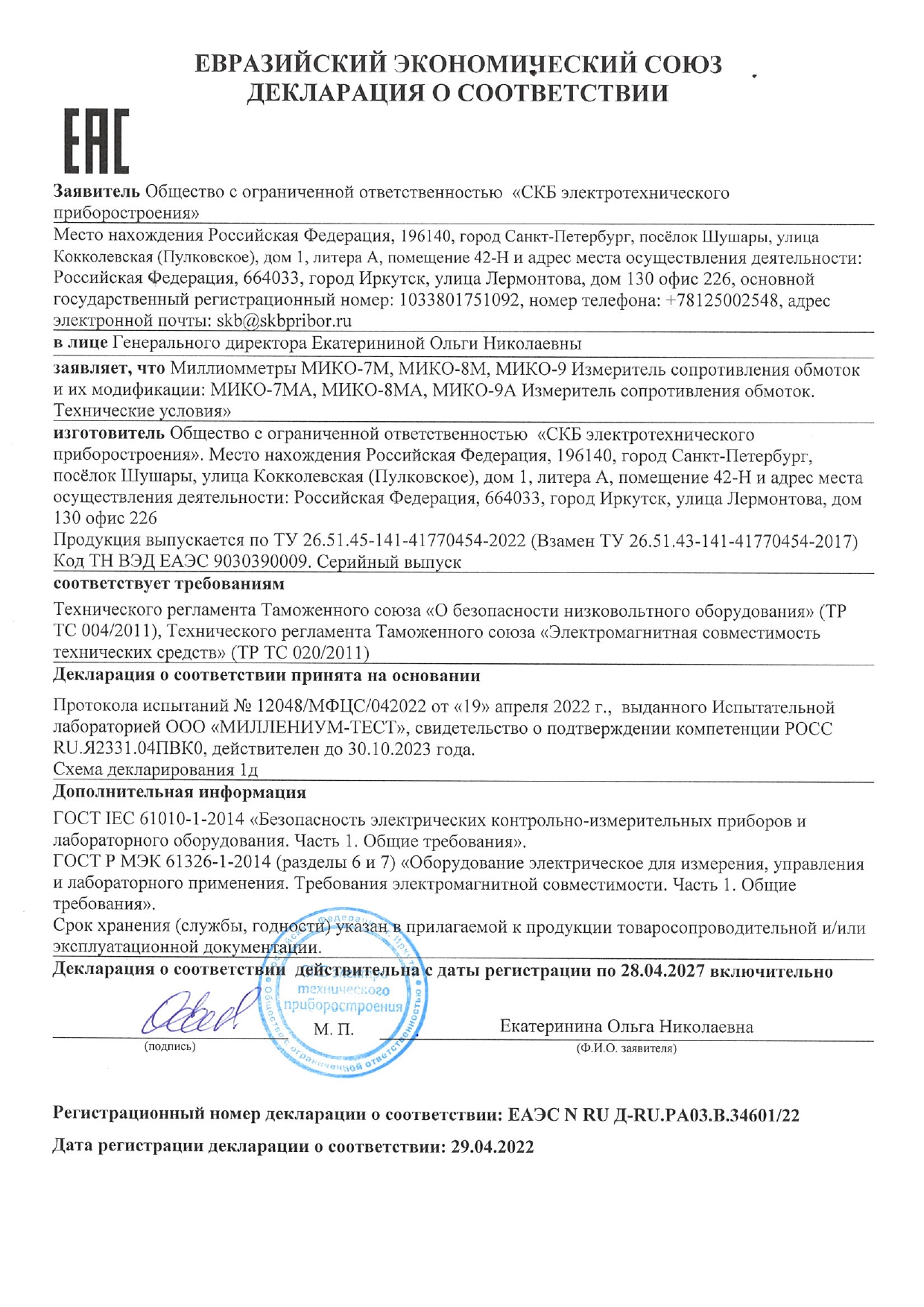

  • Declaration of Conformity of the Customs Union

Resistance measurement in inductive and non-inductive circuits in the range of 1 μΩ - 2 kΩ

More

Automatic setting and systematization of measurement results

More

High precision measurement modes

More

High level of protection and safety conformity

More

Non-volatile memory of up to 200 measurements

More

Bluetooth data transfer and control

More

Variable instrument configuration

More

Two modifications of the instrument with different types of power

More

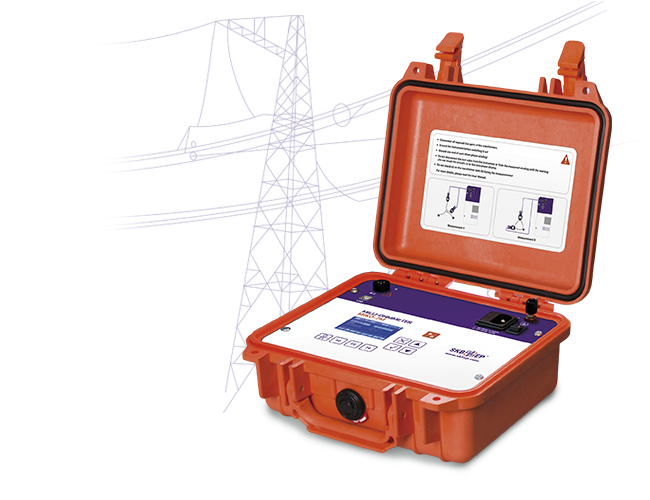

Milli-ohmmeter – easy-to-use, modern and convenient instrument

More

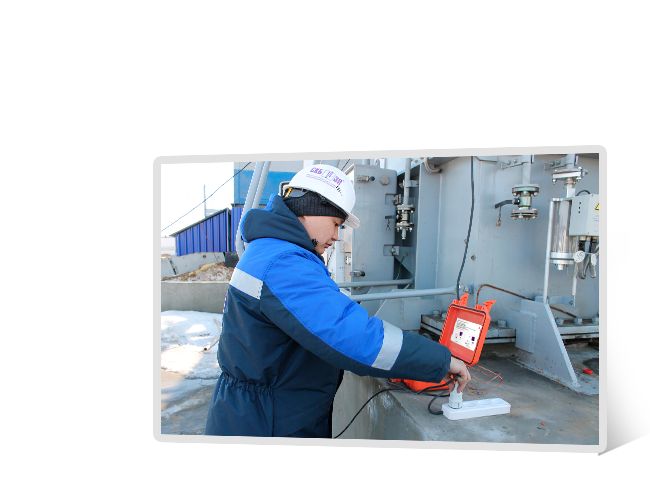

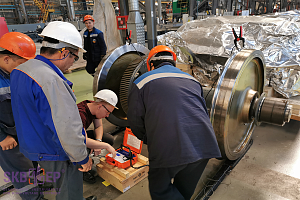

The MIKO-7M(A) milli-ohmmeter is developed to measure DC resistance in the range of 1 µΩ - 2 kΩ with test current up to 10 А for:

  • Windings of power and instrument transformers, windings of electric motors, generators, linear compensators and windings of other high-inductance equipment;
  • Contacts of circuit breakers, resistors, buses and other non-inductive circuits;
  • Compensatory, current limiting and other resistors of high-voltage circuit bre­akers;
  • Сables.

The instrument ensures fully automated resistance measurement of highly inductive load and thermal EMF balancing in external circuit.

Watch detailed video-reviews about MIKO-7M(A) milli-ohmmeter up above or on our YouTube. Watch videos and subscribe.

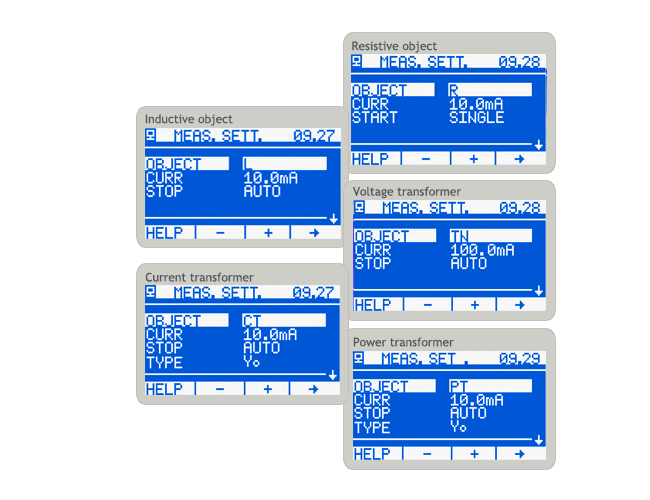

The instrument integrates special-purpose modes for measuring 5 objects with account of their specific features: resistive and inductive objects; voltage transformers; current and power transformers. This functionality enables systematization of measurement results, as well as provides comfortable archive work.

MIKO-7M(A) automatically considers configuration of the object to adjust the measurement mode.

Depending on the object type, you can sel­ect special measurement modes. For example, for a resistive object:

  • AUTO: the measurement starts automatically by the circuit closing.
  • SINGLE: the measurement starts upon the user's command (by pressing the START button).

For an inductive object, the User can also select one of two mo­des:

  • MANUAL: start and stop of the measurement are conducted manually by pressing the START button.
  • AUTO: the measurement is initiated by pressing the START button and will be stopped automatically, if criterium specified is reached.

The highest accuracy of measurement results under complex electromagnetic conditions is guaranteed by a patented automated measurement method for inductive objects.

MIKO-7M (A) has the safety certificate IEC 61010-1. The instrument also meets the requirements of electromagnetic compatibility that are applied to class A instruments according to IEC 61326-1.

The instrument has a high degree of protection against:

  • test cable or mains cable breakdown;
  • excess of test current;
  • EMF of self-induction;
  • overheat of the test block.

At disconnection of the test cable from transformer bushings or from the instrument as well as at disconnection of the mains cable from the mains in the course of measurement, EMF of self-induction of up to several kV is generated in the disconnected circuit and the electric arc appears in the break point.

MIKO-7М is characterized by the redundant protection against EMF of self-induction in case of involuntary disconnection of the test cable or power cable protecting users from electric shock and the instrument from being damaged.

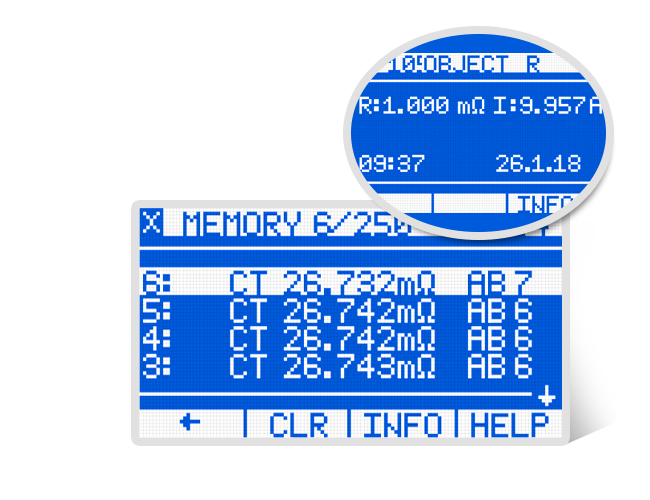

MIKO-7M(A) has a built-in archive of up to 200 measurements for viewing, copying or deleting the data obtained. And due to the possibility of choosing an object at the measurement stage, the results are presented more systematically. This facilitates interaction with the archive.

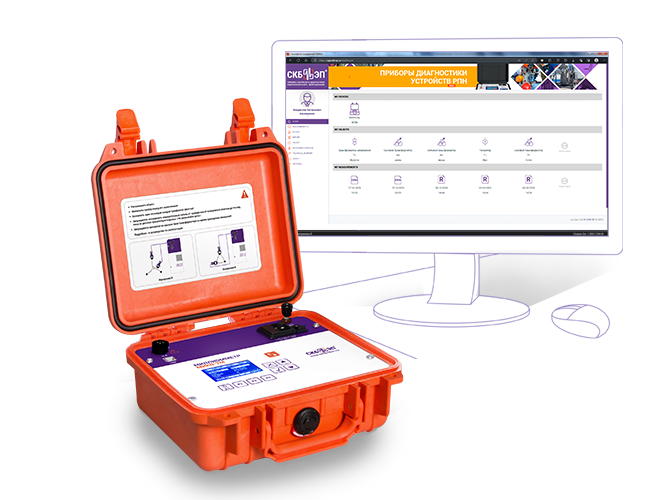

The received data can be synchronized with a special mobile application or a cloud via Bluetooth connection.

The mobile application will allow you to maintain and systematize the enterprise measurement database, provide additional automatic calculations based on the measured data, and also make it possible to control the device remotely.

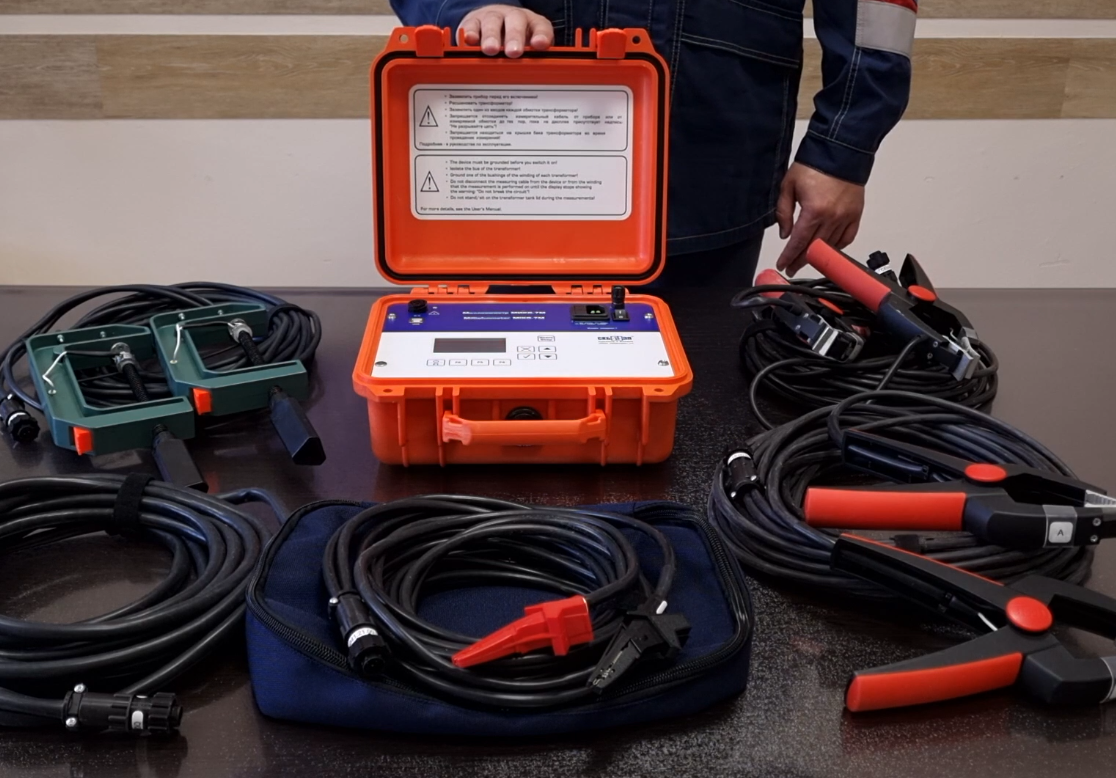

None of the test cables is included to the standard complete set of MIKO-7M(A) device. This allows the customer to choose exactly required cables.

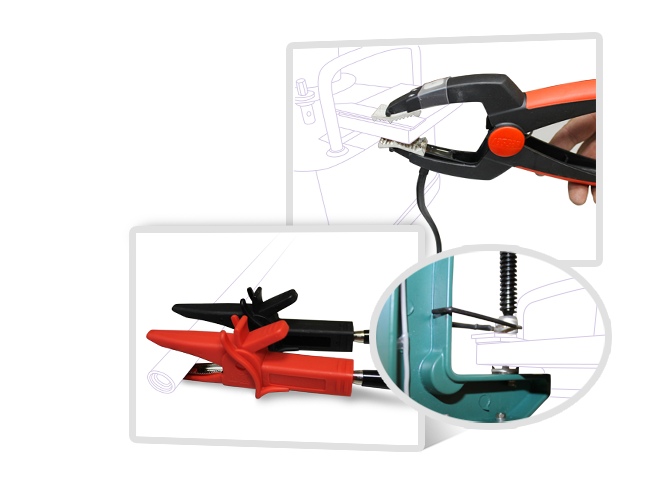

For user's choice and convenience of connecting to the object, there are special test cables designed of different lengths and different types of clamps/fasteners:

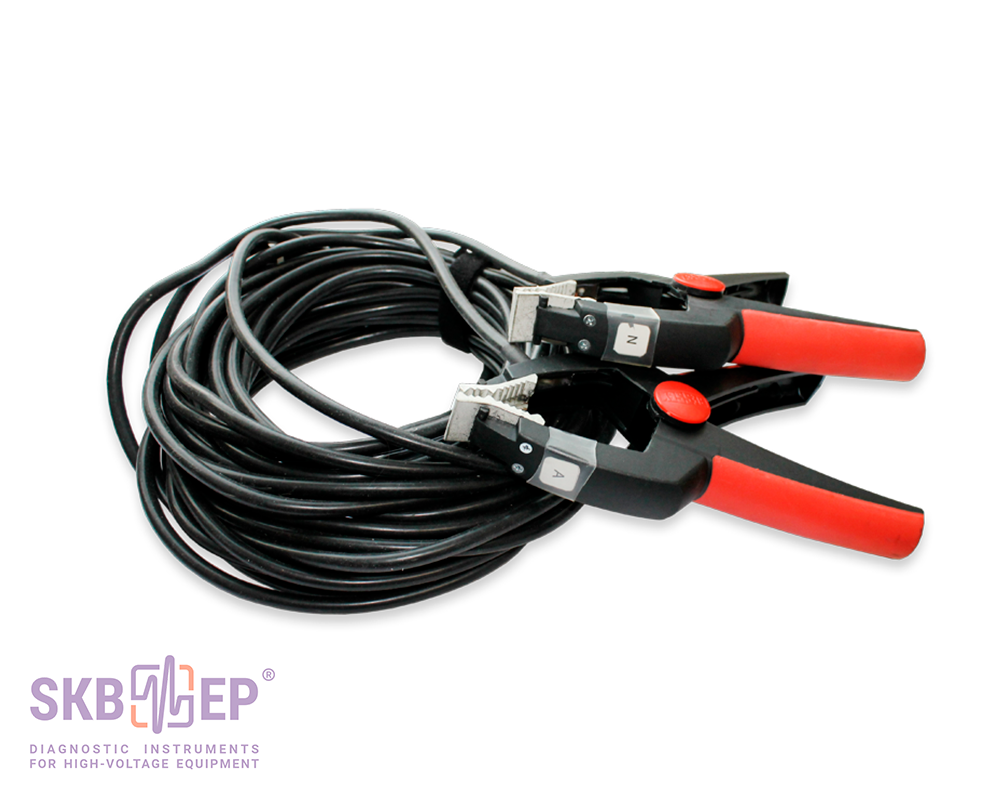

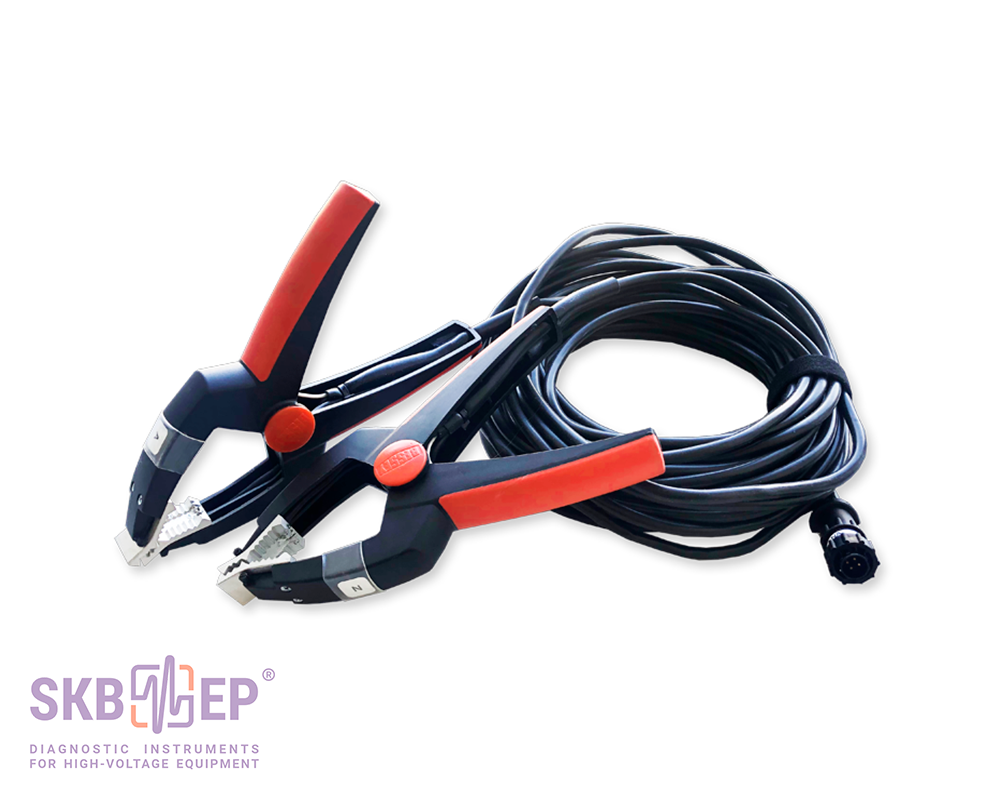

  • 10A Kelvin Clamp test cable 1 x 8.5 m (jaw up to 80 mm);

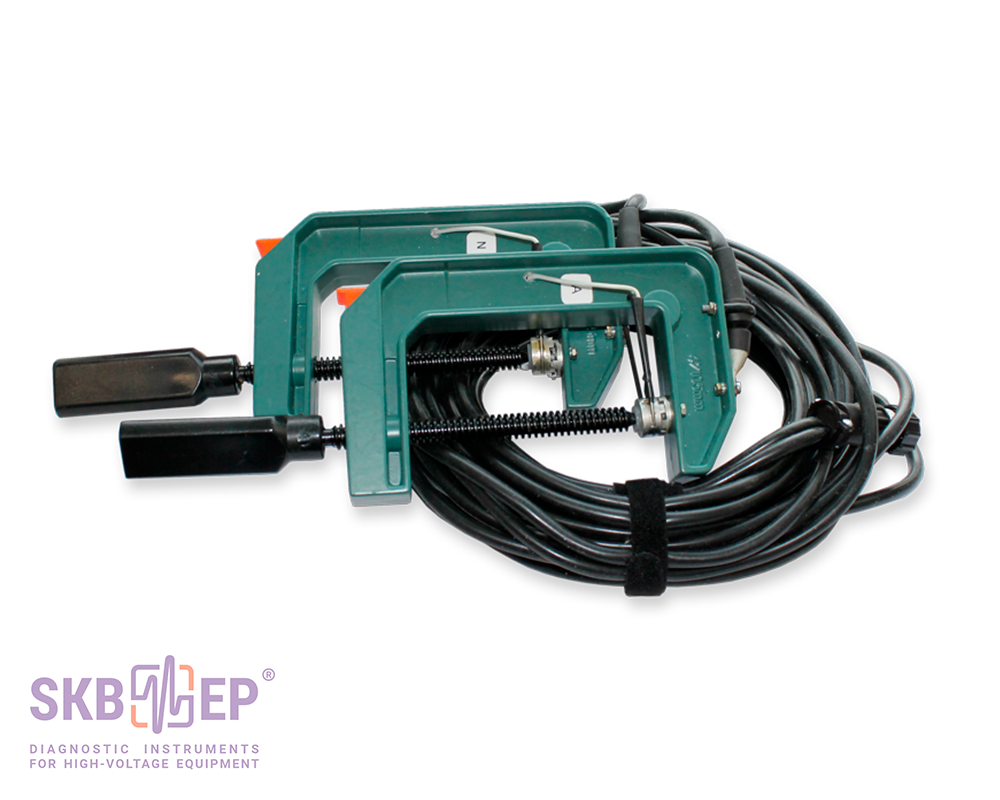

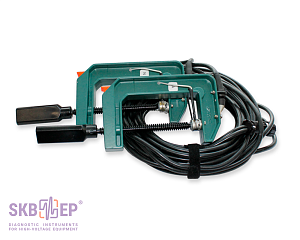

  • 10A Kelvin C-clamp test cable 1 x 8.5 m (jaw up to 103 mm) for connection to transformer;
  • 10A Kelvin Clamp test cable 1 x 4 m (jaw up to 25 mm) for resistance measurement of CT and VT windings;

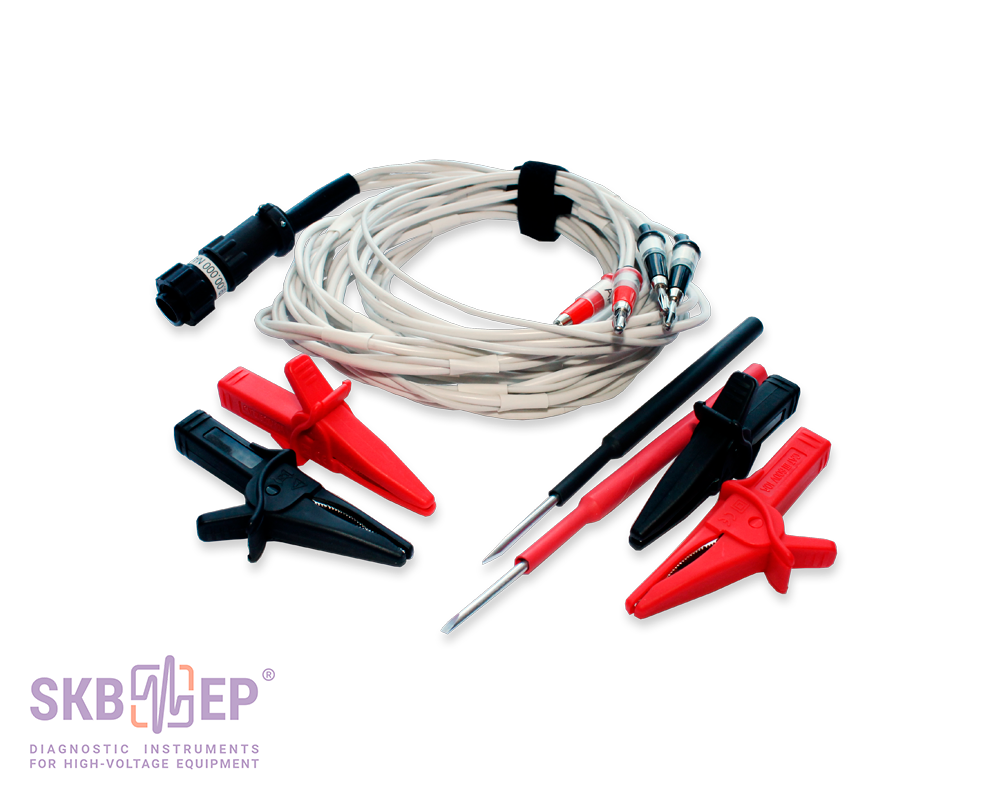

  • 10A Kelvin test cable 1 x 3 m (0.5 kg) with 2 probes and 4 crocodile clips (jaw up to 25 mm) (length: 70 mm, plug: 3 mm) for contact resistance measurement of CT and VT contact joints and windings.

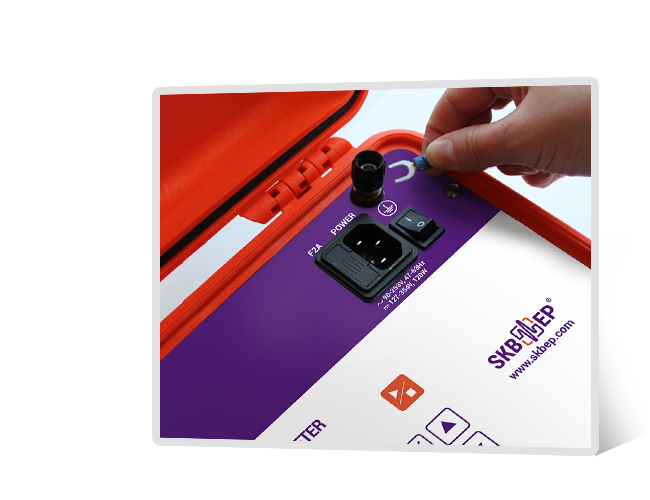

For user’s choice MIKO-7M milli-ohmmeter has two modifications: with a built-in battery (MIKO-7MA) and without a built-in battery (MIKO-7M). The device can also be powered from the mains (AC 90-253 V, 47-63 Hz // DC 127-354 V).

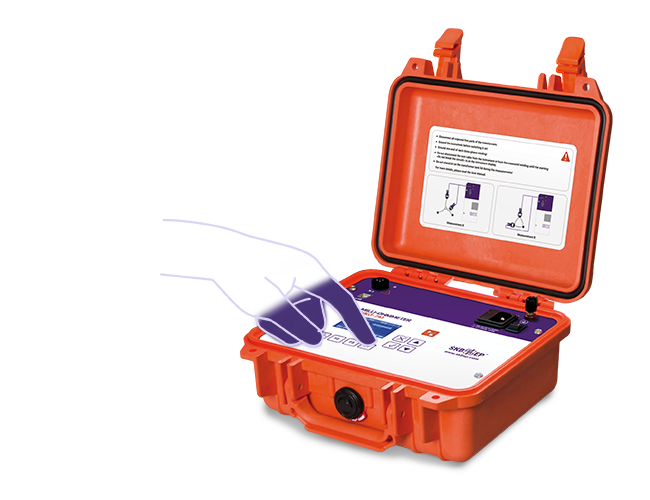

This instrument is easy and convenient to use and has an intuitive interface that has been repeatedly noted by the users.

In addition, the operating temperature range from -20°C to +55°C allows you to work with the device in difficult weather conditions, guaranteeing the stated accuracy of the results.

Specifications Value
Resistance range 1 μΩ - 2 kΩ
Resolution capability 0.1 μΩ
Accuracy ±(0.1%+0.5 μΩ)
Test current output 0.01 - 10 A
Measurement display resolution 5 digits
MIKO-7MA: Power supply (built-in battery) Li-ion battery
MIKO-7MA: Battery charge time 3 hours
MIKO-7MA: Battery runtime (in continuous operation) with output capacity 1W 8 hours
Built-in memory up to 200 measurements
PC connection USB cable and Bluetooth
Display Monochrome, 128 x 64 pixels
Power consumption 120 W
Output capacity 60 W
Power supply (mains voltage) 90-253 V AC, 47-63 Hz
127-354 V DC
Dimensions 270 х 250 х 130 mm
MIKO-7MA: Main instrument weight with battery 4.0 kg
MIKO-7M: Main instrument weight without battery 2.7 kg
Operating temperature range -20ºС - +55ºС
Environmental protection with open cover IP40
Environmental protection with closed cover IP67
Interface and user manual language English
Testing period 3 years
Calibration period 3 years
Warranty period 3 years

Standard complete set

Photo Item, Index Application

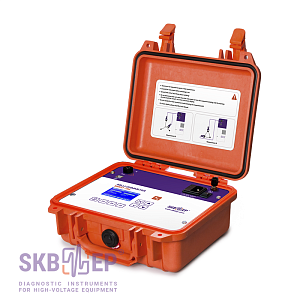

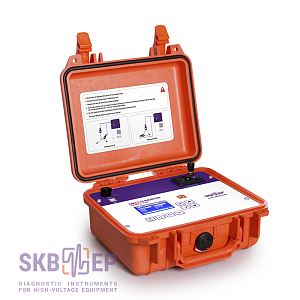

MIKO-7М or MIKO-7MA<br>main instrument
  • MIKO-7М or MIKO-7MA
    main instrument
  • 048.00.00.000
    or 048.00.00.000-01
  • MIKO-7М or MIKO-7MA
    main instrument
  • 048.00.00.000
    or 048.00.00.000-01

Instrument and documents: User Manual and a Log Book.

Test cables <br><b>on order</b>
  • Test cables
    on order
  • Test cables
    on order

As a matter of convenience for the user, test cables are not included to the standard complete set. Each user can select a cable to his/her own requirements. Please, select at least one test cable (see "additional complete set on order" below).

Mains cable
  • Mains cable
  • 018.09.00.000
  • Mains cable
  • 018.09.00.000

Mains cable 1 x 2 m. Weight 0.24 kg.
For instrument connection to the main network. Temperature range -25°С - +120°С. Rubber insulation.

Ground cable
  • Ground cable
  • 010.01.00.000
  • Ground cable
  • 010.01.00.000

Ground cable 1 x 2 m. Weight 0.08 kg.
For instrument grounding. The cable is equipped with a ground clamp and a screw end cap. Nominal test current is 50 A.

Zero resistance standard
  • Zero resistance standard
  • 023.15.00.000
  • Zero resistance standard
  • 023.15.00.000

Resistance zero point accuracy check. Value – 0.000 µOhm.

Shunt
  • Shunt
  • Shunt

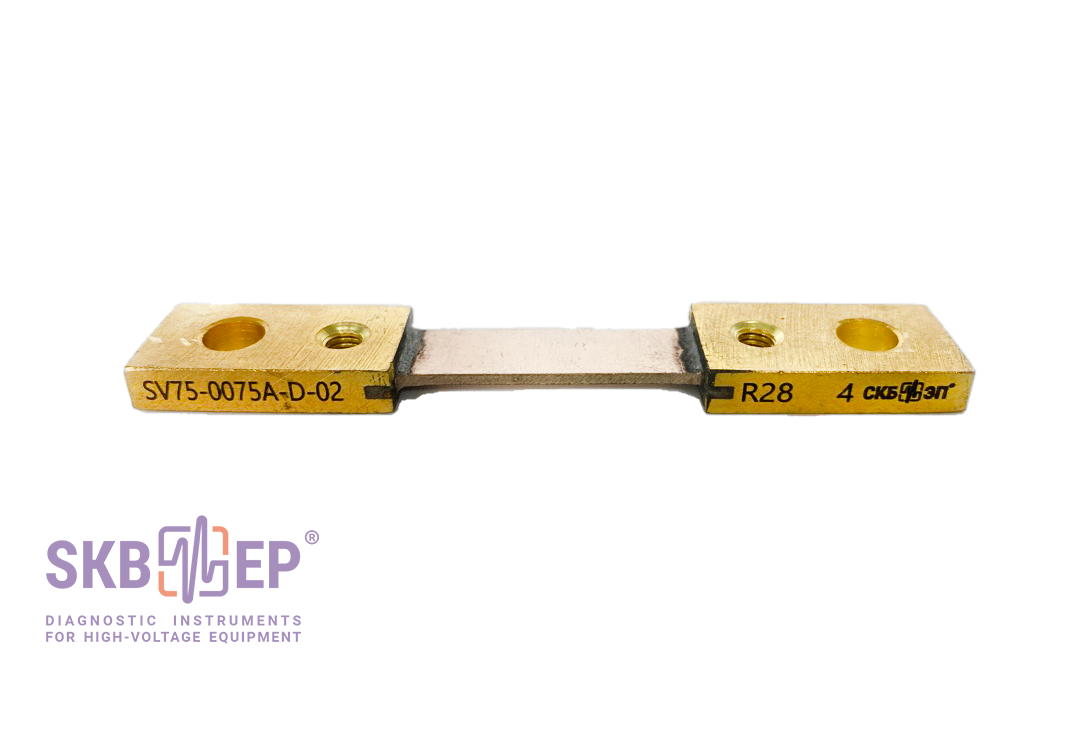

Type: 75ShSM M3 (75ШСМ М3). For checking MIKO-7M(A) operability. Value – 1 mΩ ±0.5%.

Fuses
  • Fuses
  • Fuses

Type: VP2B-1V-2A (ВП2Б-1В-2А) (2 pcs). For the power source protection.

Attachment devices set kit
  • Attachment devices set kit
  • 126.06.02.000
  • Attachment devices set kit
  • 126.06.02.000

Additional complete set (on order)

Photo Item, Index Application

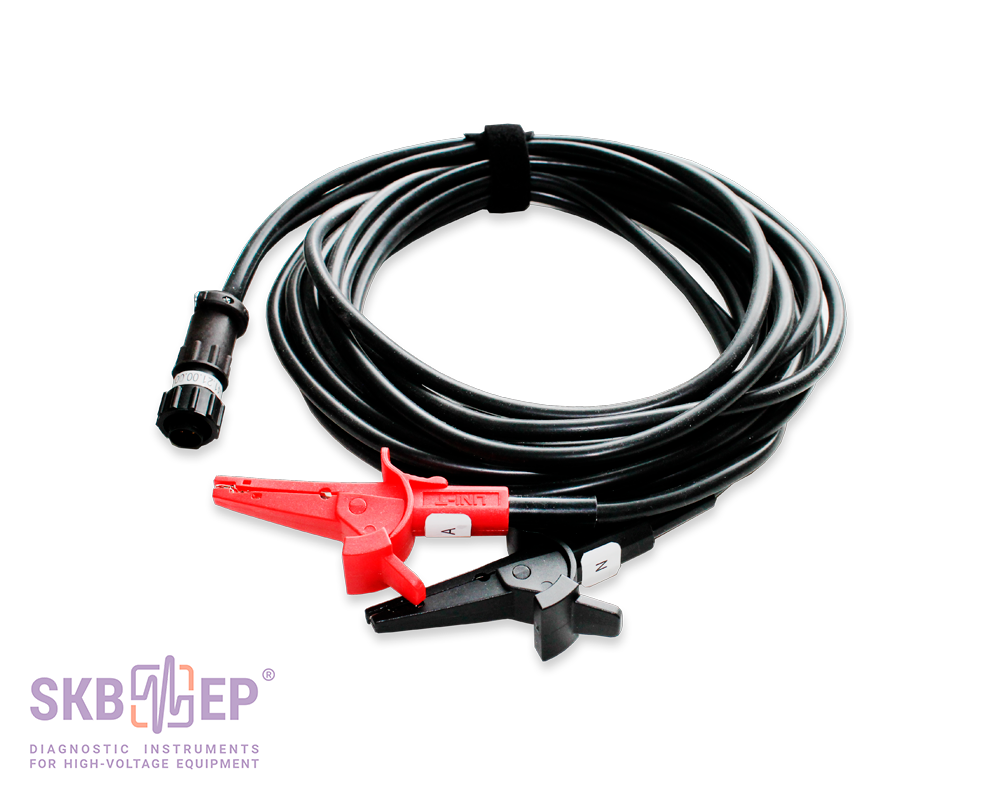

Test cable
  • Test cable
  • 041.18.00.000
  • Test cable
  • 041.18.00.000

10A Kelvin Clamp test cable 1 x 8.5 m (jaw up to 80 mm). Weight 1.72 kg.
Elastic silicone tube resistant to low and high temperatures and corrosive media.

Test cable
  • Test cable
  • 041.22.00.000
  • Test cable
  • 041.22.00.000

10A Kelvin Clamp test cable 1 x 8.5 m (jaw up to 80 mm) for connection to transformer bushings. Modification of the 041.18.00.000 cable. To be used on transformers with bushings located close to each other. Weight 1.72 kg. Elastic silicone tube resistant to low and high temperatures, and corrosive media.

Test cable
  • Test cable
  • 041.30.00.000
  • Test cable
  • 041.30.00.000

10A Kelvin Clamp test cable 1 x 3.5 m (jaw up to 50 mm) for connection to transformer bushings. To be used on transformers with bushings located close to each other. Weight 0.76 kg. Elastic silicone tube resistant to low and high temperatures, and corrosive media.

Test cable
  • Test cable
  • 041.26.00.000
  • Test cable
  • 041.26.00.000

10A Kelvin C-clamp test cable 1 x 8.5 m (jaw up to 103 mm) for connection to transformer. Weight 2.26 kg.
Alternative version of test cable 041.18.00.000. Elastic silicone tube resistant to low and high temperatures and corrosive media.

Test cable
  • Test cable
  • 041.19.00.000
  • Test cable
  • 041.19.00.000

10A Kelvin test cable 1 x 3 m. Weight 0.5 kg.
With 2 probes and 4 crocodile clips (jaw up to 25 mm) (length: 70 mm, plug: 3 mm) for contact resistance measurement of CT and VT contact joints and windings.

Test cable for CT and VT
  • Test cable for CT and VT
  • 041.21.00.000
  • Test cable for CT and VT
  • 041.21.00.000

10A Kelvin Clamp test cable 1 x 4 m (jaw up to 25 mm) for resistance measurement of CT and VT windings. Weight 0.61 kg.
Cable is used for CTs and VTs which are stand-alone or built into transformers / circuit breakers.

Test cable
  • Test cable
  • 041.28.00.000
  • Test cable
  • 041.28.00.000

10A Kelvin test cable 1 x 3 m with spring-loaded probes. To be used for electrical resistance measurement in hard-to-reach places.

Test cable extension
  • Test cable extension
  • 031.20.00.000
  • Test cable extension
  • 031.20.00.000

Extension cable 1 x 6.5 m. Weight 1.18 kg.
Elastic silicone tube resistant to low and high temperatures and corrosive media.
To be used together with test cables 041.18.00.000 (jaw up to 80 mm) and 041.26.00.000 (jaw up to 103 mm).

Adapter for a reference coil
  • Adapter for a reference coil
  • 023.12.00.000
  • Adapter for a reference coil
  • 023.12.00.000

Length 0.025 m + 0.16 m. Weight 0.04 kg.
For testing laboratories: inspection / calibration of the instrument.

Tool bag
  • Tool bag
  • 126.06.00.000
  • Tool bag
  • 126.06.00.000

Convenient, robust, wear proof bag for transportation of cables, documentation and other accessories to MIKO-7M or to MIKO-7MA instruments.
Weight 0.6 kg.

Manipulating rod
  • Manipulating rod
  • 010.41.00.000
    010.41.00.000-01
    010.41.00.000-02
  • Manipulating rod
  • 010.41.00.000
    010.41.00.000-01
    010.41.00.000-02

Manipulating rod is designed for test cables connection from the ground or from the tank cover to the bushings of high-voltage circuit breakers, and to the structural elements of high-voltage disconnecting switches and earthing devices, without the use of ladders or elevated platforms.

The manipulating rod is completed with special extension cables. There is a Kelvin clamp with current and potential contacts to connect to the object on one side, and a contact pad on the other side. The device test cable is connected to the contact pad from the ground or a tank cover.

Manipulating rod extension cable is made according to a four-wire (Kelvin) scheme with the test current capacity of 100 A in the presence of a good contact.

  • Open Original

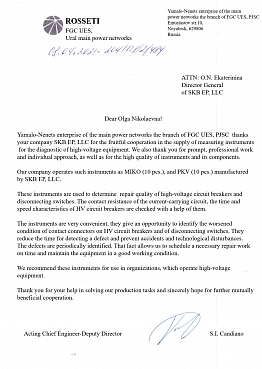

    Yamalo-Nenets enterprise of the main power networks the branch of FGC UES, PJSC

    Yamalo-Nenets enterprise of the main power networks the branch of FGC UES, PJSC thanks your company SKB EP, LLC for the fruitful cooperation in the supply of measuring instruments for the diagnostic of high-voltage equipment. We also thank you for prompt, professional work and individual approach, as well as for the high quality of instruments and its components.

    Our company operates such instruments as MIKO (10 pcs.), and PKV (10 pcs.) manufactured by SKB EP, LLC.

    These instruments are used to determine repair quality of high-voltage circuit breakers and disconnecting switches. The contact resistance of the current-carrying circuit, the time and speed characteristics of HV circuit breakers are checked with a help of them.

    The instruments are very convenient, they give an opportunity to identify the worsened condition of contact connectors on HV circuit breakers and of disconnecting switches. They reduce the time for detecting a defect and prevent accidents and technological disturbances. The defects are periodically identified. That fact allows us to schedule a necessary repair work on time and maintain the equipment in a good working condition.

    We recommend these instruments for use in organizations, which operate high-voltage equipment.

    Thank you for your help in solving our production tasks and sincerely hope for further mutually beneficial cooperation.

    S.I.Kandiano
    Acting Chief Engineer-Deputy Director

  • Open Original

    Altair, LLC

    MIKO-7 manufactured by SKB EP, LLC has been operated in the electrical laboratory of Altair, LLC since 2012.

    The instrument is used for commissioning works on transformers from 6 to 330 kV. We have to travel all over the country with instruments, because we are an installation and checkout organization.

    There were no problems with damage of the instrument during transportation due to shockproof materials and compact size of MIKO-7.

    This instrument has an ability to get 12V DC supply that is convenient while working in field conditions. We also have installed an advanced software to bring the measured resistance to the set temperature, through which we can quickly analyze the obtained measurement data.

    MIKO-7 comes with its own standard wires with a separate cable for extension. This is very convenient when it is necessary to work on transformers of different sizes.

    Moreover, the instrument provides a continuous measurement function for transformers with OLTCs and indicates the end of measurement process. This function significantly speeds up all measurements.

    Having had an experience in instruments operation since 2012, Altair, LLC thanks SKB EP, LLC for the manufacture of high-quality products and for the expressed interest in the operating experience of using their instruments.

    E.N.Novikov
    Head of the Commissioning works Sector

  • Open Original

    Shakhtinskteploenergo, LLC

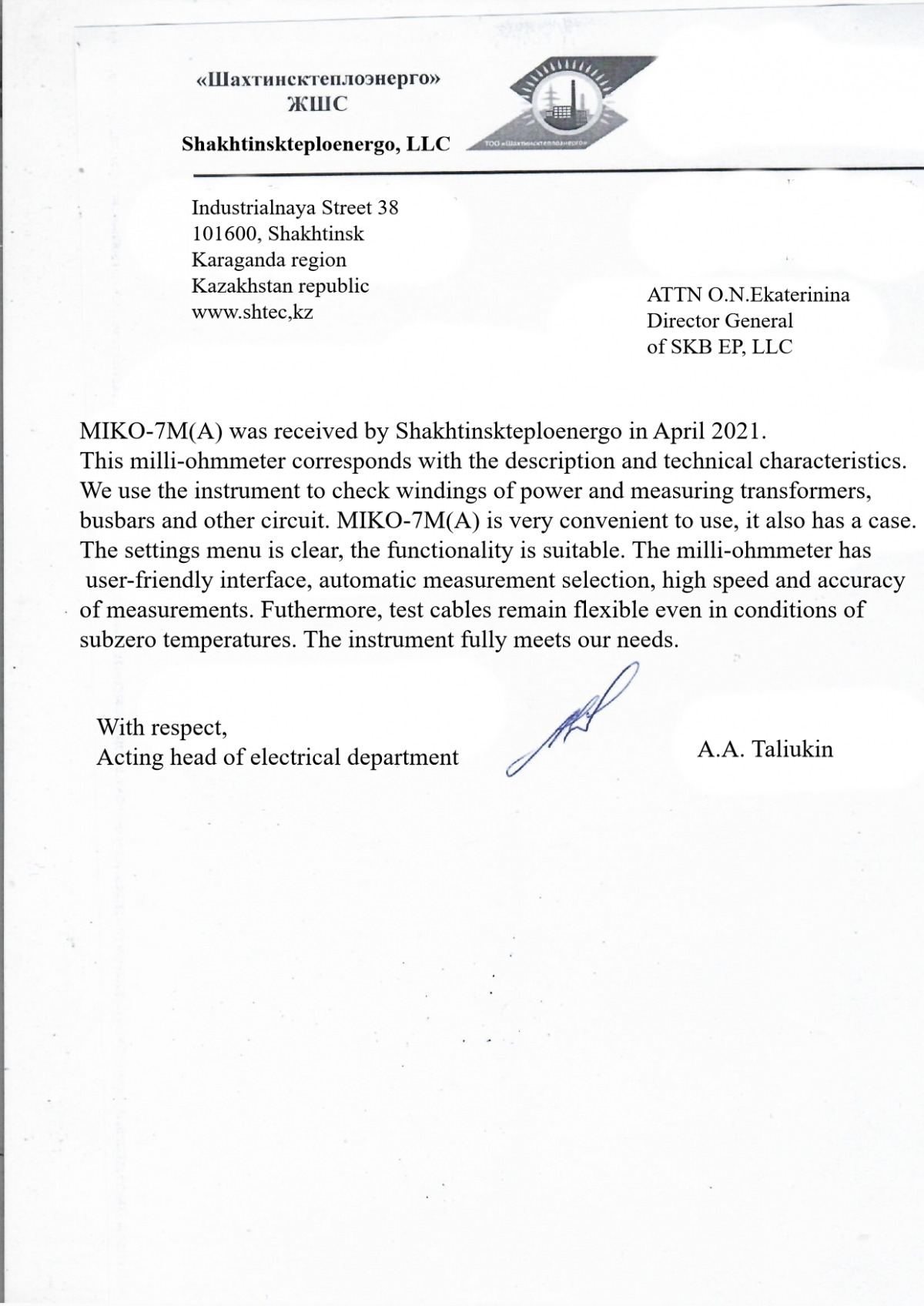

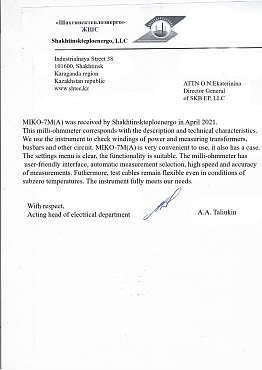

    MIKO-7M(A) was received by Shakhtinskteploenergo in April 2021. This milli-ohmmeter corresponds with the description and technical characteristics. We use the instrument to check windings of power and measuring transformers, busbars and other circuit. MIKO-7M(A) is very convenient to use, it also has a case. The settings menu is clear, the functionality is suitable. The milli-ohmmeter has user-friendly interface, automatic measurement selection, high speed and accuracy of measurements. Futhermore, test cables remain flexible even in conditions of subzero temperatures. The instrument fully meets our needs.

    With respect, A.A. Taliukin
    Acting head of electrical department


  • Open Original

    Voronezh City Electric Grid, JSC

    Currently, MIKO-7MA milli-ohmmeter is used in the electrotechnical laboratory of the equipment repair shop of VCEG, JSC.

    This device has been used since May 2021 for testing power transformers with a capacity of 6-10 kV 25-630 kVA. The use of this device made it possible to reduce the time spent on measuring the ohmic resistance of the transformer windings compared to previously used devices.

    The use of digital measurement indication allows you to reduce the number of errors when taking readings. Low weight, compactness and absence of fragile parts is an undoubted advantage of the device. During the short period of MIKO-7MA operation, no failures and malfunctions were detected.

  • Open Original

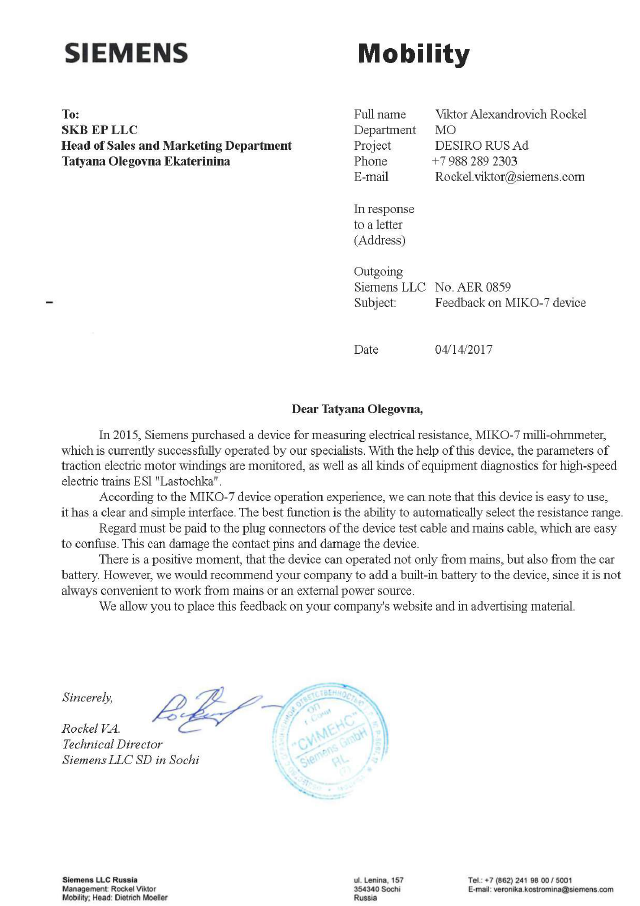

    SIEMENS, LLC

    In 2015, Siemens purchased a device for measuring electrical resistance, MIKO-7 milli-ohmmeter, which is currently successfully operated by our specialists. With the help of this device, the parameters of traction electric motor windings are monitored, as well as all kinds of equipment diagnostics for high-speed electric trains ESl "Lastochka".

    According to the MIKO-7 device operation experience, we can note that this device is easy to use, it has a clear and simple interface. The best function is the ability to automatically select the resistance range.

    Regard must be paid to the plug connectors of the device test cable and mains cable, which are easy to confuse. This can damage the contact pins and damage the device.

    There is a positive moment, that the device can operated not only from mains, but also from the car battery. However, we would recommend your company to add a built-in battery to the device, since it is not always convenient to work from mains or an external power source.

  • Open Original

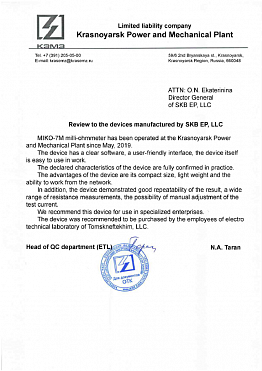

    Krasnoyarsk Power and Mechanical Plant, LLC

    MIKO-7M milli-ohmmeter has been operated at the Krasnoyarsk Power and Mechanical Plant since May, 2019.

    The device has a clear software, a user-friendly interface, the device itself is easy to use in work.

    The declared characteristics of the device are fully confirmed in practice.

    The advantages of the device are its compact size, light weight and the ability to work from the network.

    In addition, the device demonstrated good repeatability of the result, a wide range of resistance measurements, the possibility of manual adjustment of the test current.

    We recommend this device for use in specialized enterprises.

    The device was recommended to be purchased by the employees of electro technical laboratory of Tomskneftekhim, LLC.

  • Open Original

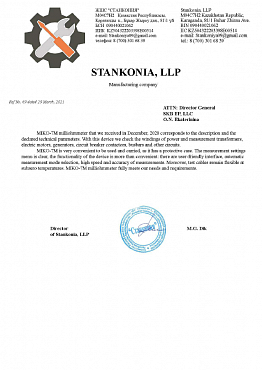

    Stankonia, LLP

    MIKO-7M milliohmmeter that we received in December, 2020 corresponds to the description and the declared technical parameters. With this device we check the windings of power and measurement transformers, electric motors, generators, circuit breaker contactors, busbars and other circuits.

    MIKO-7M is very convenient to be used and carried, as it has a protective case. The measurement settings menu is clear, the functionality of the device is more than convenient: there are user-friendly interface, automatic measurement mode selection, high speed and accuracy of measurements. Moreover, test cables remain flexible at subzero temperatures. MIKO-7M milliohmmeter fully meets our needs and requirements.

  • Open Original

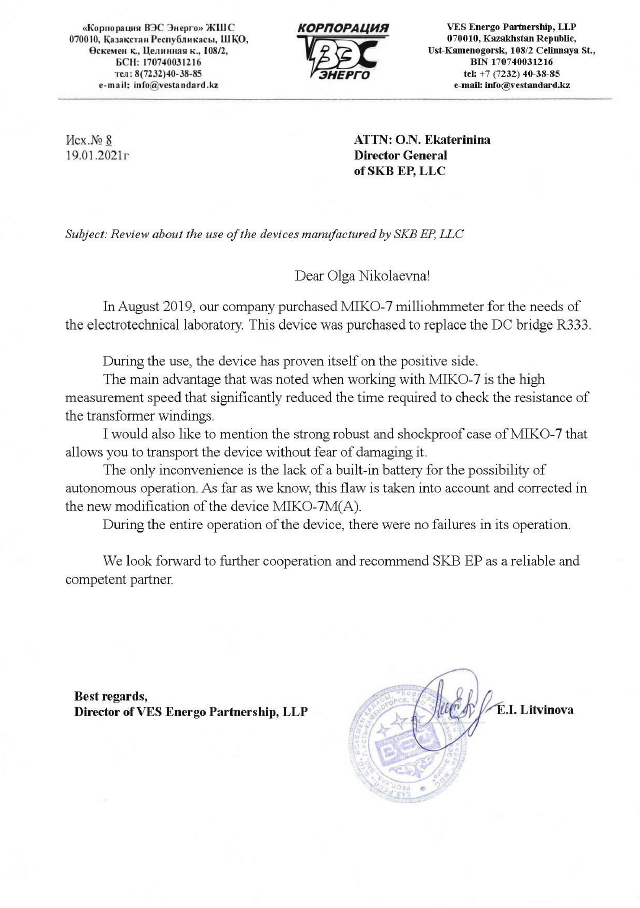

    VES Energo Partnership, LLP

    In August 2019, our company purchased MIKO-7 milliohmmeter for the needs of the electrotechnical laboratory. This device was purchased to replace the DC bridge R333.

    During the use, the device has proven itself on the positive side.

    The main advantage that was noted when working with MIKO-7 is the high measurement speed that significantly reduced the time required to check the resistance of the transformer windings.

    I would also like to mention the strong robust and shockproof case of MIKO-7 that allows you to transport the device without fear of damaging it.

    The only inconvenience is the lack of a built-in battery for the possibility of autonomous operation. As far as we know, this flaw is taken into account and corrected in the new modification of the device MIKO-7M(A).

    [Manufacturer note]: You are absolutely right. Modified milliohmmeter MIKO-7M(A) is equipped with a built-in battery. You can learn more about its characteristics on the corresponding page of our website.

    During the entire operation of the device, there were no failures in its operation.

    We look forward to further cooperation and recommend SKB EP as a reliable and competent partner.

  • Open Original

    Electrotechnical Laboratory of the Yaroslavl Power Supply Distance of the Northern Energy Supply Directorate

    To date, the following devices are in operation in the electrotechnical laboratory of the Yaroslavl Power Supply Distance of the Northern Energy Supply Directorate: MIKO-2.3, MIKO-7, PKR-1 and PKV/M7.

    These devices are used in conducting a comprehensive survey of electrical equipment of substations, such as power and converter transformers, high-voltage circuit breakers, and disconnectors. During the tests, SKB EP devices gave a good account of their reliability, stability of operation, and ease of use. When using the above-mentioned devices, total measurement time was reduced.

    The use of PKR-1 OLTC analyzer made it possible to more accurately determine the defects of the power transformer and tap changing device during a comprehensive check-up. The most frequently diagnosed damages are burning and adjustment of the contactor contacts of the tap changing device. The second most common defect is the burning of circuit breaker contacts. One of these defects was confirmed by the visual inspection.

    The use of MIKO-2.3 and MIKO-7 devices that are dedicated to the resistance measurement in inductive circuits gave the greatest reduce of measurement time. When using an AC bridge, one resistance measurement of the 110 kV transformer winding lasted about 1.5 minutes. When using MIKO-2.3 or MIKO-7 devices, the time spent on one measurement was reduced to 30 seconds.

    PKV/M7 circuit breaker analyzer is used for a comprehensive assessment of the state of high-voltage circuit breakers. As the main direction was chosen the assessment of SF6 circuit breakers of MKP-110 type. There is a big survey conducted of SF6 circuit breakers installed instead of oil circuit breakers. The use of PKV/M7 circuit breaker analyzer has reduced the time spent on the diagnostics of circuit breakers, and increased the accuracy of the data obtained. Previously, the measurements of the moving parts movement and compression were controlled by a ruler with oil drained from the circuit breaker tank. PKV/M7 circuit breaker analyzer is, first of all, more comfortable to use and has better accuracy comparing to the previously used methods.

    Having experience in the operation of SKB EP devices since 2016, we can definitely recommend the use of these devices for diagnostics of energy facilities.

  • Open Original

    Irkutsk HPP the branch of Irkutskenergo, PJSC

    Specialists of Irkutsk HPP (hydro power plant) have been using the SKB EP instruments for several years. The PKV/M7 instruments were used for measuring time characteristics of moving parts of such circuit breakers as ABB HGI-3 (13.8 kV), AREVA HGF-1012 (110 kV), SIEMENS 3AP1DT-145 (110 kV, 220 kV), and 3AP1DT-245 (220 kV); the MIKO-2.3 and MIKO-7 instruments are used on electric motors (0.4 kV) and disconnecting devices RVR(Z)-20/2000 M-U3, RGNP-110/2000-50UHL1, RDZ-1-110-2000UHL1, and RNDZ-220/2000U1 (13.8/110/220 kV).

    The PKV/M7 instrument meets all our needs in HV circuit breaker diagnosis. It provides convenient control of poles time difference using the PC software that shows defects in a circuit breaker long before they may cause a heavy failure.

    The MIKO-2.3 low / high resistance meter provides quick output of the results of measurements; it is a universal instrument that integrates four modes in one. The instrument is rather convenient and mobile.

    MIKO-7 milli-ohmmeter in the course of operation proved to be rather efficient. The instrument has a robust shock-proof housing that “saved” the instrument many times.

    The updated software of the milli-ohmmeter allowed us to save time and eliminate personnel’s mistakes. When we used a voltampermetre we had to carry several instruments, and a battery; their assembly took time, and measurements on a transformer took two hours minimum. Time of measurements using the MIKO-7 is halved or even makes one third of that.

    Benefits of the PKV/M7 include: information on the results of measurements and ability to operate the circuit breaker from the instrument. The MIKO-2.3 is rather mobile and operative; the MIKO-7 has a large set of functions and automatic mode of operation.

    During the SKB EP instruments operation on the main electric equipment of the plant we did not face any problems, the instruments worked properly, without failures. On the auxiliary equipment the problems with electric motors were timely revealed (inter-winding short circuit, break of windings end).

    Specialists of Irkutsk HPP recommend the PKV/M7, MIKO-2.3 and MIKO-7 to all the companies as they are cost-effective analogues of the instruments of foreign manufacture.

We use cookies. By continuing to browse the site, you agree to the processing of your personal data and the Privacy policy.
