HV circuit breaker analyzer PKV/M15 expert modification

Certificates

  • Safety Test Certificate IEC 61010-1:2001

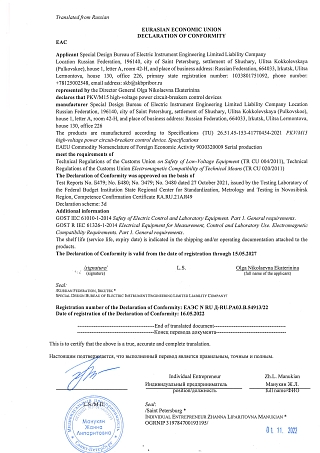

  • Declaration of Conformity of the Customs Union

Monitoring the technical condition of high-voltage circuit breakers up to 3 breaks

More

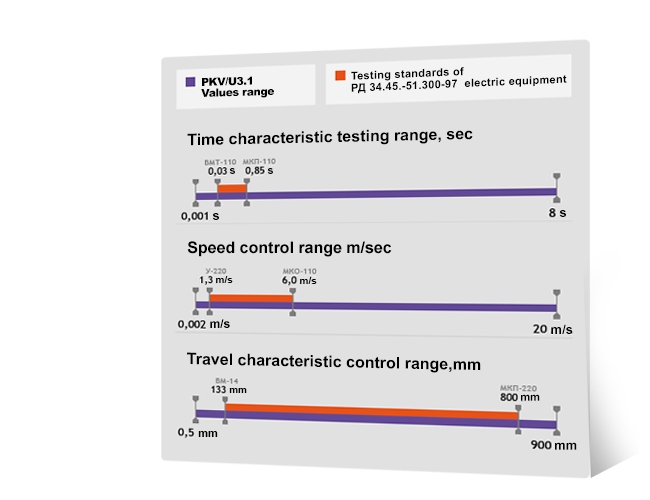

Sufficient measuring ranges for time (up to 10 s), speed (up to 20 m/s) and travel (up to 900 mm) intervals

More

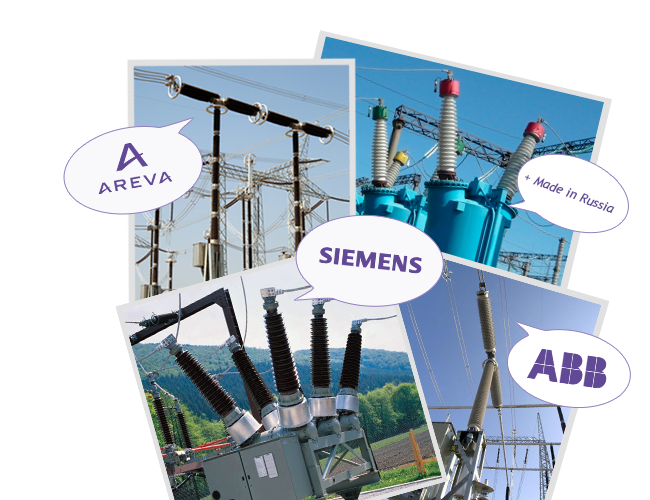

Diagnostic of circuit breakers of all types

More

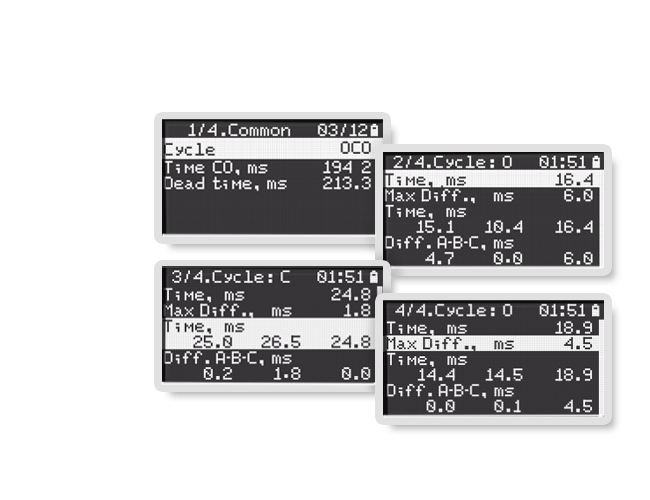

Table of measured values and automatic calculations

More

Special ways of measurement triggering

More

Monitoring of high-voltage circuit breakers in simple and complex cycles

More

Work with diagnostic results and data transfer on PC

More

Built-in battery, portability and autonomy

More

Two modifications and variable complete set

More

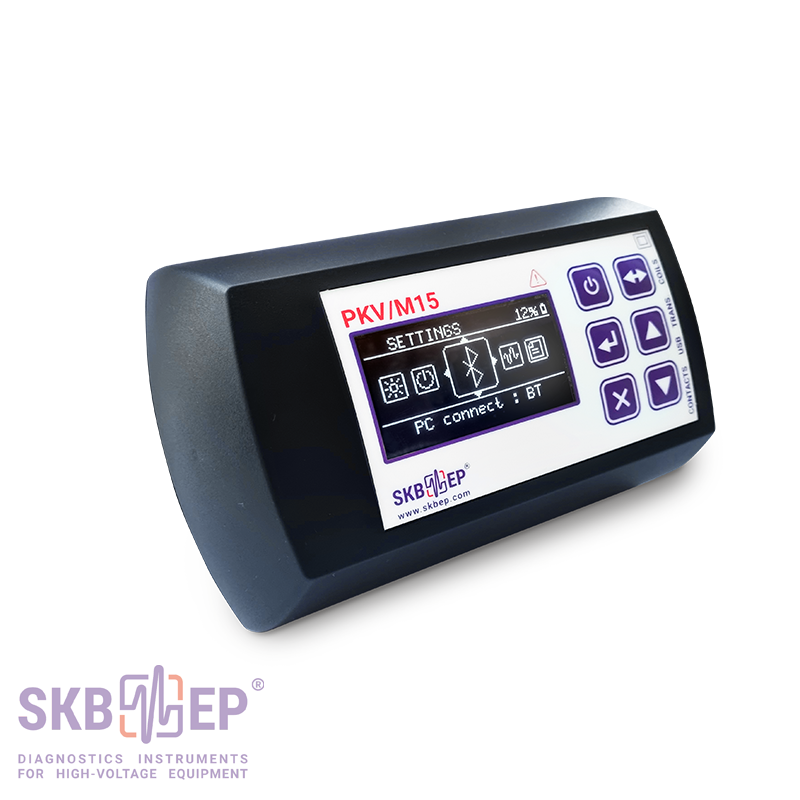

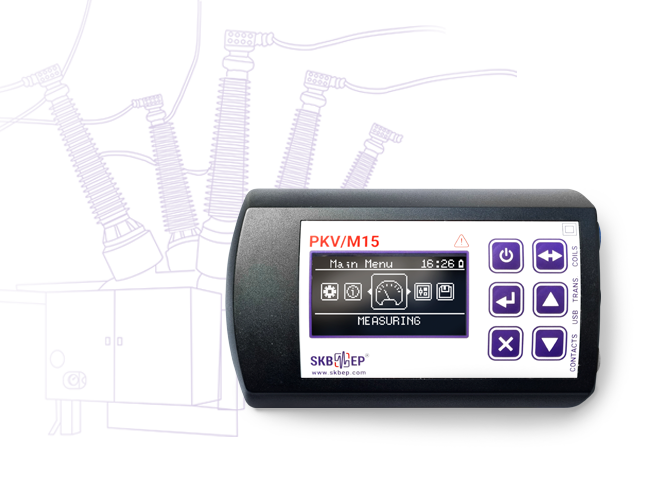

New development PKV/M15 IN EXPERT MODIFICATION is a portable device that is designed to measure parameters of time, travel and speed of moving parts of SF6, oil, electromagnetic and vacuum high-voltage circuit breakers up to 220 kV of all types (ABB, AREVA, ALSTOM, SIEMENS, etc.).

PKV/M15 combines the best of its predecessors, taking into account modern high-speed base in a new compact and portable case.

One of PKV/M15 predecessors has been on the market for more than 20 years, and is well-known as the affordable, simple and understandable instrument corresponding to the price-quality relationship. PKV/M15 preserves all the best characteristics of previous PKV group instruments developed by SKB EP. Moreover, there was made a simplification of weight and size parameters (165 x 100 x 60 mm, 1 kg) and the instrument was equipped with modern methods of interaction and data transmission. In addition, to carry out a full cycle of diagnostic work, a built-in power control module with a current up to 20 A was implemented in PKV/M15.

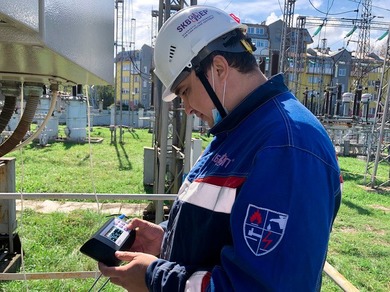

Of course, the application area of PKV/M15 is wide, as the instrument can be used at any electric facilities with high-voltage switching equipment.

There are a lot of peculiarities when taking measurements on circuit breakers. It is easy to register time parameters for any type of circuit breakers, but special transducers are required to obtain travel and speed parameters.

PKV/M15 provides control of time parameters in the range of 0.001 - 10,000 ms (10 s), which exceeds time measurement range of other PKV group devices. At the same time, incremental (discrete) DP12 and DP21 transducers are also supplied with the device to measure speed and travel parameters. These transducers differ in accuracy and ease of operation comparing to other types of transducers.

Transducers based on a potentiometer, that are often used in other devices, have a large error (up to ± 1%) even under normal conditions. For example, for the travel parameter of 900 mm transducers of that type would show ±9 mm error. At the same time, the accuracy of speed parameters measurement (DP12 transducer) is ±1 mm, and the accuracy of travel parameters measurement (DP21 transducer) is ±0.56°.

Presence of two types of transducers in the device's complete set allows you to take into account different types of drives and mechanism operation features of high-voltage circuit breakers, which expands application area of PKV/M15 IN EXPERT MODIFICATION.

PKV/M15 IN EXPERT MODIFICATION is complete with attachment devices for the installation of measuring transducers on all types of high-voltage circuit breakers (ABB, AREVA, ALSTOM, SIEMENS, Susol, etc.).

Standard complete set includes a set of attachment devices for installation of measuring transducers mainly on Russian-made circuit breakers. And in the additional complete set you may choose those attachment devices that may be necessary for you when diagnosing circuit breakers of foreign production.

If any specific attachment devices or measurement templates are required for your object, we are ready to participate in their development, manufacture and testing. Contact us, and together we will find the best solution!

Object diagnostic results are displayed as data with measured and calculated parameters for each cycle operation (when processing the measurement results of complex cycles, the device automatically divides the cycle into simple operations).

The results provide data such as:

  • travel parameters (full travel, travel to pole contacts closure, penetration, difference of operation in travel, bouncing in travel, overshot, rebound);
  • time parameters (circuit breaker make time, circuit breaker closing time, pole closing time, time difference of contacts action, bouncing in time);
  • speed parameters (closing speed).

In addition to tables with measured parameters, more detailed information about the state of the circuit breaker can be extracted from the recorded graphs, which should be operated in the functional mobile application of the device. The device registers:

  • dependence of speed on time and travel;
  • dependence of currents and voltages of electromagnets on time and travel;
  • diagrams of closing / opening processes of the contacts.

One of the significant differences between PKV/M15 and previous models of PKV-group instruments is the implementation of additional types of measurement triggering, which take into account various circumstances during diagnostic:

  • Triggering by main contacts closing is a universal way of measurement triggering, which facilitates the work and does not require additional settings (measurement time, signal duration, cycle type, triggering edge).
  • Dry contact triggering is one of the most popular modes among the personnel servicing circuit breakers manufactured by TAVRIDA ELECTRIC, where the Closing and Opening time is normalized by dry contact closing.

At the same time, usual measurement triggering modes are as well implemented:

  • Local triggering mode (internal) is used when connecting directly to the electrical circuit of a high-voltage circuit breaker. In this mode, the device switches the available operating test current.
  • Remote triggering mode (external) is used when connecting directly to the electrical circuit of a high-voltage circuit breaker. In this mode, the device waits for the voltage to appear.

PKV/M15 IN EXPERT MODIFICATION is equipped with a power control module for control of switching device drive of both direct and alternating current. Power control module allows you to perform both simple close (C) or open (O) operations, and complex cycles, including endurance tests.

Possible to perform complex cycles:

  • C
  • O
  • CO
  • OCO
  • OCO-C
  • OCO-CO

PKV/M15 IN EXPERT MODIFICATION is an independent device for diagnostic and presentation of obtained numerical data on the display.

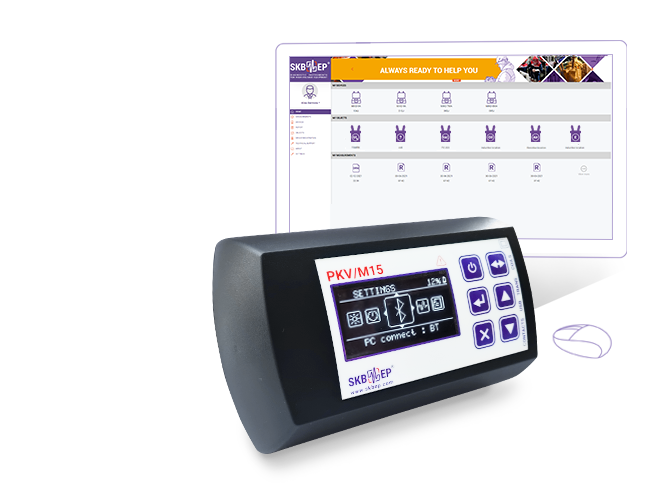

Measurement results can be transmitted via Bluetooth to a mobile device (phone, tablet) to a special software (software is currently under development).

Additionally, the device can be operated under the control of a mobile device via Bluetooth.

PKV/M15 is built into an ergonomic case, which facilitates interaction with the instrument. Weight and dimensional parameters (1 kg / 165 x 100 x 60 mm) rightfully allow us to call PKV/M15 a portable measuring instrument.

A built-in battery provides full autonomy. One charge of the device is enough for at least 4 hours of continuous operation.

Non-volatile memory of 32 MB is enough for a complete inspection of substation facilities.

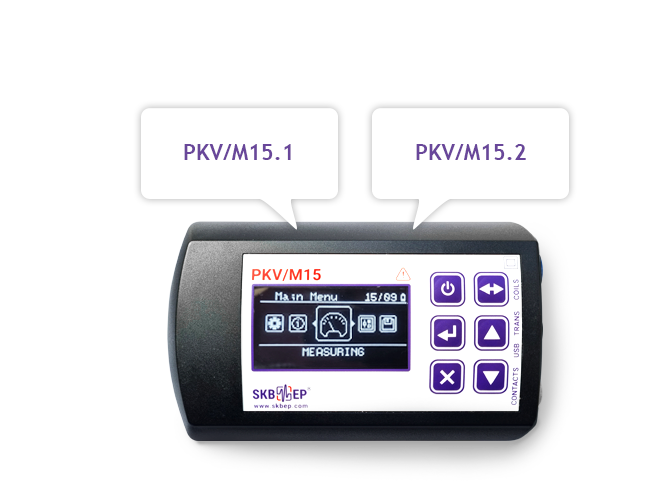

PKV/M15 is available in two versions (EXPERT and BASIC) that differ in measuring transducers and a set of complex cycles for high-voltage circuit breaker control.

EXPERT MODIFICATION BASIC MODIFICATION
Number of measuring transducers in the complete set 2 (DP12 and DP21) -
Controlled parameters time, travel and speed time
Power control module cycles C
O
CO
OCO
OCO-C
OCO-CO
C
O
Specifications Value
Measuring and recording range of time intervals 0.001 - 10,000 ms
Accuracy ±10-4[1 + tx] s,
where tx is the measured time interval
Range of linear movements measurement by DP12 transducer 1 - 900 mm
Accuracy ±1 mm
Range of angular movements measurement by DP21 transducer 0.09° - 360°
Accuracy ±0.56°
Range of moving speed measurement 0.002 - 20 m/s
Power control module cycles O, C, OC, OCO, OCO-C, OCO-CO
Maximum switching current ±20 А
PC communication (via cloud server) Bluetooth (optional)
Mobile devices communication Bluetooth (optional)
Display Monochrome, LED
128 x 64 pix
Power supply (built-in battery) Li-Ion battery
Battery charge time < 3 hours
Built-in battery capacity 3,000 mA/h

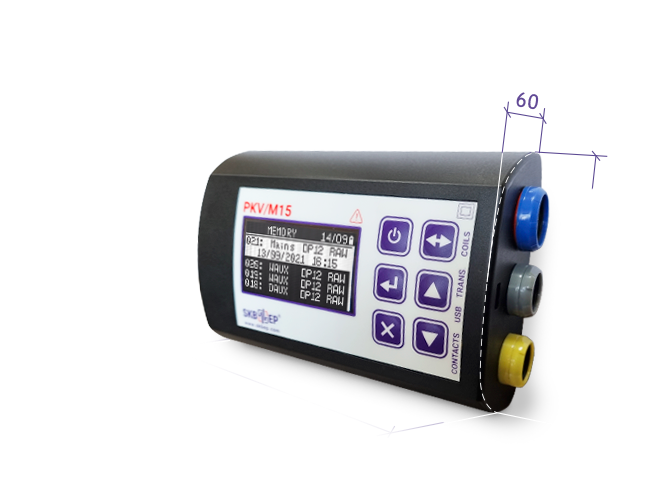

Dimensions 165 х 100 х 60 mm
Instrument weight < 1 kg
Environmental protection IP 54
Operating temperature from -20°C to +55°C
Warranty 2 years
Calibration interval 2 years
Interface language English, Chinese, French
User manual language English

Standard complete set

Photo Item, Index Application

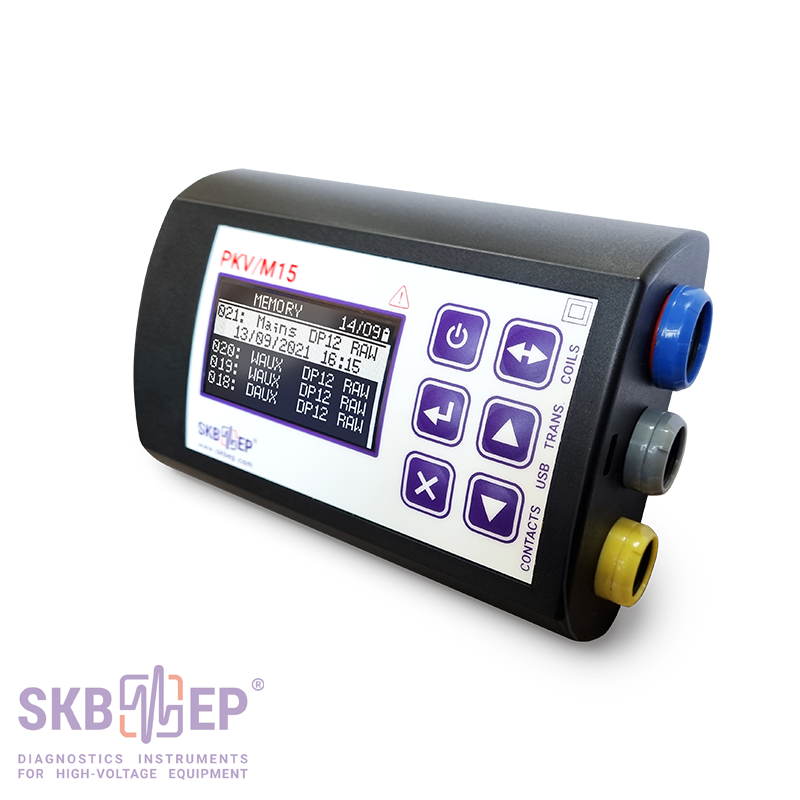

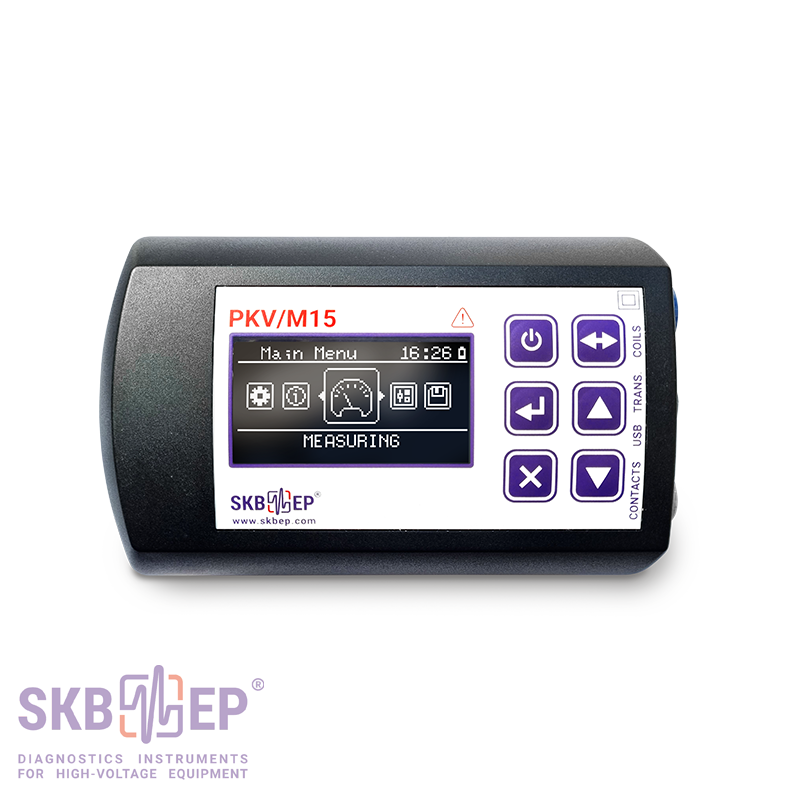

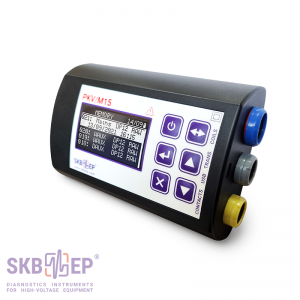

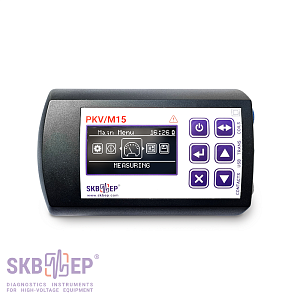

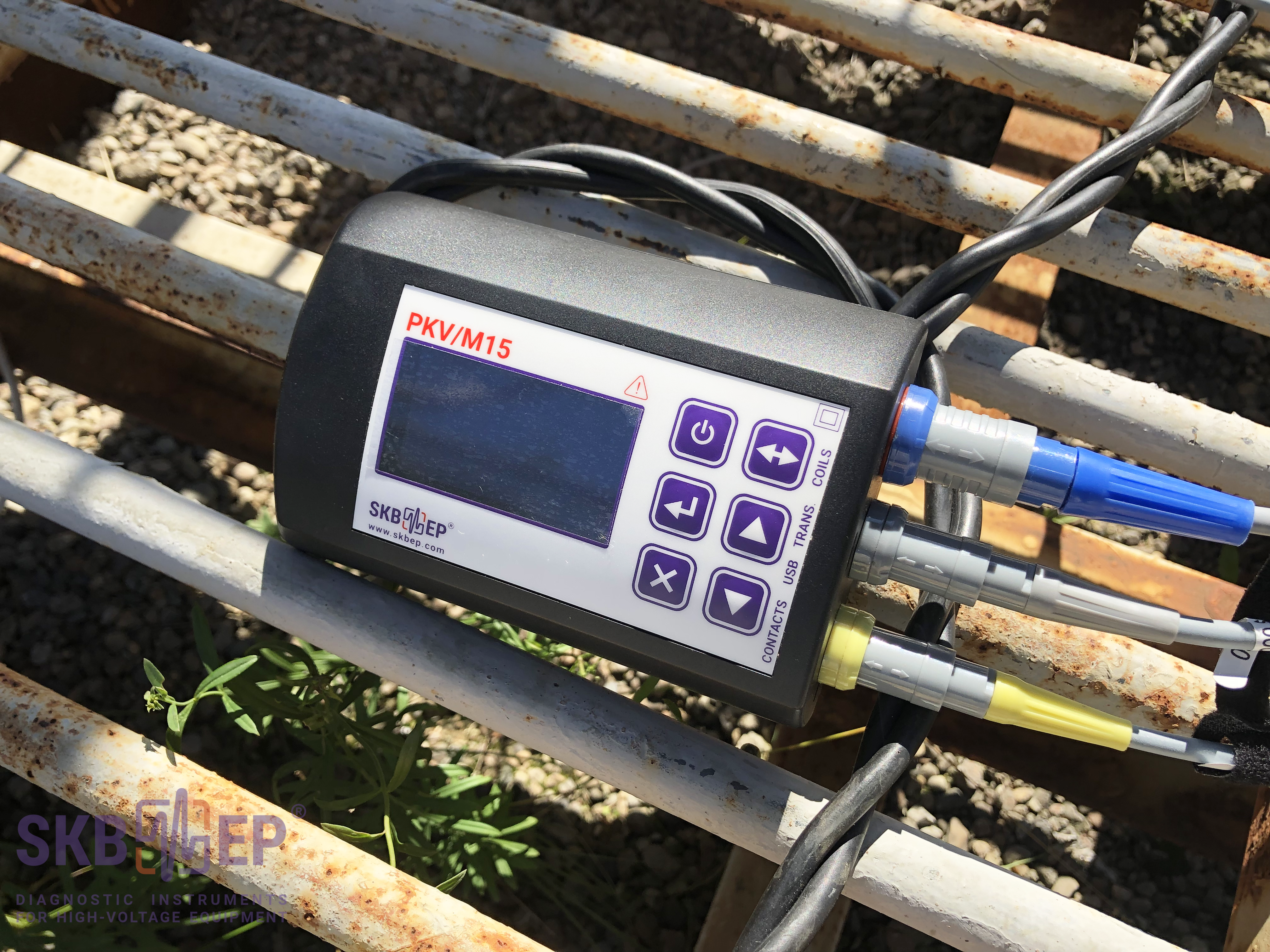

Main instrument PKV/M15
  • Main instrument PKV/M15
  • 053.00.00.000
  • Main instrument PKV/M15
  • 053.00.00.000

Instrument and additional documents: Calibration Certificate, User Manual, Log Book.

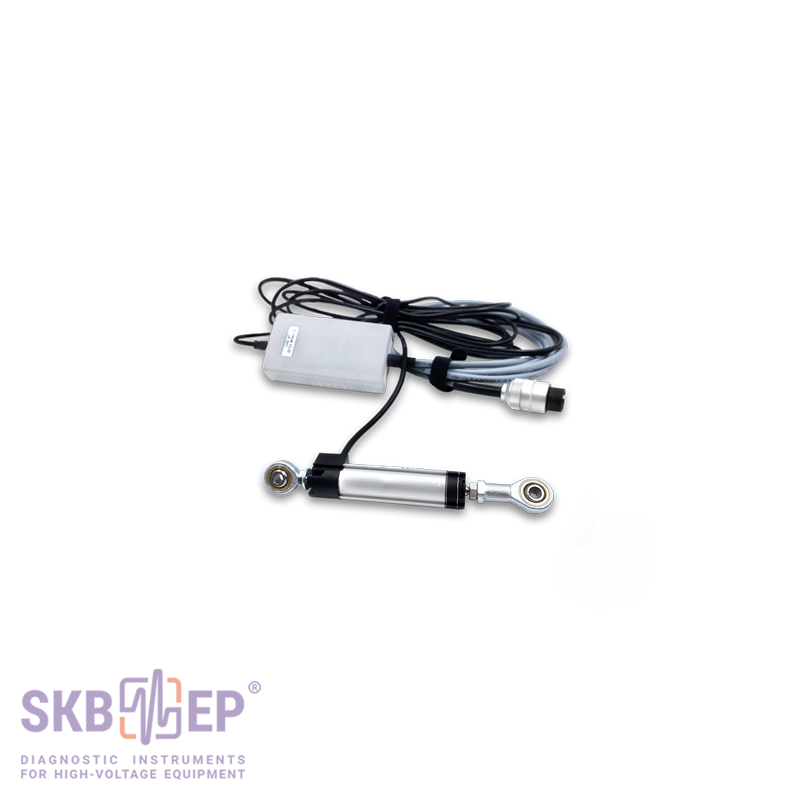

Linear movement transducer DP12
  • Linear movement transducer DP12
  • 012.00.00.000-02
  • Linear movement transducer DP12
  • 012.00.00.000-02

For measuring the movement of moving parts in high-voltage circuit breakers. Range – 1 - 900 mm. Resolution – 0.5 mm. To be used together with a measuring stick.

Measuring stick
  • Measuring stick
  • 012.03.00.000-02
  • Measuring stick
  • 012.03.00.000-02

Measuring stick in a case. To be used together with linear movement transducer DP12 (length – 700 mm // on order – 550 mm and 1,000 mm).

Angular movement transducer DP21
  • Angular movement transducer DP21
  • 009.00.00.000
  • Angular movement transducer DP21
  • 009.00.00.000

For measuring the angle of shaft turn in high-voltage circuit breakers. Measuring range – 0 - 360°. Resolution – 0.09°.

Attachment devices set to install transducers on high-voltage circuit breakers
  • Attachment devices set to install transducers on high-voltage circuit breakers
  • Attachment devices set to install transducers on high-voltage circuit breakers

For attachment of DP12 and DP21 transducers to various high-voltage circuit breakers of Russian manufacture (clamps, boards, connector adapters, etc.).

Transducer cable
  • Transducer cable
  • 053.08.00.000
  • Transducer cable
  • 053.08.00.000

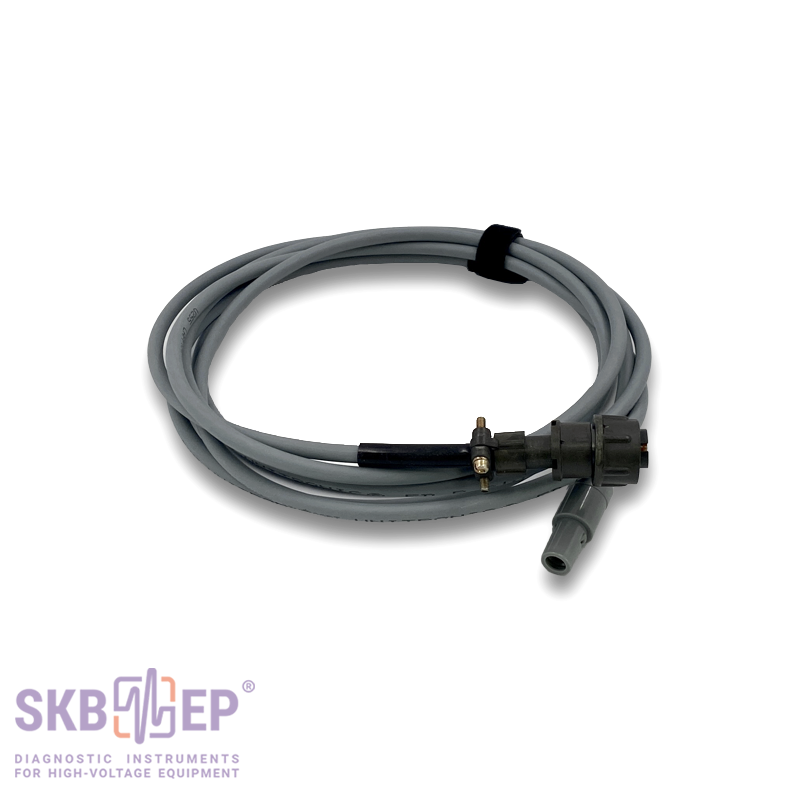

Cable for DP12 and DP21 transducers connection to the instrument. The cable has silicone insulation. L = 7 m.

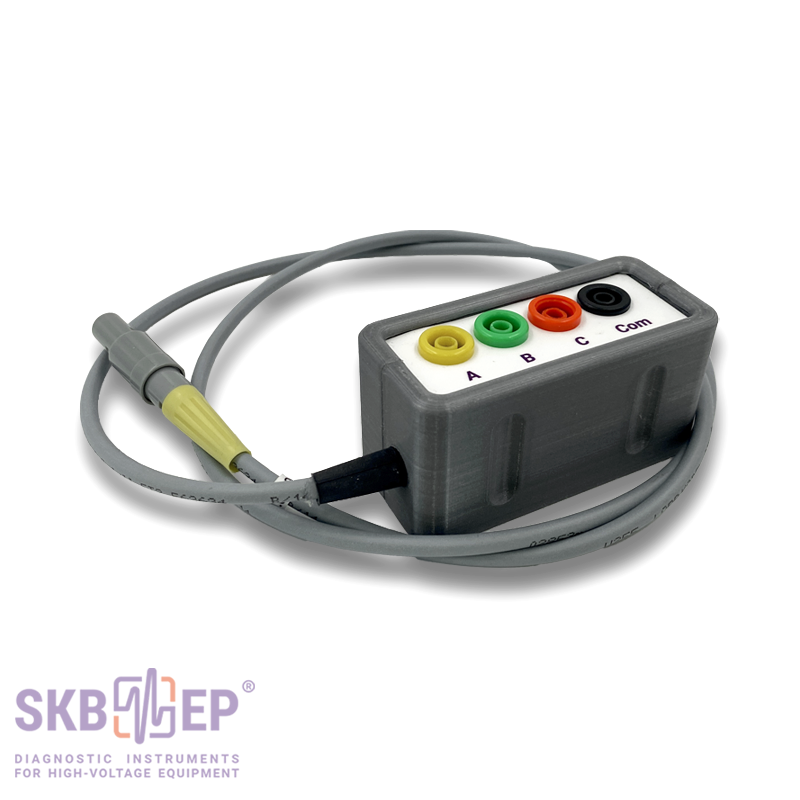

Contacts cable
  • Contacts cable
  • 053.04.00.000
  • Contacts cable
  • 053.04.00.000

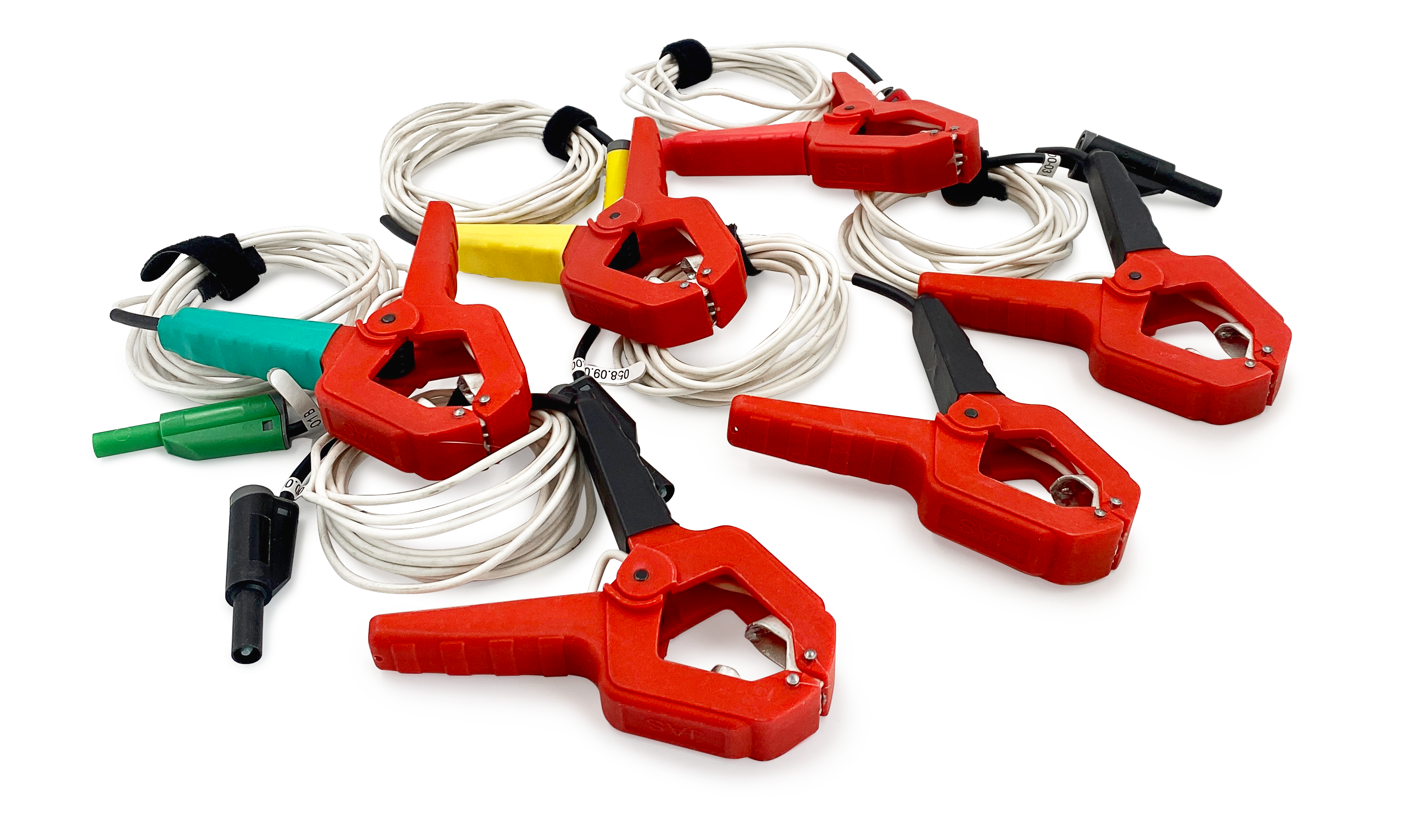

Cable for connection to HV circuit breaker poles. Equipped with crocodile clamps (3 pcs., ABC, jaw up to 50 mm), as well as Com.ABC type clamps (3 pcs., jaw up to 50 mm). L = 2,7 m.

Coils cable
  • Coils cable
  • 053.05.00.000
  • Coils cable
  • 053.05.00.000

For connecting to the high-voltage circuit breaker drive. Via this cable operating signals are sent and received, considering the settings of the instrument. Equipped with crocodile clamps (yellow, green, red, black) with a jaw up to 25 mm. L = 3 m.

Mains adapter
  • Mains adapter
  • Mains adapter

Mains adapter SGA12E05-USB Mean Well. For charging the instrument via Micro USB – USB A cable.

Micro USB-USB A cable
  • Micro USB-USB A cable
  • Micro USB-USB A cable

For the instrument charging. L = 1,0 m. I = 2 А.

Fastening belt
  • Fastening belt
  • 142.06.00.000
  • Fastening belt
  • 142.06.00.000

Belt to fasten the instrument on the circuit breaker (the instrument shouldn't be kept in hands during the measurement).

Attachment devices set kit
  • Attachment devices set kit
  • 126.06.02.000
  • Attachment devices set kit
  • 126.06.02.000

Attachment devices set kit

Tool bag
  • Tool bag
  • 126.06.00.000
  • Tool bag
  • 126.06.00.000

Convenient, robust, wear proof bag for transportation of cables, documentation and other accessories.

Additional complete set (on order)

Photo Item, Index Application
Measuring stick
  • Measuring stick
  • 012.03.00.000/-01
  • Measuring stick
  • 012.03.00.000/-01

Measuring stick in a case. To be used together with linear movement transducer DP12 (on order – 550 mm and 1,000 mm // in standard complete set – 700 mm).

Extension cable ABC
  • Extension cable ABC
  • 053.06.00.000
    053.06.00.000-01
    053.06.00.000-02
  • Extension cable ABC
  • 053.06.00.000
    053.06.00.000-01
    053.06.00.000-02

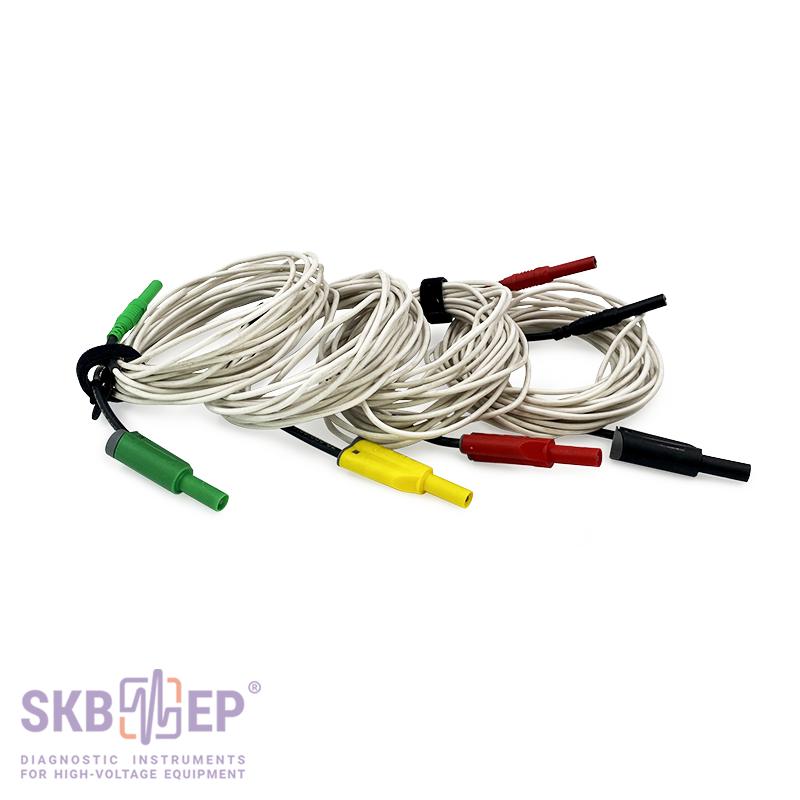

To be used with the 'contacts' cable for extension of ABC cables (3 pcs.). L = 5 m.

Cable Com.ABC
  • Cable Com.ABC
  • 053.07.00.000
  • Cable Com.ABC
  • 053.07.00.000

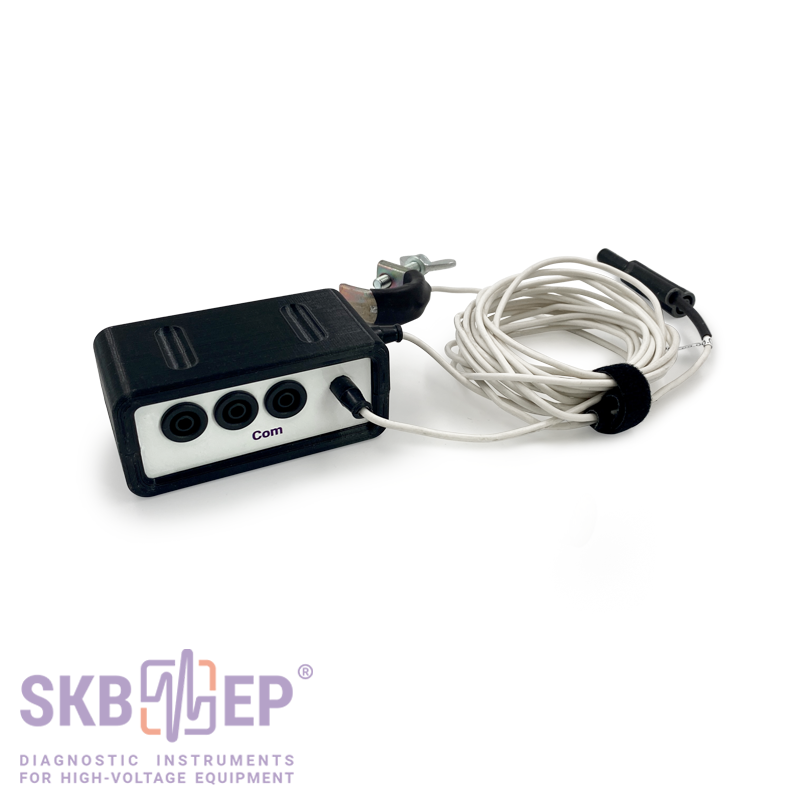

To be used with the 'contacts' cable for extension of cable with Com.ABC clamps (1 pcs.). L = 2 m.

Rheostat transducer DP32
  • Rheostat transducer DP32
  • 026.22.00.000
  • Rheostat transducer DP32
  • 026.22.00.000

For measuring the linear displacement of vacuum circuit breakers with an open insulating housing in the range of 0.2 – 20 mm. Accuracy is ±0.2 mm.

Attachment devices set
  • Attachment devices set
  • Attachment devices set

For attachment of DP21 transducer to various high-voltage circuit breakers Siemens, ABB, Areva, etc.).

Manipulating rod
  • Manipulating rod
  • 010.41.00.000
    010.41.00.000-01
    010.41.00.000-02
  • Manipulating rod
  • 010.41.00.000
    010.41.00.000-01
    010.41.00.000-02

Manipulating rod is designed for test cables connection from the ground or from the tank cover to the bushings of high-voltage circuit breakers, and to the structural elements of high-voltage disconnecting switches and earthing devices, without the use of ladders or elevated platforms.

The manipulating rod is completed with special extension cables. There is a Kelvin clamp with current and potential contacts to connect to the object on one side, and a contact pad on the other side. The device test cable is connected to the contact pad from the ground or a tank cover.

Manipulating rod extension cable is made according to a four-wire (Kelvin) scheme with the test current capacity of 100 A in the presence of a good contact.
