HV circuit breaker analyzer PKV/M15 basic modification

Certificates

  • Safety Test Certificate IEC 61010-1:2001

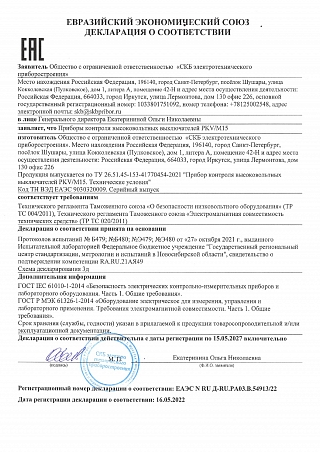

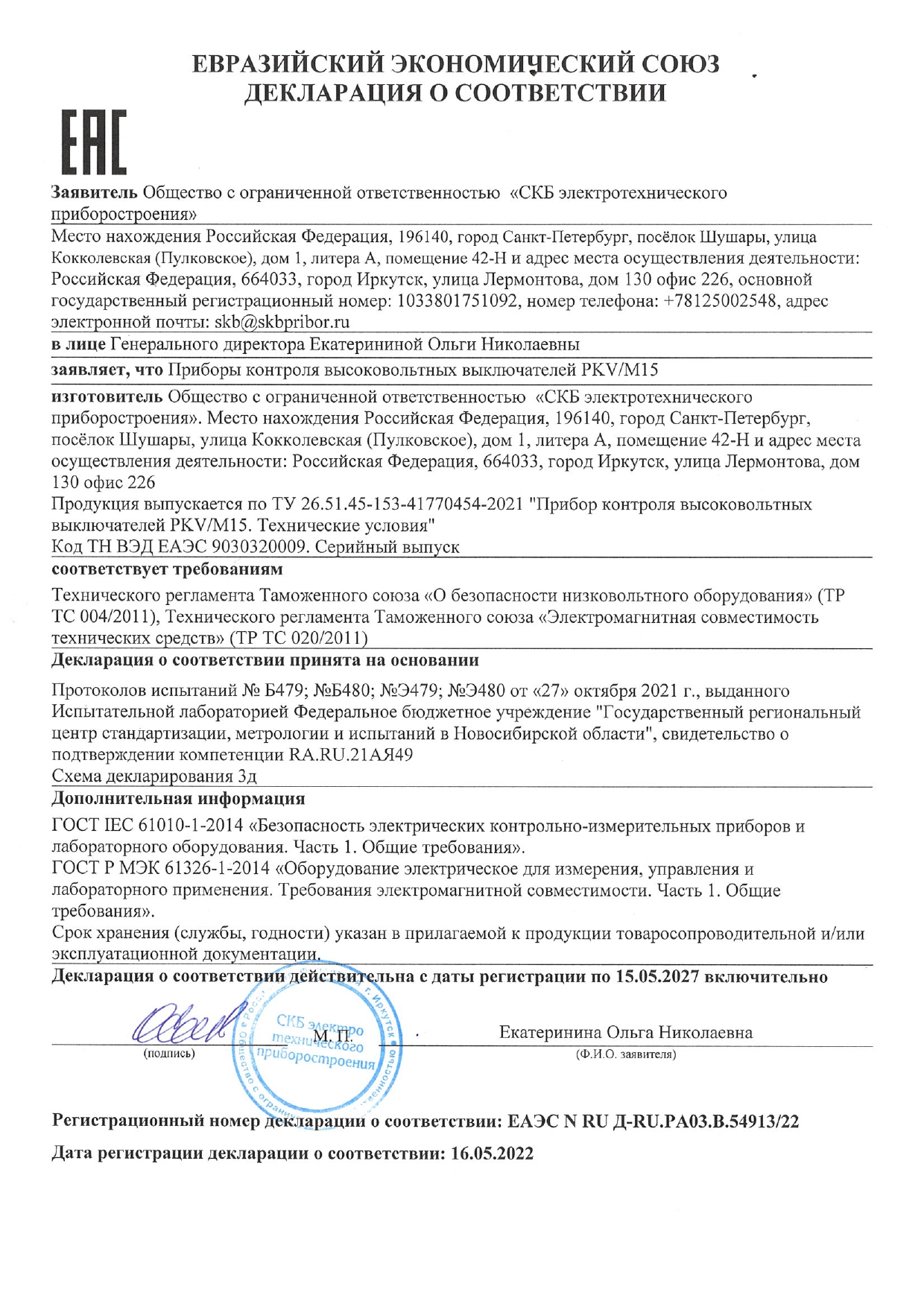

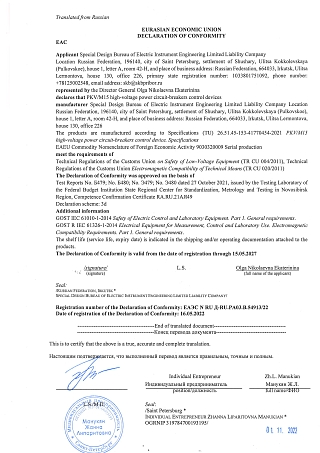

  • Declaration of Conformity of the Customs Union

Monitoring the technical condition of high-voltage circuit breakers up to 3 breaks

More

Sufficient measuring ranges for time (up to 10 s) are covering the monitoring needs of the most of existing circuit breakers

More

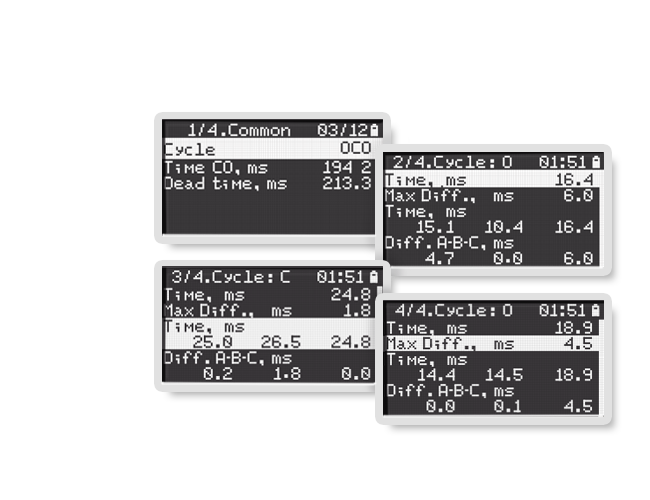

Table of measured values and automatic calculations

More

Special ways of measurement triggering

More

Monitoring of high-voltage circuit breakers in simple operations

More

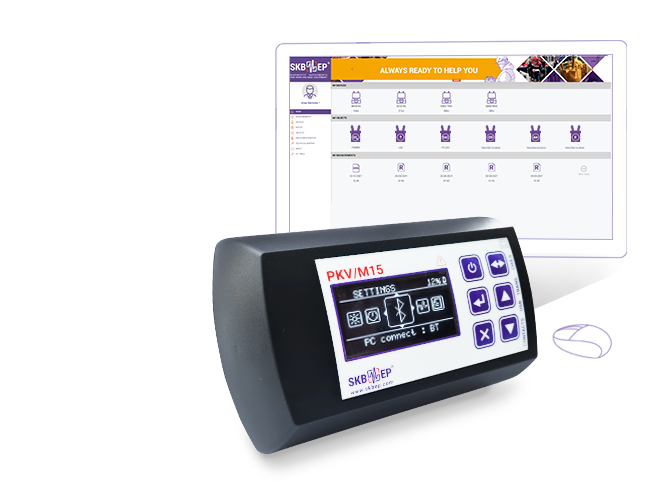

Work with diagnostic results and data transfer to PC

More

Built-in battery, portability and autonomy

More

Two modifications and variable complete set

More

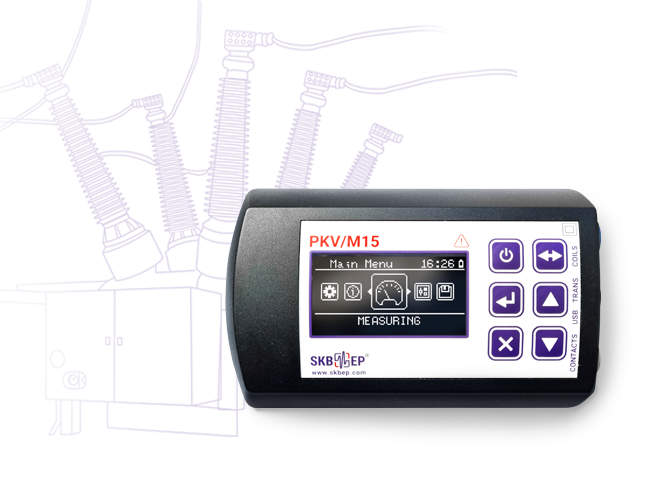

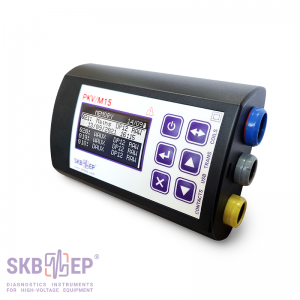

NEW DEVELOPMENT PKV/M15 IN BASIC MODIFICATION is a portable device that is designed to measure parameters of time of SF6, oil, electromagnetic and vacuum high-voltage circuit breakers up to 220 kV of all types (ABB, AREVA, ALSTOM, SIEMENS, etc.).

PKV/M15 combines the best of its predecessors, taking into account modern high-speed base in a new compact and portable case.

In accordance with instructions of many vacuum and SF6 circuit breakers manufacturers, it is required to control only time parameters during operation. For some models of circuit breakers the speed of contacts movement can be normalized depending on the time of the travel control section passing. The circuit breakers of that type are equipped with a special device (which is included into the kit of spare parts and accessories) to control the travel time for the control section (isolated section) during the dynamic closing and opening. In this case, a special device is connected to the channel of PKV/M15 in basic modification, which automatically determines the travel time for the isolated section.

At some brands of vacuum circuit breakers parameters of moving contacts, insulating traction, contact clamping, contact wear are normalized for static positions of the circuit breaker, and are defined by means of the measuring tool, that is specified in the user manual of the circuit breaker (caliper, ruler, etc.). Control of these parameters by standard means does not cause difficulties during circuit breaker operation, using the instrument PKV/M15 in the basic modification, and it is not necessary to control these parameters in dynamics.

Object diagnostic results are displayed as data with measured and calculated parameters for each cycle operation (when processing the measurement results of complex cycles, the device automatically divides the cycle into simple operations).

The results provide data on time parameters such as circuit breaker make time, circuit breaker closing time, pole closing time, time difference of contacts action, bouncing in time.

One of the significant differences between PKV/M15 and previous models of PKV-group instruments is implementation of additional types of measurement triggering, which take into account various circumstances during diagnostic:

  • Triggering by main contacts closing is a universal way of measurement triggering, which facilitates the work and does not require additional settings (measurement time, signal duration, cycle type, triggering edge).
  • Dry contact triggering is one of the most popular modes among the personnel servicing circuit breakers manufactured by TAVRIDA ELECTRIC, where the Closing and Opening time is normalized by dry contact closing.

At the same time, usual measurement triggering modes are as well implemented:

  • Local triggering mode (internal) is used when connecting directly to the electrical circuit of a high-voltage circuit breaker. In this mode, the device switches the available operating test current.
  • Remote triggering mode (external) is used when connecting directly to the electrical circuit of a high-voltage circuit breaker. In this mode, the device waits for the voltage to appear.

PKV/M15 IN BASIC MODIFICATION is equipped with a power control module for control of switching device drive of both direct and alternating current. Power control module allows you to perform simple operations (in order to perform complex cycles consider PKV/M15 IN EXPERT MODIFICATION).

PKV/M15 IN BASIC MODIFICATION is an independent instrument for diagnostic and presentation of obtained numerical data on the display.

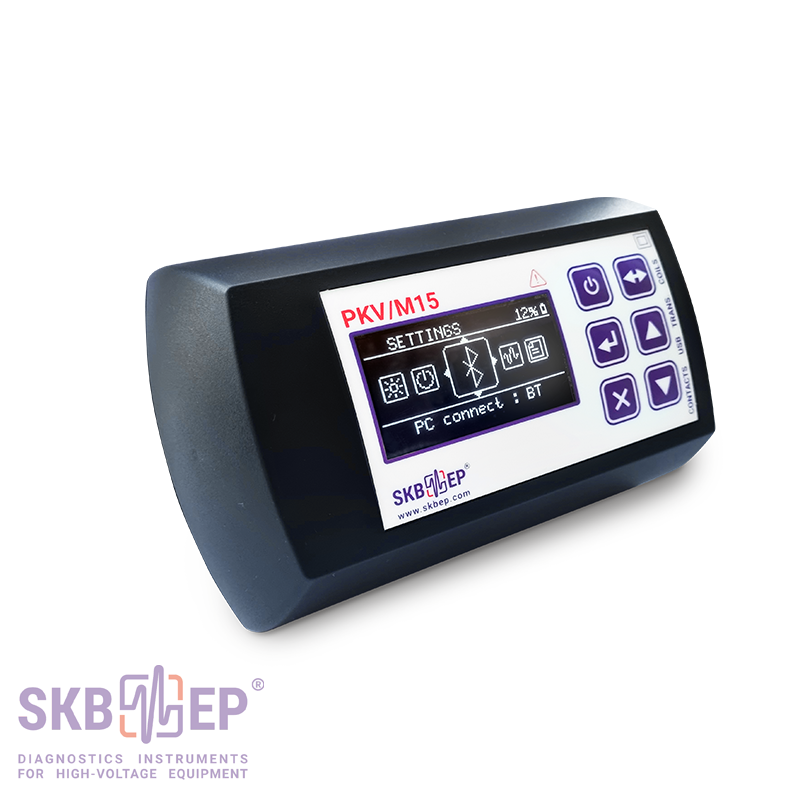

Measurement results can be transmitted via Bluetooth to a mobile device (phone, tablet) to a special software (software is currently under development).

Additionally, the device can be operated under the control of a mobile device via Bluetooth.

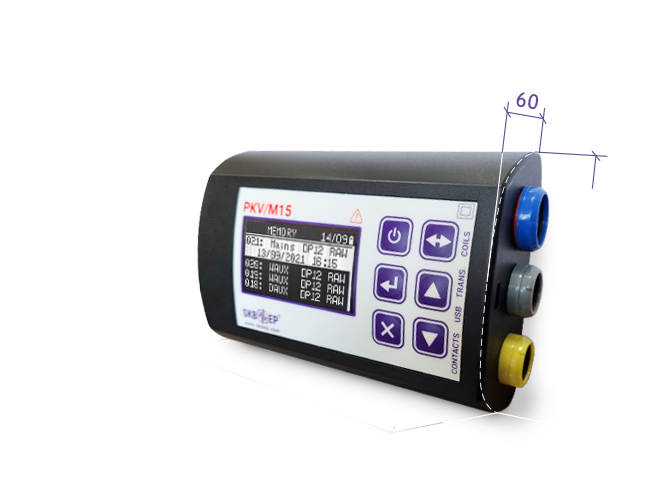

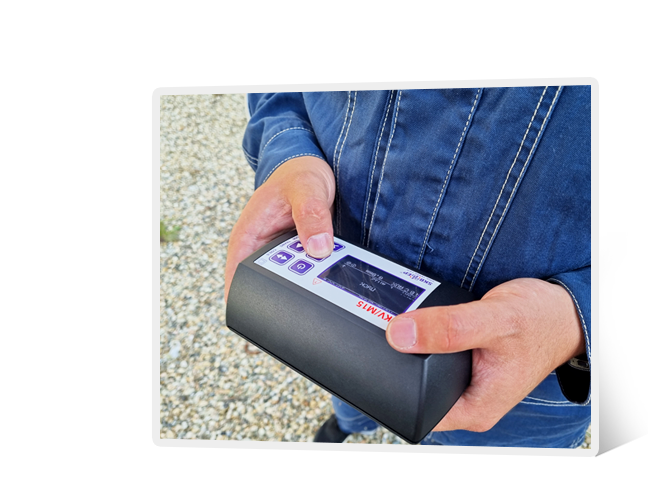

PKV/M15 is built into an ergonomic case, which facilitates interaction with the instrument. Weight and dimensional parameters (1 kg / 165 x 100 x 60 mm) rightfully allow us to call PKV/M15 a portable measuring instrument.

A built-in battery provides full autonomy. One charge of the device is enough for at least 4 hours of continuous operation.

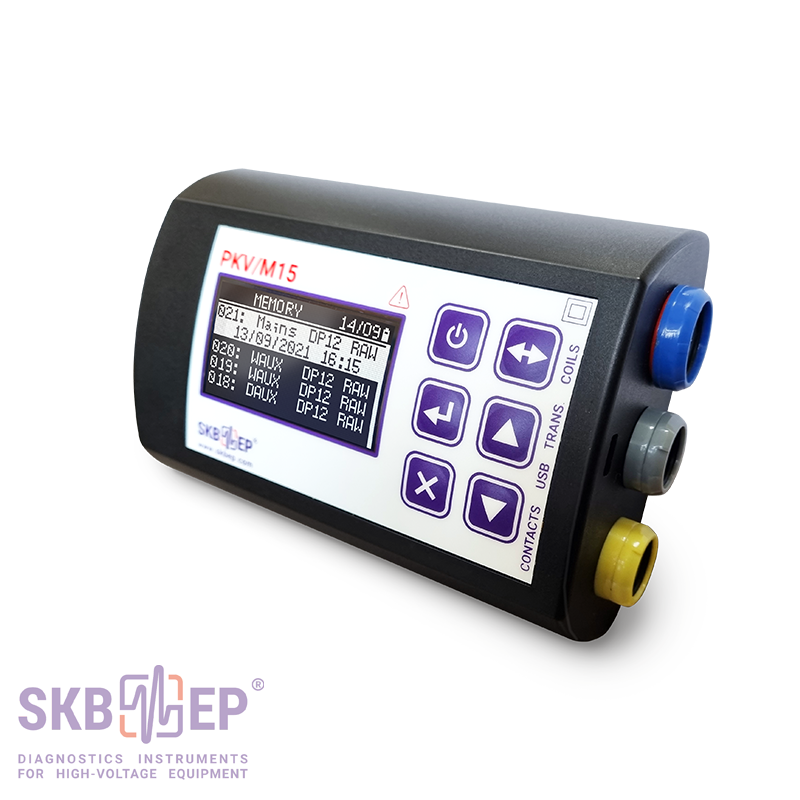

Non-volatile memory of 32 MB is enough for a complete inspection of substation facilities.

PKV/M15 is available in two versions (BASIC and EXPERT) that differ in measuring transducers and a set of complex cycles for high-voltage circuit breaker control.

BASIC MODIFICATION EXPERT MODIFICATION
Number of measuring transducers in the complete set - 2 (DP12 and DP21)
Controlled parameters time time, travel and speed
Power control module cycles C
O
C
O
CO
OCO
OCO-C
OCO-CO

It is always possible to upgrade PKV/M15 in BASIC MODIFICATION to an EXPERT MODIFICATION. For this purpose, you need to order a special activation code as well as measuring transducers with a special attachment devices set kit.

Specifications Value
Measuring and recording range of time intervals 0.001 - 10,000 ms
Accuracy ±10-4[1 + tx] s,
where tx is the measured time interval
Power control module cycles O, C
Maximum switching current ±20 А
PC communication (via cloud server) Bluetooth (optional)
Mobile devices communication (under development) Bluetooth (optional)
Display Monochrome, LED
128 x 64 pix
Power supply (built-in battery) Li-Ion battery
Battery charge time < 3 hours
Built-in battery capacity 3,000 mA/h
Dimensions 165 х 100 х 60 mm
Instrument weight < 1 kg
Environmental protection IP 54
Operating temperature from -20°C to +55°C
Warranty 2 years
Calibration interval 2 years
Interface language English, Chinese, French
User manual language English

Standard complete set

Photo Item, Index Application

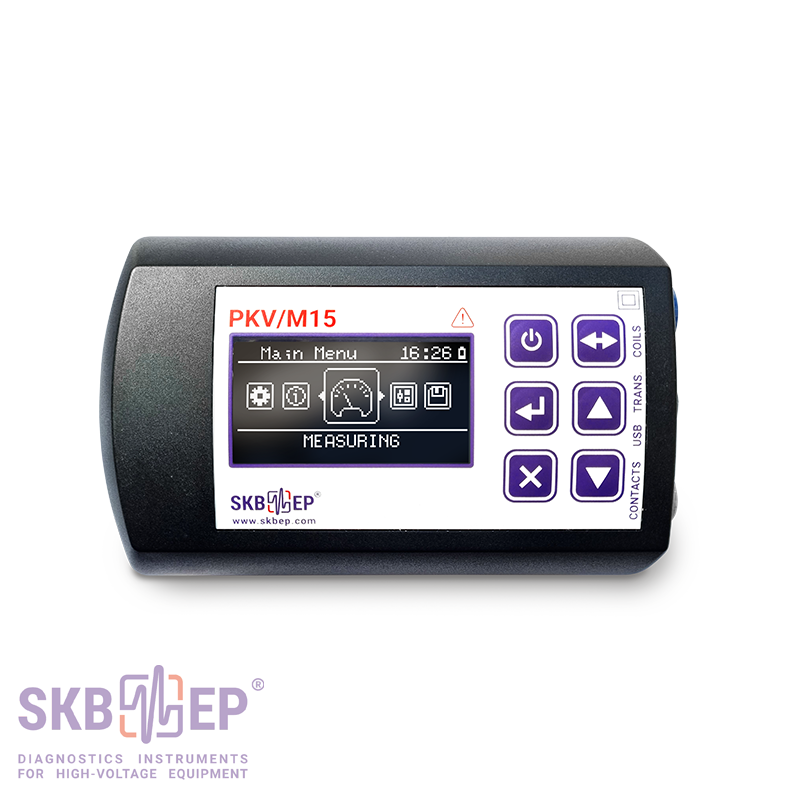

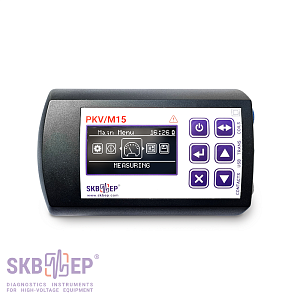

Main instrument PKV/M15
  • Main instrument PKV/M15
  • 053.00.00.000
  • Main instrument PKV/M15
  • 053.00.00.000

Instrument and additional documents: Calibration Certificate, User Manual, Log Book.

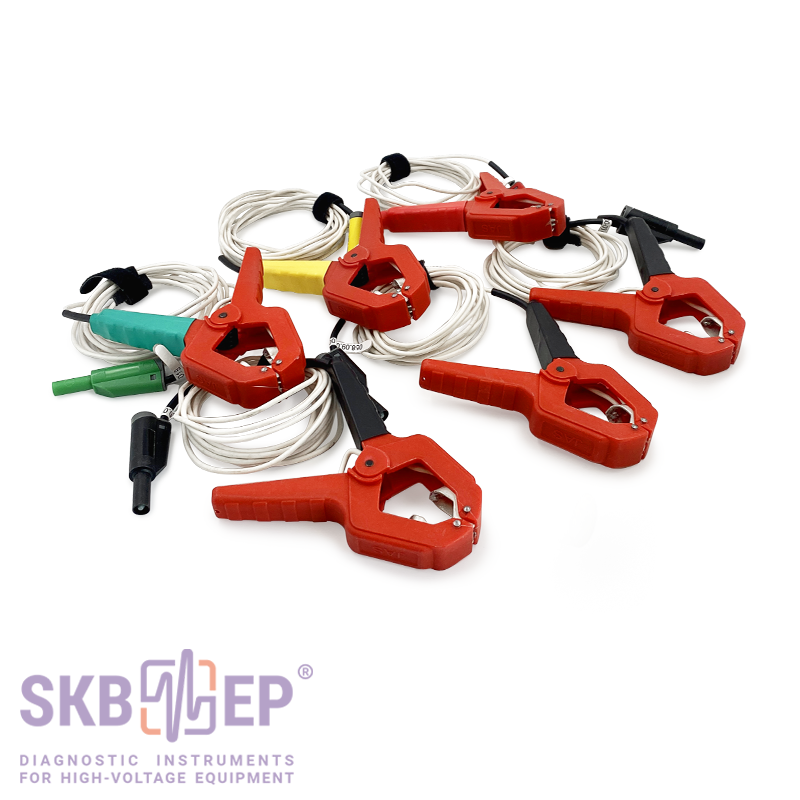

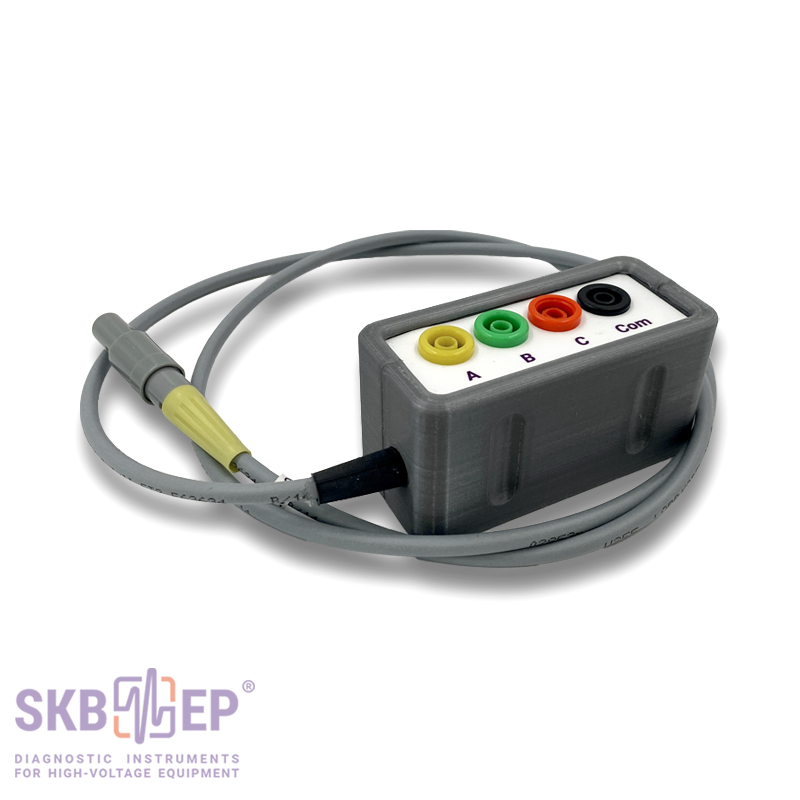

Contacts cable
  • Contacts cable
  • 053.04.00.000
  • Contacts cable
  • 053.04.00.000

Cable for connection to HV circuit breaker poles. Equipped with crocodile clamps (3 pcs., ABC, jaw up to 50 mm), as well as Com.ABC type clamps (3 pcs., jaw up to 50 mm). L = 2,7 m.

Coils cable
  • Coils cable
  • 053.05.00.000
  • Coils cable
  • 053.05.00.000

For connecting to the high-voltage circuit breaker drive. Via this cable operating signals are sent and received, considering the settings of the instrument. Equipped with crocodile clamps (yellow, green, red, black) with a jaw up to 25 mm. L = 3 m.

Mains adapter
  • Mains adapter
  • Mains adapter

Mains adapter SGA12E05-USB Mean Well. For charging the instrument via Micro USB – USB A cable.

Micro USB-USB A cable
  • Micro USB-USB A cable
  • Micro USB-USB A cable

For the instrument charging. L = 1,0 m. I = 2 А.

Fastening belt
  • Fastening belt
  • 142.06.00.000
  • Fastening belt
  • 142.06.00.000

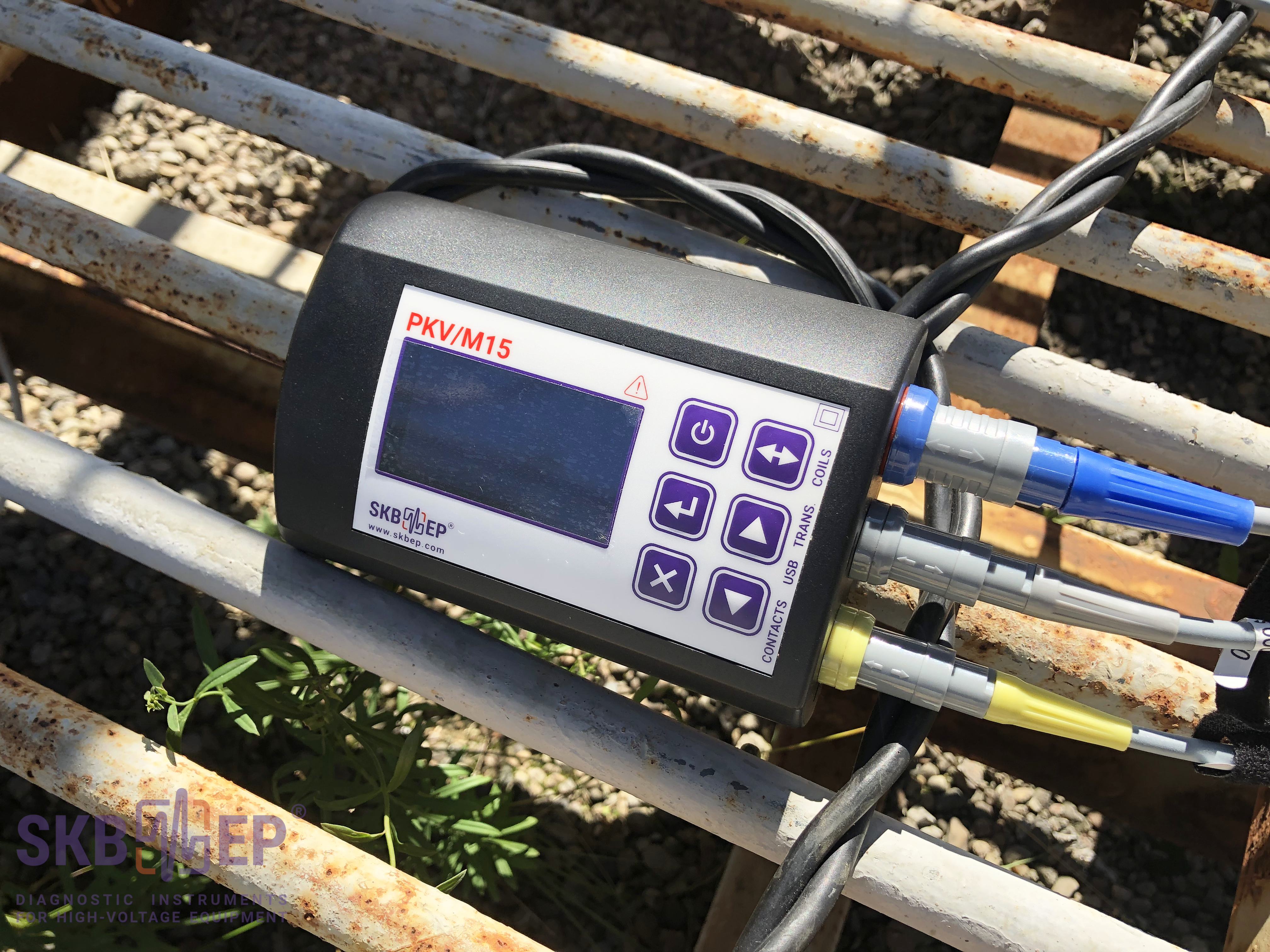

Belt to fasten the instrument on the circuit breaker (the instrument shouldn't be kept in hands during the measurement).

Tool bag
  • Tool bag
  • 126.06.00.000
  • Tool bag
  • 126.06.00.000

Convenient, robust, wear proof bag for transportation of cables, documentation and other accessories.

Additional complete set (on order)

Photo Item, Index Application

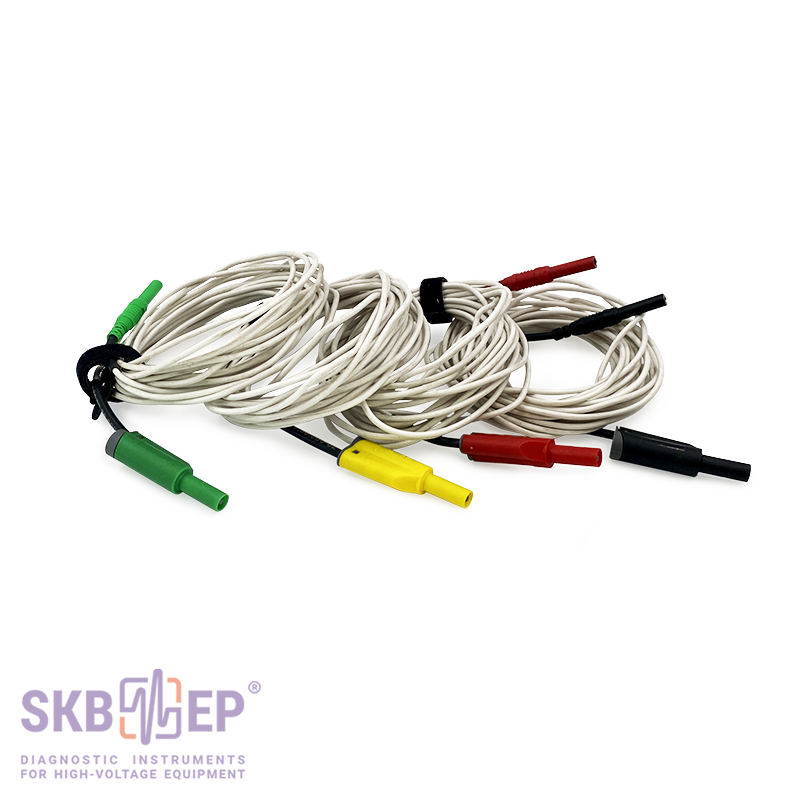

Extension cable ABC
  • Extension cable ABC
  • 053.06.00.000
    053.06.00.000-01
    053.06.00.000-02
  • Extension cable ABC
  • 053.06.00.000
    053.06.00.000-01
    053.06.00.000-02

To be used with the 'contacts' cable for extension of ABC cables (3 pcs.). L = 5 m.

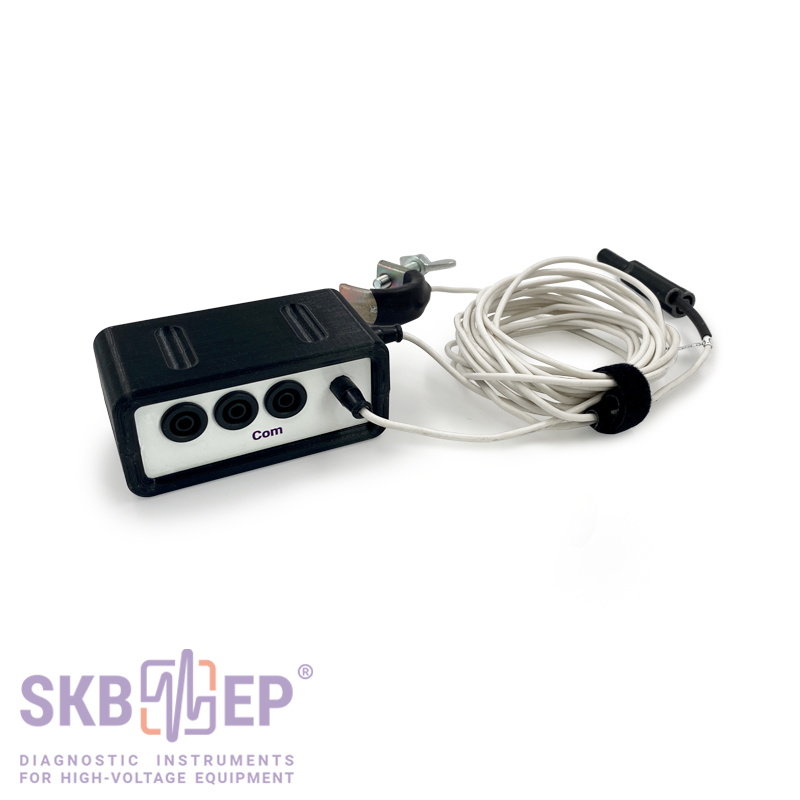

Cable Com.ABC
  • Cable Com.ABC
  • 053.07.00.000
  • Cable Com.ABC
  • 053.07.00.000

To be used with the 'contacts' cable for extension of cable with Com.ABC clamps (1 pcs.). L = 2 m.

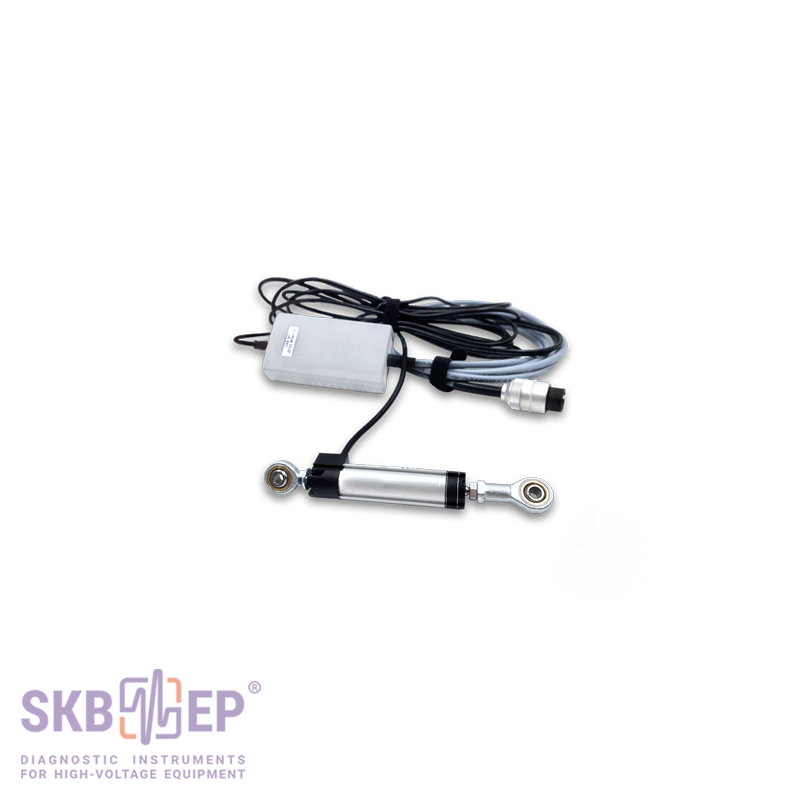

Rheostat transducer DP32
  • Rheostat transducer DP32
  • 026.22.00.000
  • Rheostat transducer DP32
  • 026.22.00.000

For measuring the linear displacement of vacuum circuit breakers with an open insulating housing in the range of 0.2 – 20 mm. Accuracy is ±0.2 mm.

Manipulating rod
  • Manipulating rod
  • 010.41.00.000
    010.41.00.000-01
    010.41.00.000-02
  • Manipulating rod
  • 010.41.00.000
    010.41.00.000-01
    010.41.00.000-02

Manipulating rod is designed for test cables connection from the ground or from the tank cover to the bushings of high-voltage circuit breakers, and to the structural elements of high-voltage disconnecting switches and earthing devices, without the use of ladders or elevated platforms.

The manipulating rod is completed with special extension cables. There is a Kelvin clamp with current and potential contacts to connect to the object on one side, and a contact pad on the other side. The device test cable is connected to the contact pad from the ground or a tank cover.

Manipulating rod extension cable is made according to a four-wire (Kelvin) scheme with the test current capacity of 100 A in the presence of a good contact.

Upgrading to expert modification (on order)

Photo Item, Index Application
Activation code for modification upgrade
  • Activation code for modification upgrade
  • Activation code for modification upgrade

Linear movement transducer DP12
  • Linear movement transducer DP12
  • 012.00.00.000-02
  • Linear movement transducer DP12
  • 012.00.00.000-02

For measuring the movement of moving parts in high-voltage circuit breakers. Range – 1 - 900 mm. Resolution – 0.5 mm. To be used together with a measuring stick.

Measuring stick
  • Measuring stick
  • 012.03.00.000/-01/-02
  • Measuring stick
  • 012.03.00.000/-01/-02

Measuring stick in a case. To be used together with linear movement transducer DP12 (length on order 700 mm // 550 mm or 1,000 mm).

Angular movement transducer DP21
  • Angular movement transducer DP21
  • 009.00.00.000
  • Angular movement transducer DP21
  • 009.00.00.000

For measuring the angle of shaft turn in high-voltage circuit breakers. Measuring range – 0 - 360°. Resolution – 0.09°.

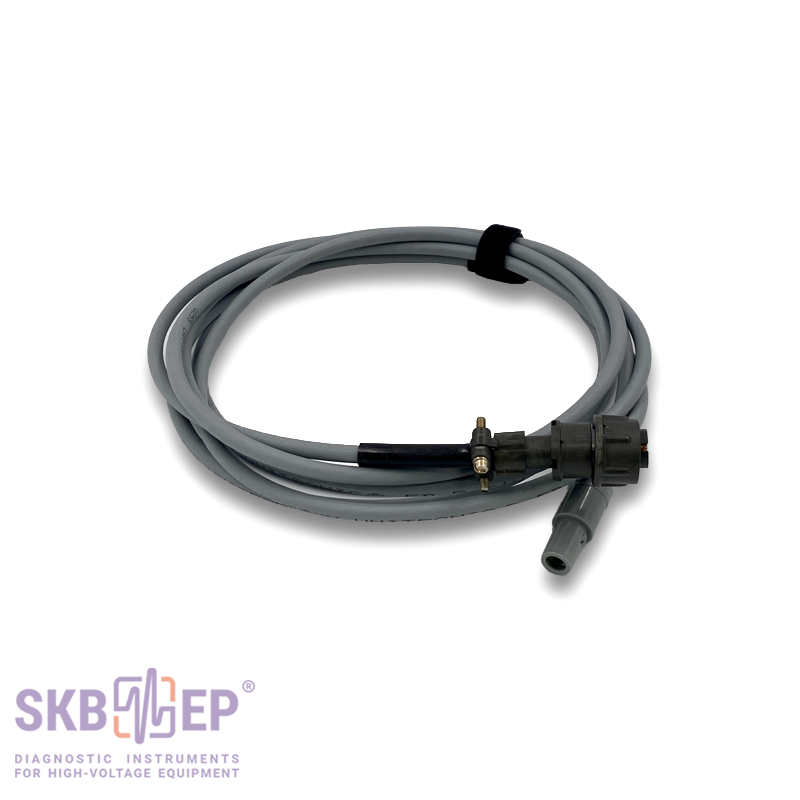

Transducer cable
  • Transducer cable
  • 053.08.00.000
  • Transducer cable
  • 053.08.00.000

Cable for DP12 and DP21 transducers connection to the instrument. The cable has silicone insulation. L = 7 m.

Attachment devices set to install transducers on high-voltage circuit breakers
  • Attachment devices set to install transducers on high-voltage circuit breakers
  • Attachment devices set to install transducers on high-voltage circuit breakers

For attachment of DP12 and DP21 transducers to various high-voltage circuit breakers of Russian manufacture (clamps, boards, connector adapters, etc.).

Attachment devices set for SF6 circuit breakers
  • Attachment devices set for SF6 circuit breakers
  • Attachment devices set for SF6 circuit breakers

For attachment of DP21 transducer to various high-voltage circuit breakers Siemens, ABB, Areva, etc.).

Official reviews from customers based on the results of operating SKB EP instruments are available upon request. Please, fill out the form on the website.
